straw pellet machine
Product Introduction

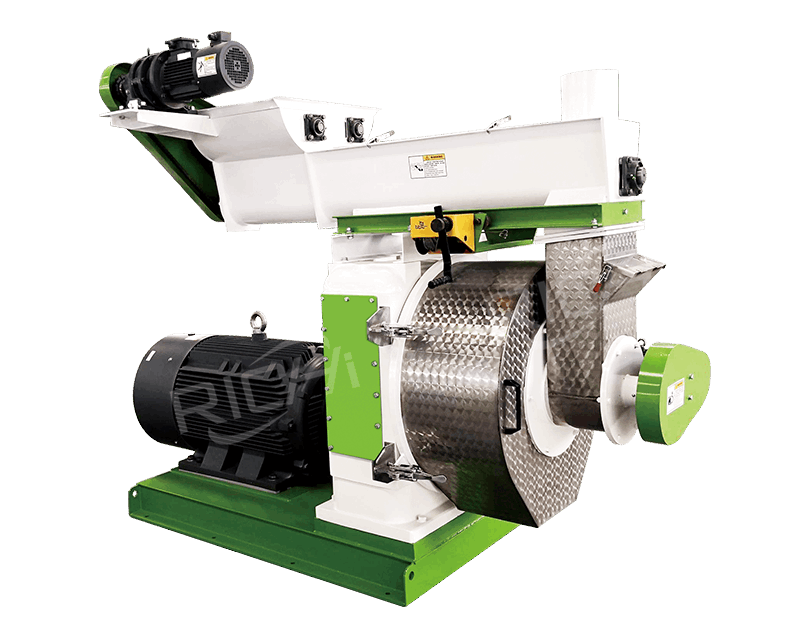

Straw Pellet Machine for Sale
Capacity: 0.2-8 T/H
In the past, people just burned or threw away crop stalks – a waste of resources and bad for the environment. Our straw pellet machine gives those agricultural leftovers a second life. The straw gets squeezed hard between a ring die and rollers, and out comes dense, stable pellets with a good heating value.
Whether you want roughage for cattle and sheep, or clean-burning biomass fuel, our straw pellet machine can get you there. It uses proven ring-die technology. It works great with pure straw, but you can also mix in soybean meal, corn flour, or other ingredients – adjust the formula however you like to meet feed or fuel specs.This machine hooks up easily to crushers, coolers, and baggers, so you can set up a full straw pellet line.
Key Components of Straw Pellet Machine
Straw is pretty light. So getting it from the hopper into pellets isn’t just about feeding – you also have to deal with the challenges of pressing high-fiber material. How does RICHI’s straw pellet machine solve these problems? Once you look at the main parts, you’ll probably get the idea.

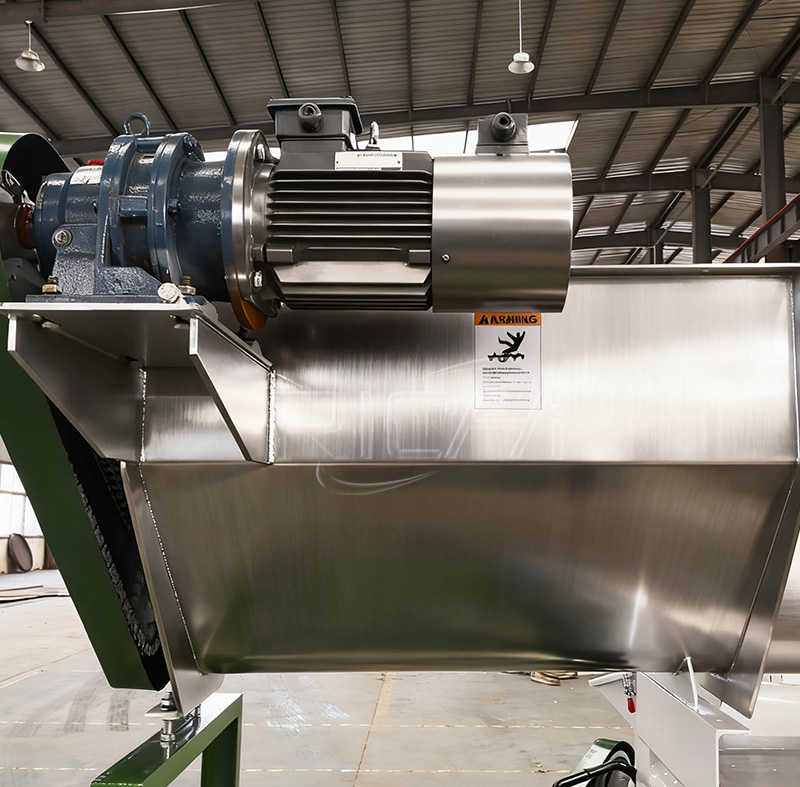

Feed Inlet
Straw from various crops is relatively light, and using a conventional straw pellet machine can easily cause blockages at the inlet.
To avoid this, we have equipped the straw pellet mill with a variable frequency feeder featuring an arch-breaking device. This feeder adjusts the feeding speed to prevent the straw pellet machine from overloading or idling, and works in conjunction with the counter-rotating double rollers to thoroughly break up the straw, allowing it to enter easily without arching or bridging.

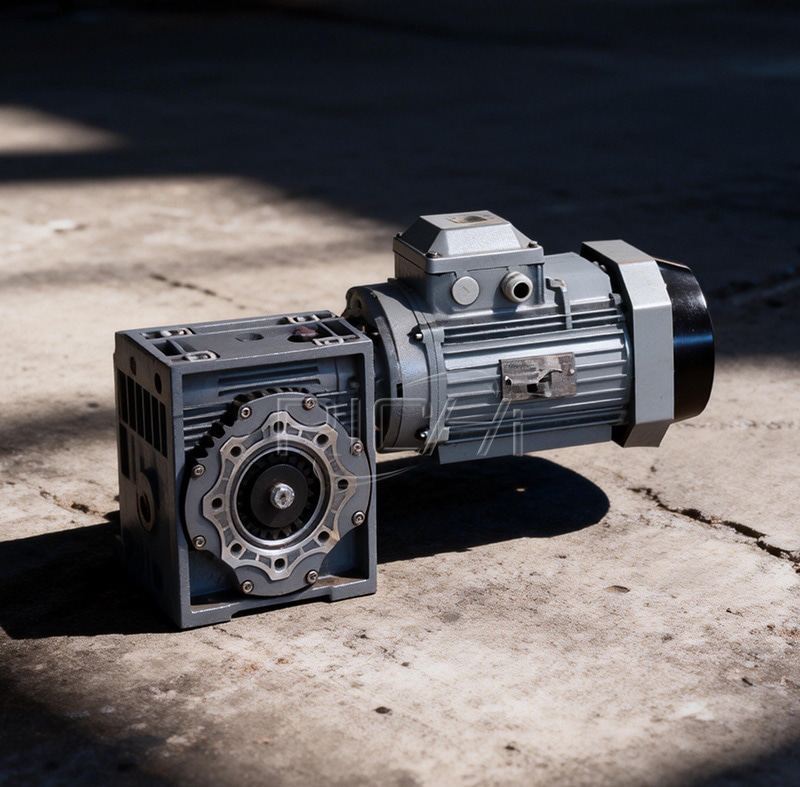

Forced Feeder
The special design at the feed inlet alone isn’t enough. To ensure the straw material doesn’t get stuck or bridge before entering the pelleting chamber, we’ve added an extra layer of protection: a forced feeder.
When the straw material enters through the feed inlet, if it can’t fall due to fiber entanglement, the forced feeder will activate, using mechanical force to push the material into the pelleting chamber, completely eliminating the risk of blockage.

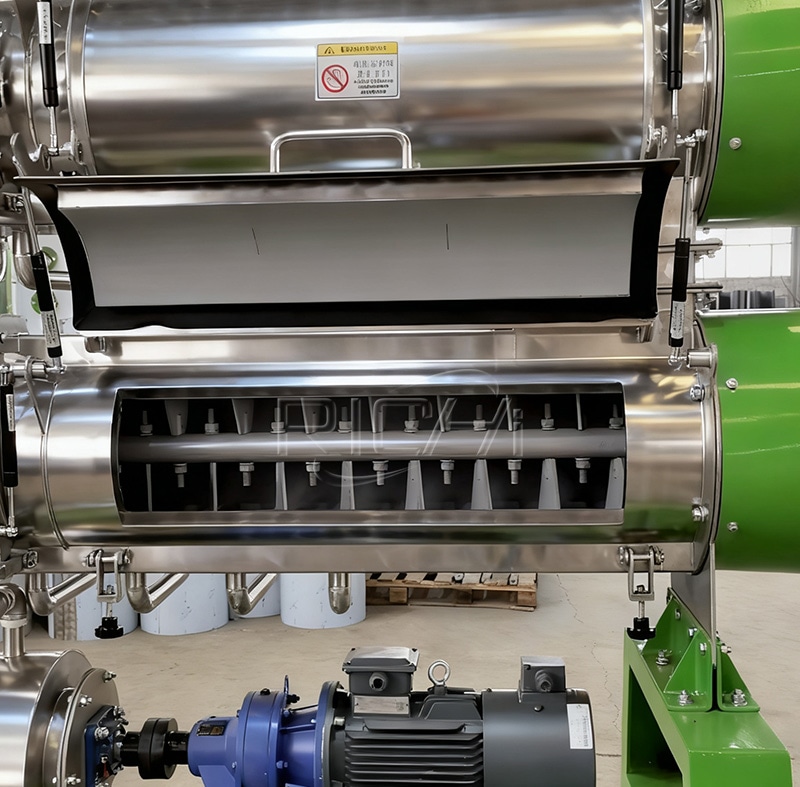

Conditioner
If you want to use a straw pellet machine to make feed for ruminants such as cattle and sheep, we can also install a conditioner on the machine to mature and gelatinize the raw materials.
The conditioner of the RICHI straw pellet making machine is made of 304 stainless steel and features dual-shaft paddles. These paddles scatter the material, facilitating thorough mixing with the steam injected into the conditioner. This softens the straw fibers, giving them high plasticity and making them easier to shape during subsequent pressing.
Pelletizing Chamber
This is the heart of the entire pellet mill, containing several key components.
Pressure Roller: Our pressure rollers are specifically designed for biomass. Their surface has a toothed texture that allows them to fit tightly against the ring die, firmly gripping the smooth fibrous material and compressing it thoroughly.
Ring Die: A ring with many small holes of the same diameter. After being conditioned at high temperature, the straw is squeezed into these holes by the pressure roller, ultimately forming the pellets.
Cutter: The formed material is extruded from the die holes, forming long, strip-shaped pellets. The cutter cuts these pellets into uniform lengths, making them appear more regular.
Straw Pellet Machine‘s Parameters
Our straw pellet machine can be used to make both fuel pellets and feed pellets for ruminants, fulfilling multiple purposes with a single machine. Below are the relevant parameters for this machine, which you can use as a reference when selecting one. If you are still unsure how to choose the most suitable one for your needs, please feel free to contact us.
| Model | CZLH320 | CZLH350 | CZLH420 | CZLH520 | CZLH678 | CZLH768 |
| Main Motor Power (kW) | 22 | 37 | 90 | 132 | 200 | 250 |
| Anti-Bridge Feeder Power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4-12 | |||||
| Output (T/H) | 0.5-0.6 | 1.0-1.2 | 1.8-2.0 | 2.8-3.0 | 4-5 | 6-8 |
Note: The output numbers above are for a full production line under ideal conditions. In the real world, your actual output will depend on your raw materials and their moisture content – so don’t treat these as hard guarantees.
Straw Pellet Machine’s Videos
Learning about our straw pellet machine from text alone might be a bit dry, but don’t worry, here are two videos for you to watch, which will give you a more intuitive understanding of our product. If you also need the same machine shown in the videos, please feel free to inquire.

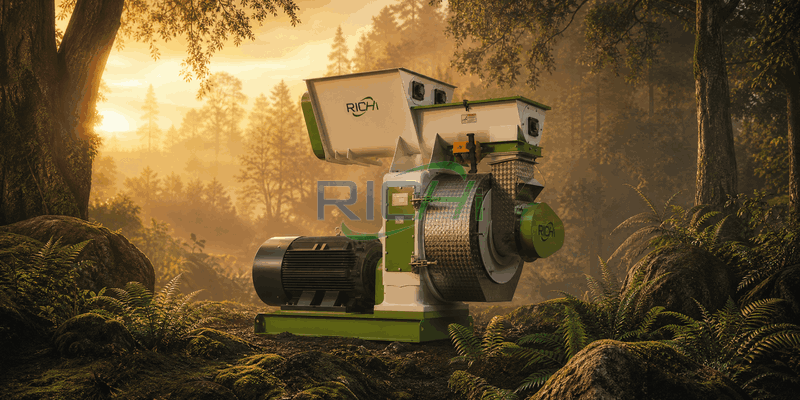

2 T/H Straw Pellet Machine in Türkiye

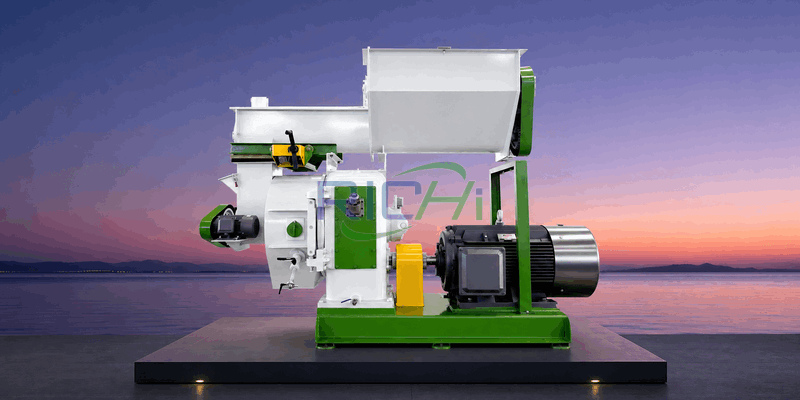

3 T/H Straw Pellet Machine in Romania

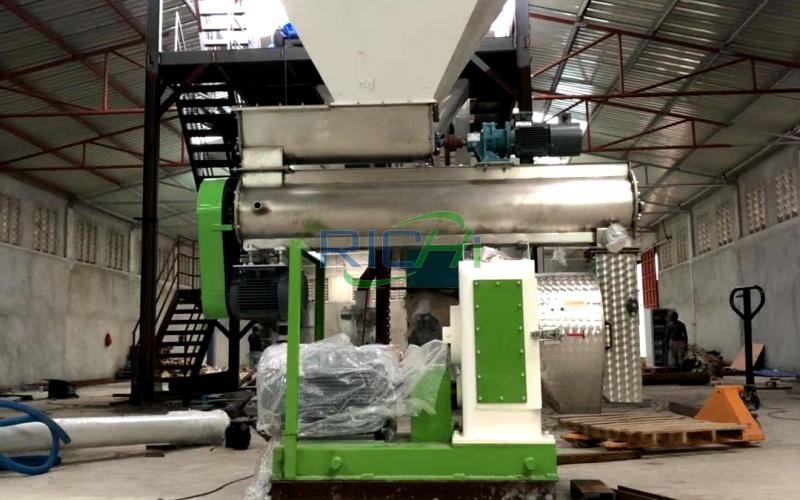

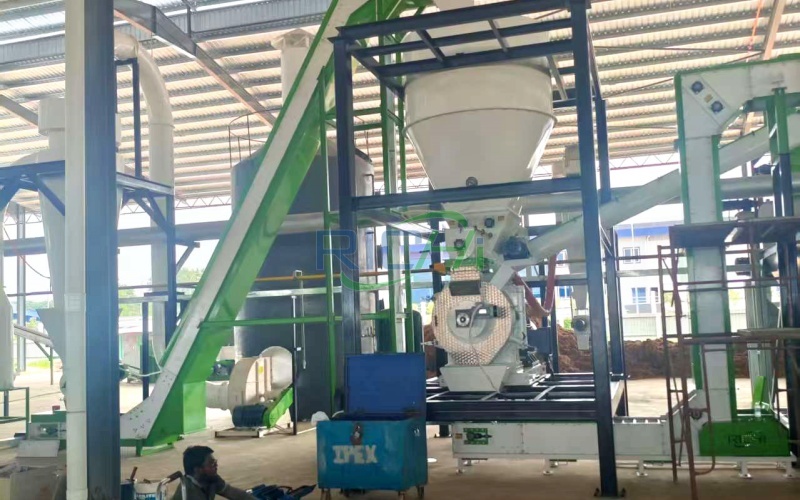

RICHI Straw Pellet Machine Global Case Studies

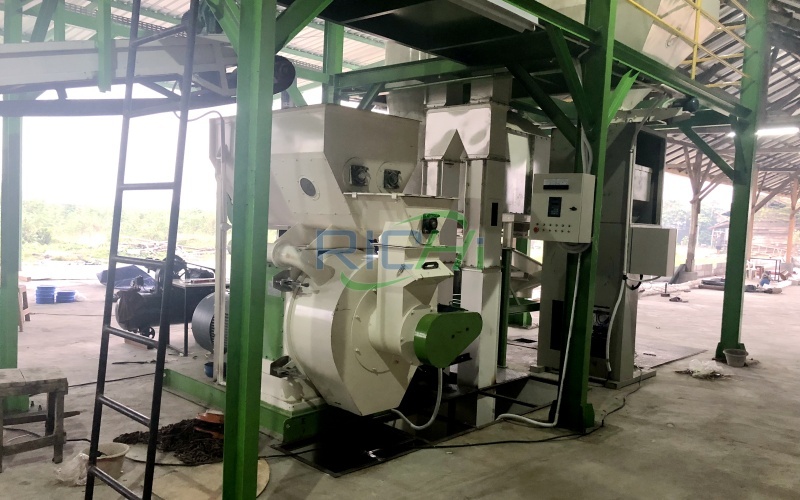

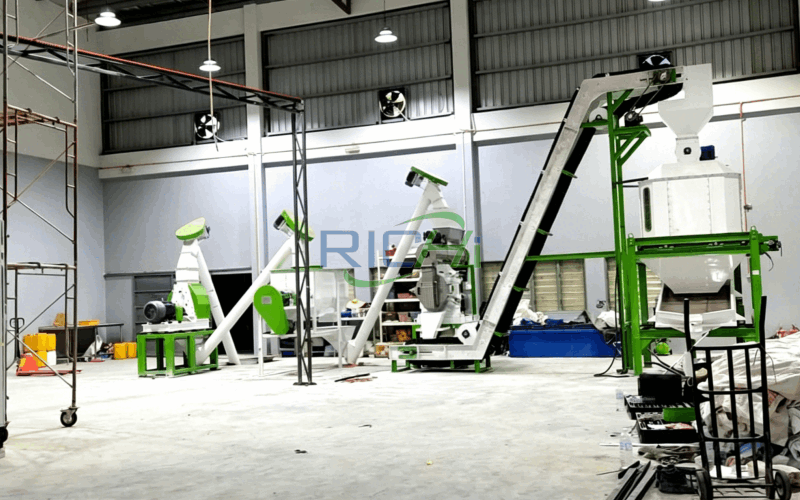

Here are a few real projects where RICHI’s straw pellet machines were installed overseas. They cover both fuel pellets and ruminant feed pellets. Maybe they’ll give you some ideas for choosing your own equipment.
Core Advantages of Straw Pellet Machine
When you’re processing straw into pellets, who doesn’t want a machine that’s easy to use and reliable? We know what bothers our customers, so we’ve packed our straw pellet press with smart features and designs. You can buy with confidence.
The ring die is made of 42CrMo alloy steel with a carburized, hardened surface – hardness HRC 58–62. That’s way more wear-resistant than stainless steel, so it handles high-fiber straw without breaking a sweat. The holes are precision-machined to a finish of Ra ≤ 0.8 µm, so material flows out smoothly and doesn’t stick. Compression ratio is adjustable from 1:10 to 1:18. Just swap the ring die to a different hole size, and you can make pellets of various diameters.
High Efficiency and Wear Resistance
We use Siemens motors – a solid brand. You can choose from 22 kW all the way up to 250 kW. That kind of muscle handles the resistance you get when compressing straw. And with a precision-ground gearbox, the straw pellet machine can run 24 hours straight without a problem.
Plenty of Power
The body is built from heavy, thickened steel. That reduces vibration when the machine runs and gives solid support to the core components inside.
If something jams or the machine gets overloaded, the protective mechanisms kick in. A safety pin breaks, and a limit switch shuts things down automatically. That protects the ring die and rollers from damage, keeps repair costs down, and also helps keep your operators safe.
Multiple Safeguards
Straw Pellet Machine‘s Common Applications
Different output levels call for different models. The following are common application scenarios for RICHI straw pellet machines. Pellet diameter can be adjusted from 4 to 12 mm as needed. Want more details? Just give us a shout.
Small-Scale Operations
Suitable for: family farms, small-scale livestock farms, and start-up straw pellet processing workshops
Recommended models: CZLH320 / CZLH350
Capacity: 0.5-1.2 T/H
Advantages: These straw pellet machines are relatively affordable, suitable for customers with limited budgets. They are compact, easily repositionable, and don’t take up much space. They are also simpler to operate; one person can manage them without requiring a highly specialized technical team. One machine can meet the needs of producing fuel and ruminant feed.

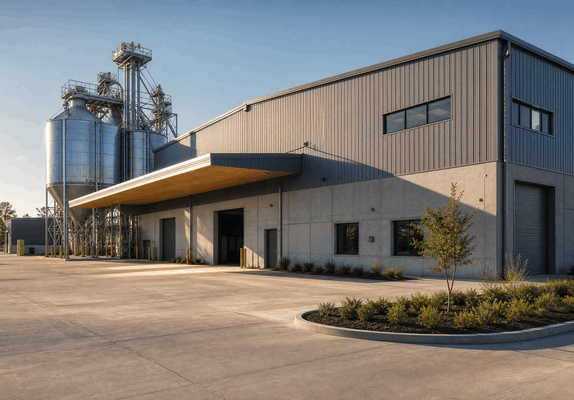

Medium-Scale Operations
Suitable for: medium-sized feed processing plants, professional biomass pellet fuel processing enterprises, and agricultural cooperatives
Recommended models: CZLH420 / CZLH520
Capacity: 1.8-3 T/H
Advantages: These straw pellet machines strike a balance between capacity and investment, producing more than small equipment while having lower investment costs than large equipment. These models come standard with arch-breaking feeders and forced feeders, easily handling coarse fiber raw materials. A conditioner can also be installed for use as ruminant feed.

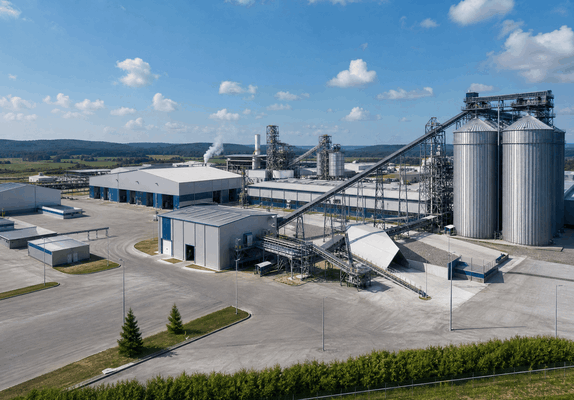

Large-Scale Operations
Suitable for: large-scale feed processing enterprises, large-scale biomass fuel plants, biomass power plants
Recommended models: CZLH678 / CZLH768
Capacity: 4-8 T/H
Advantages: These straw pelletizers are specifically designed to meet the needs of large-scale continuous industrial production. They all use durable pressure rollers and thickened ring dies, and can be paired with fully automated production lines to achieve long-term continuous high-load operation. They are core equipment in the entire production line, and all of these machines support customized production.

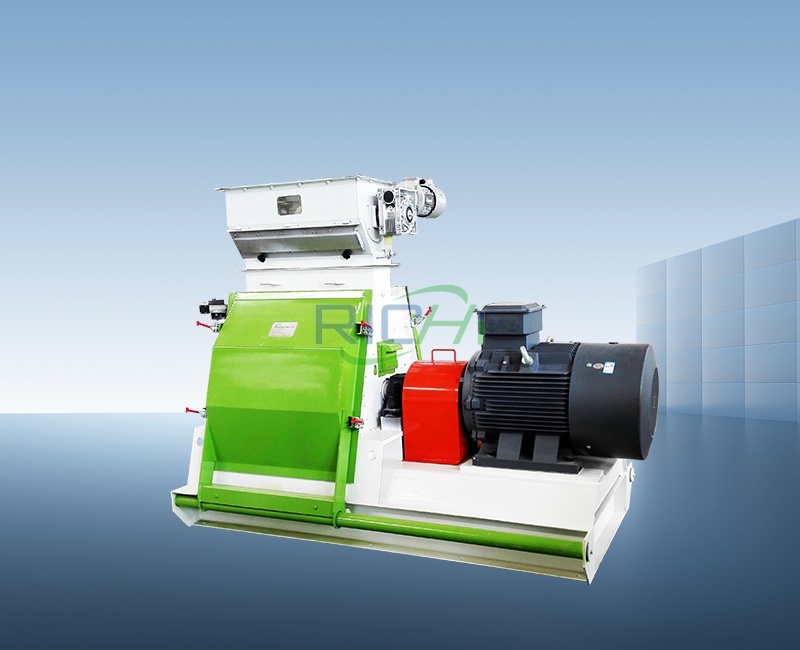

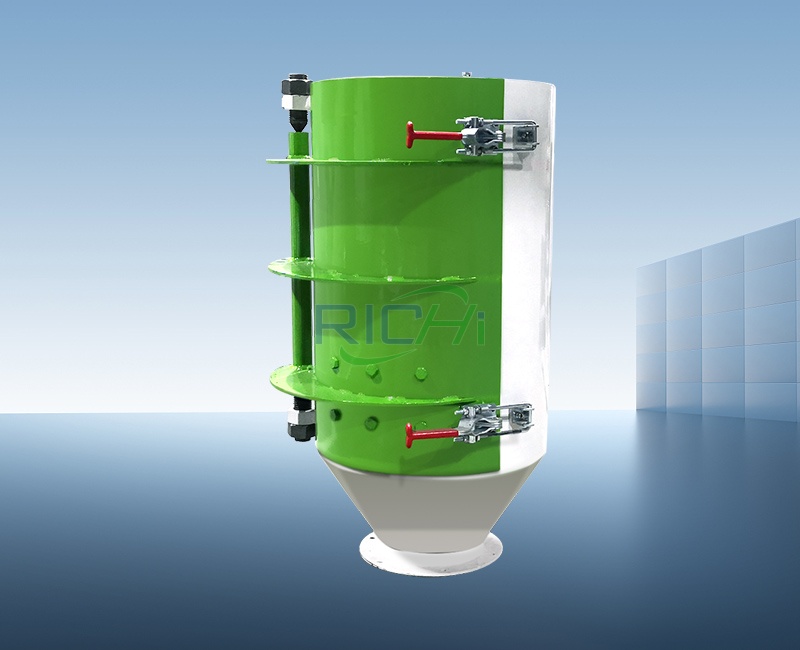

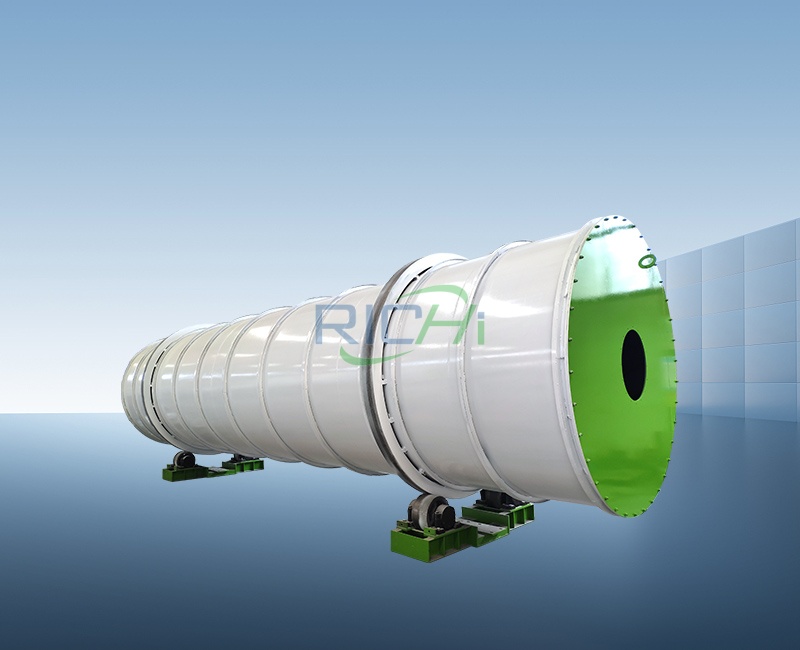

Straw Pellet Machine’s Supporting Equipment

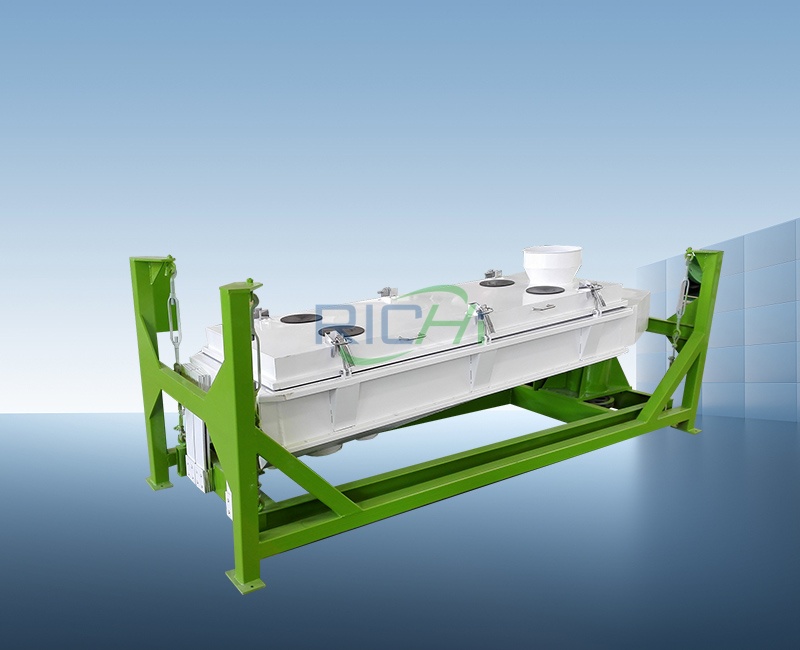

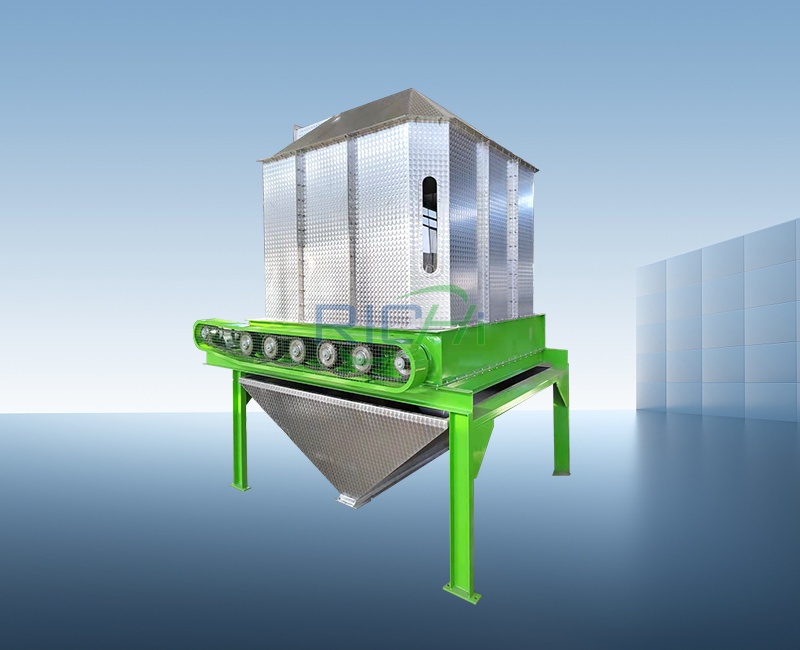

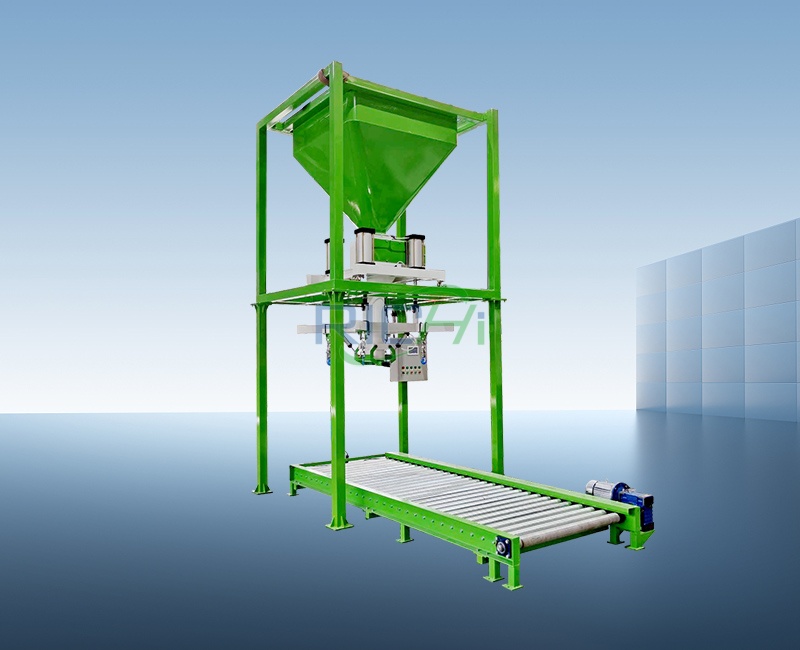

From straw to pellets, it’s not just about a straw pellet mill. RICHI can provide you with a complete straw pellet production line, which includes various supporting equipment. From raw material processing to finished product packaging, we can provide everything you need in one stop.
Our Service System
Buying a machine seems simple – you order, you get it. But there are a lot of steps in between where things can go wrong. We don’t want our customers to run into problems after delivery, and we definitely don’t want you to be left hanging when something goes wrong. Here’s our full process, from custom design to after-sales support. Read through it, and you’ll probably feel more at ease.
Project Experience
30+
Years
Countries and Regions Served
140+
Projects Delivered
2000+
Factory Area
100,000+
㎡
About Us
Henan RICHI Machinery Equipment Co., Ltd., established in 1995, primarily focuses on the research and development and manufacturing of feed machinery, biomass pelleting equipment, organic fertilizer pelleting equipment, and complete pelleting production lines. After more than 30 years of development, RICHI has become a professional pelleting machinery manufacturer. Our products are exported to over 140 countries and regions worldwide, earning the trust of customers both domestically and internationally.
Qualification Advantages
RICHI boasts numerous international authoritative certifications and patents, including ISO9001, CE, SGS, and TÜV. This means that the equipment you purchase can smoothly pass through customs and quality standards in various countries, with no customs clearance risks and compliant delivery. Choosing RICHI means choosing a guarantee of smooth global access and worry-free production.
FAQ
Below are answers to common questions from past customers. You might have the same ones. If not, feel free to reach out anytime.
What raw materials can a straw pellet press process?
→
Our straw pellet machine can process all kinds of crop stalks – corn, wheat, soybean, cotton – you name it. Besides those, it also handles wood chips, sawdust, rice husks, palm fiber, and other biomass materials. Just make sure you crush and dry the straw properly before processing. That’s the key to good pellet formation.
Can the straw pellets be fed to cattle and sheep?
→
Yes, they can. But here’s the thing: if you use pure straw, the pellets will be high in crude fiber and low in protein. That’s fine as a roughage supplement for ruminants, but if you want to use them as a complete feed, you should mix in some soybean meal, corn, or other ingredients to balance it out.We have a high-quality straw pellet machine if you’re looking to produce these pellets yourself.
How often do the ring die and rollers need to be replaced?
→
They’re wear parts. How long they last depends on how often you use the machine, how abrasive your raw materials are, and how well you maintain things. You’ll know it’s time to replace them when pellet output drops noticeably or the pellets don’t form well anymore.
Here are a few maintenance tips:
Regularly check the rollers and ring die for wear. If they’re badly worn, replace them.
Check screws and bolts for looseness, and tighten them.
Lubricate the transmission parts, bearings, and other moving components thoroughly.
Is a straw pellet making machine prone to clogging? How to avoid it?
→
Because straw is light, there’s a risk of feeding problems or clogging. To avoid that, keep a close eye on moisture content and pellet size. Feed the material as evenly as you can – don’t overload the machine. When you get a new machine, it’s a good idea to “break in” the ring die by running it with an oily material to polish the holes. Also, before you shut down for a while, fill the die holes with something oily to prevent rust.
Do I need dust removal equipment for a straw pelleting machine?
→
Strongly recommended. The crushing and feeding stages kick up a lot of dust. That’s not just bad for the environment – there’s also a risk of dust explosions. We can supply dust control equipment to keep the dust from spreading. And while you’re at it, wear a mask to protect yourself.
How much does a straw pellet machine cost?
→
Our straw pellet machine comes in different models and outputs – the price depends mainly on which model and output you choose.For the same model, higher capacity means a higher price. Just tell us what you need, and we’ll send you a detailed quote.
One piece of advice: buy directly from a manufacturer, not a trading company. A manufacturer can customize a solution for your specific needs and give you solid after-sales support. Plus, for the same quality, manufacturers usually charge less than trading companies.
