According to different customer needs, RICHI
Biomass Pellet Machine
Product Introduction
What is Biomass Pellet Machine
Capacity: 0.5-40 T/H
Pellet Diameter: 2-12 mm
Biomass pellet maker is a machine that can process various kinds of biomass raw materials. These include forestry resources (wood chips, sawdust, nutshells, etc.), agricultural resources (straw, rice husks, sugarcane, etc.), municipal solid waste (food scraps, commercial waste, etc.), and organic materials (livestock manure, organic wastewater, etc.).
RICHI biomass pellet machines are powerful, highly adaptable, and consume low energy during production. They can process these waste biomass resources into usable animal feed, fuel, cat litter, animal bedding, or organic fertilizer. They also support pellet production in diameters from 2 to 12 mm. You can use the finished products yourself or sell them to create more economic value. Contact us, and you’ll have the chance to own a highly efficient and reliable biomass pellet making machine.
How does a biomass pellet machine work?
This video demonstrates the entire operation of the biomass wood pellet machine, from feeding to discharge; it ensures smooth material intake and produces dense, compact pellets, thereby guaranteeing high production efficiency.
If you would like to see the RICHI biomass pellet machine in operation at other customer sites, please scroll to the bottom of the page to watch additional videos.
Classification of Biomass Pellet Machine
Usage Classification
RICHI biomass pellet machines are powerful machines that handle a wide range of biomass raw materials. Since the finished pellets serve different purposes, we’ve subdivided and optimized our pellet mills so each model can more precisely match the processing needs of specific materials. Here are some common applications.
Ruminant Feed
Alfalfa and hay are common biomass ingredients in cattle and sheep feed. To meet the needs of customers who produce ruminant feed, RICHI offers a dedicated biomass pelletizer. It comes with a conditioner and a forced feeder, so it handles high‑fiber materials with ease and produces pellets that are nutritious and palatable.
Clean Fuel
As more countries shift to clean energy for environmental reasons, fuel options are no longer limited to traditional coal. RICHI has designed fuel pellet mills that compress biomass like wood and nutshells into dense pellets. With an adjustable ring die compression ratio, they produce fuel pellets with high calorific value and low ash content.
Organic Fertilizer
Agricultural waste like livestock manure and crop stalks can become valuable organic fertilizer material after fermentation. The RICHI organic fertilizer pellet mill uses physical pressure to compress the fermented material into solid pellets. No binders are needed – the process gives you a high forming rate and uniform particle size.
Animal Bedding
The growing pet economy and modern livestock sector have driven demand for products like cat litter and stable bedding. Common materials like sawdust, pine, and waste paper can all be processed into animal bedding. RICHI animal bedding pellet mills use a purely physical compression process with an adjustable ring die. The resulting pellets are highly absorbent, low‑dust, and biodegradable.
Output Capability Classification
RICHI offers many models of biomass pellet machines, and each model has its own capacity. That’s what makes them so versatile – they work well for small‑scale factory production, and they can also handle large‑scale, fully automated pellet processing lines.
Product Classification
For over 30 years, RICHI has been studying the specific needs of different customers and listening to what they have to say. Through ongoing improvements and innovation, we’ve designed and built a whole range of biomass pellet machines. Each model has its own advantages, and they can produce many types of biomass pellets. Feel free to get in touch with us for the latest biomass pellet machine price.
Sawdust Pellet Machine
Got sawdust left over from wood processing? This machine uses a ring die and biomass rollers to apply strong compression, turning the waste material into dense, solid pellets that work perfectly as clean‑burning fuel.
Straw Pellet Machine
This biomass pellet machine handles crop residues like corn stalks, wheat straw, and soybean stalks. You can mix the straw with other ingredients and condition it to make ruminant feed for cattle and sheep. Or you can press it directly into fuel pellets.

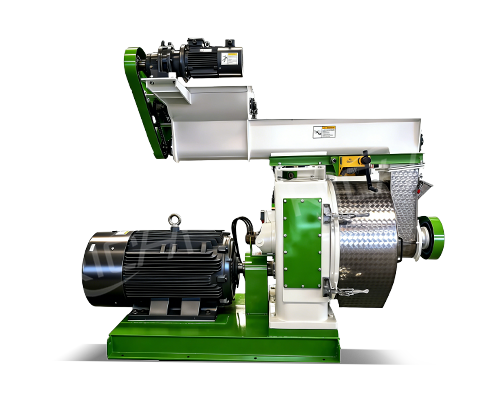

Alfalfa Pellet Machine
This biomass pellet machine is built specifically for alfalfa. It features a variable‑frequency anti‑bridging feeder at the inlet and a forced feeder on the machine body – both working together to keep lightweight, fluffy alfalfa moving smoothly into the mill. The result is high‑protein, nutritious feed pellets for ruminants.
EFB Pellet Machine
If you have large quantities of EFB material to deal with, this machine can process them into fuel pellets. EFB is naturally tough and hard, but RICHI’s EFB pellet mill handles it with ease, thanks to its highly wear‑resistant ring dies and rollers that apply powerful compression.
Chicken Manure Pellet Machine
This biomass pellet machine processes fermented and decomposed chicken manure into pellets. With strong compression from the ring die and rollers, it forms the material easily – reducing the volume significantly, removing unpleasant odors, and producing high‑quality organic fertilizer in the end.
Cow Dung Pellet Making Machine
Manure generated daily at dairy farms or beef cattle operations can be processed with this machine. When mixed with straw or other additives, it comes out as loose, porous organic fertilizer pellets that are easy to store and convenient to transport.

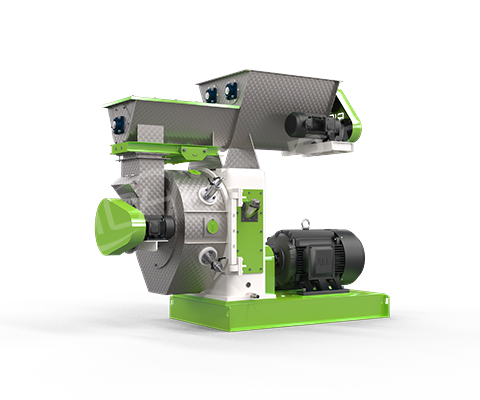

Cat Litter Pellet Machine
This biomass pellet machine is designed specifically for cat litter production. It handles raw materials like bentonite, tofu dregs, wood dust, and similar lightweight powders with ease. Thanks to the variable‑frequency feeder and forced feeder, these fine materials flow smoothly into the die – giving you cat litter with the right hardness and strong absorbency.

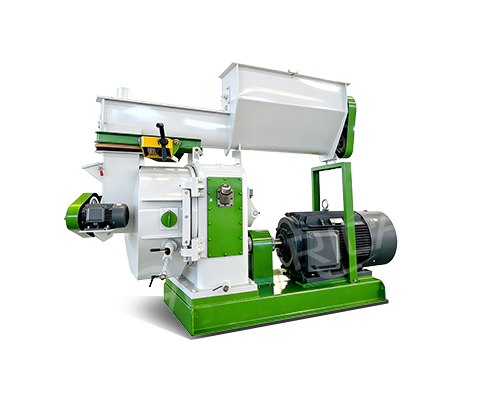

Animal Bedding Pellet Machine
This biomass pellet machine processes materials like wood chips, straw, and waste paper into bedding pellets for livestock housing or pet enclosures. The finished pellets offer excellent absorbency and produce very little dust. We can also adjust the density and size of the pellets to suit your specific requirements – giving you full flexibility.
Components of Biomass Pellet Machine
Most biomass materials have one thing in common – they’re light, fibrous, and don’t flow well. Ordinary machines tend to jam when handling them. RICHI’s biomass pellet machine is built with several specially designed core structures that take all these difficulties into account and handle them with ease.
Feeding System
Light materials like sawdust and forage are prone to bridging and poor flow. To solve this, we’ve added a variable‑frequency anti‑bridging feeder at the inlet, with extra optimization built in. The feeder has two rollers that rotate in opposite directions to break up the material thoroughly – that stops clogs from the very start. We also pair it with a forced feeder, which pushes the light material firmly into the pelleting chamber, so it makes it to the critical pelleting stage without any trouble.
Pelleting System
For a more stable pelleting process, we built a more durable structure specifically for high‑fiber materials. The ring die inside the chamber is made of 42CrMo alloy steel and undergoes carburizing treatment – that gives it higher wear resistance, so it stands up to coarse, tough fibers with ease. We also pair it with biomass‑specific rollers that grip the material securely and compress it thoroughly.
Power System
Biomass materials often create high resistance and heavy loads during pelleting, which puts the power system to the test. Our pellet mill uses high‑power Siemens motors (from 22kW up to 250kW) that deliver plenty of strength. We also add precision‑ground, carburized gearboxes that provide stable torque output, so the machine runs smoothly even when it hits sudden heavy resistance.
Safety System
Besides performance, safety and stability are also high on our customers’ list of concerns – and we’ve put serious work into both. The machine has a heavy‑duty reinforced body that greatly reduces vibration during operation and gives solid support to the high‑speed internal parts. We also include a mechanical overload protection device as a safety backup. If the machine jams or overloads, it shuts down automatically to protect core components like the ring die and rollers – which saves you money on repairs.
Global Cases of Biomass Pellet Machine
By now, you probably have a good understanding of RICHI biomass pellet machines. You might also want to take a closer look at some real customer cases for reference. As leading biomass pellet machine manufacturers, we supply equipment to global customers. Below we’ve put together a few representative examples.

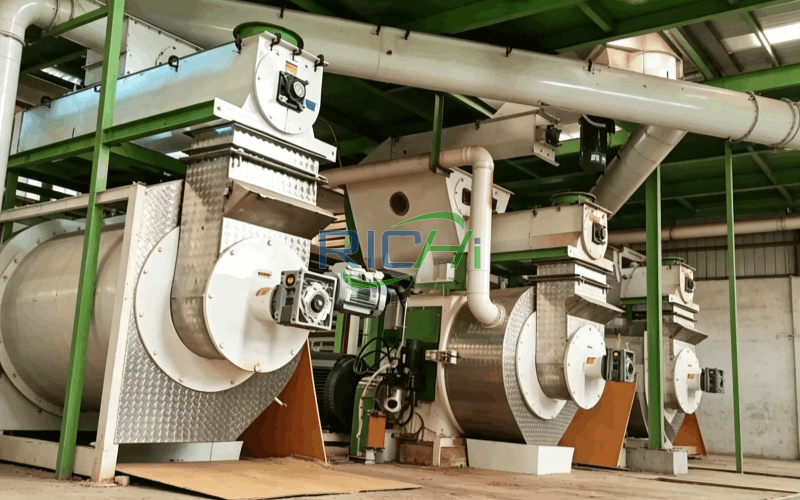

20 T/H Biomass Pellet Machine for Sale in Bangladesh
Equipment: MZLH768
Raw Materials: sawdust, wood chips, and wood processing offcuts
Product: 8mm biomass fuel pellets
Case Details:
The client runs a biomass energy trading company. They needed to sell and export fuel pellets in large volumes. Their raw materials had high moisture content, which often caused clogging in standard pellet mills.
We designed a parallel setup using the MZLH768 and added a rotary dryer to control the moisture level. The system now runs steadily at 20 tons per hour, and the client has secured long‑term export contracts.

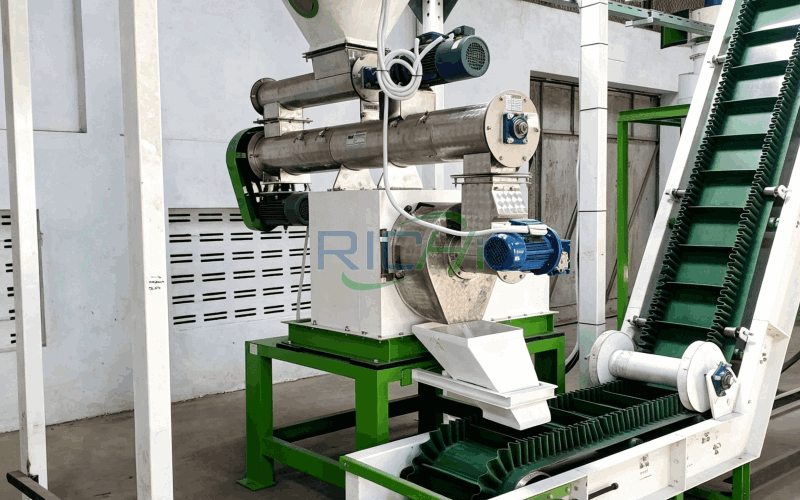

5–6 T/H Biomass Pellet Machine in Turkey
Equipment: MZLH350
Raw Material: bentonite clay
Product: 2–5mm cat litter pellets
Case Details:
This is a medium‑sized cat litter processor in Turkey. They were losing profits because their pellets had a high fines content.
We recommended the MZLH350 and adjusted the ring die compression ratio to make the pellets denser and more durable. We also supplied custom ring dies with different hole sizes, so they can produce various pellet diameters as needed.

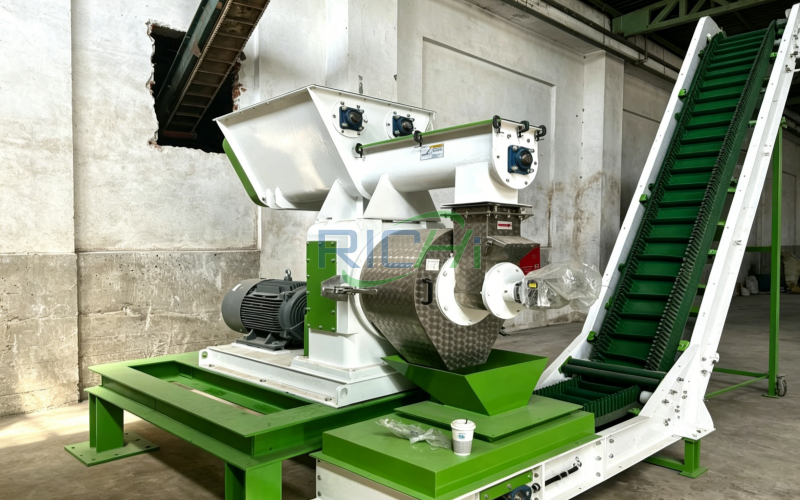

6 T/H Biomass Pellet Machine for Sale in Vietnam
Equipment: FZLH420
Raw Material: fermented and composted chicken manure
Product: 4mm organic fertilizer pellets
Case Details:
The client is a professional organic fertilizer company. They wanted to reduce bridging and clogging during the feeding stage.
After visiting the site, we recommended a biomass pellet mill of the right size. Once it was up and running, the variable‑frequency anti‑bridging feeder and the forced feeder made a big difference – they solved the fiber bridging problem that had been troubling the client for a long time.

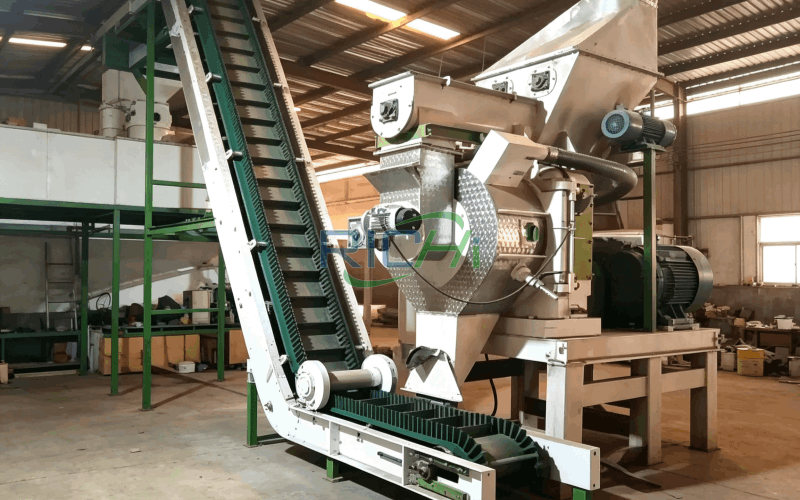

3 T/H Small Biomass Pellet Maker in Argentina
Equipment: CZLH520
Raw Materials: wheat straw and corn stalks
Product: 6mm fuel pellets
Case Details:
This is a biomass fuel pellet producer. The area generates a large amount of agricultural waste – wheat straw, corn stalks, and the like – every year.
We helped the client fine‑tune their raw material pretreatment process and recommended the CZLH520. We also adjusted the ring die compression ratio to suit the local climate, so the pellets came out with the right firmness. The client now supplies these pellets to nearby farms and processing plants as fuel.
Other Related videos
RICHI biomass pellet machines have now been used in pellet production projects by over 300 companies overseas, and they’ve generated hundreds of millions of dollars in revenue.
So what do they look like on site, and how do they actually perform? These customer‑filmed videos – showing wood chip, chicken manure, and cat litter pellet machines – will give you the answers.

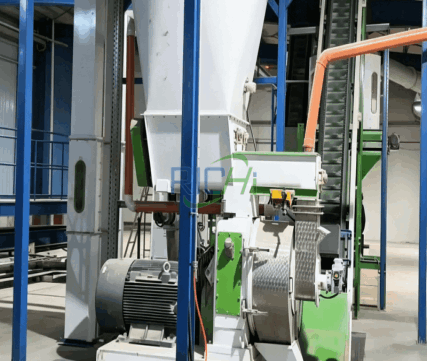

2 T/H Biomass Pellet Machine in Romania

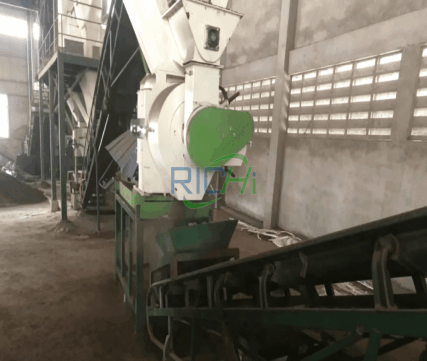

4 T/H Biomass Pellet Machine in Philippines

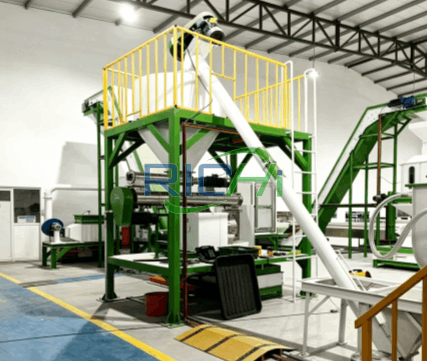

2 T/H Biomass Pellet Machine in Malaysia
Advantages of Biomass Pellet Machine
Choosing a RICHI biomass pellet machine really does give you peace of mind – and that’s not just talk. The advantages below are the ones our customers have valued most in real‑world use.
The double‑roller anti‑bridging design and forced feeder make light work of materials that tend to bridge, like sawdust and forage grass. Even with a bulk density as low as 0.05–0.15 t/m³, you won’t see bridging or clogging. The material flows smoothly into the pelleting chamber, and your production keeps running without interruption.
No Feeding Worries
The ring die – a key component in the pelleting chamber – is made of 42CrMo alloy steel with carburizing treatment. That makes it tougher and more wear‑resistant than standard materials, so it handles high‑fiber feedstocks like sawdust and forage with ease. Paired with our dedicated rollers, the compression ratio is adjustable from 1:10 to 1:18 to suit your needs.
Durable and Reliable Ring Die
With motors ranging from 22 kW to 250 kW and precision‑ground gear drives, you get high torque and low power loss. The biomass pellet machine keeps running even under heavy resistance – day in, day out, 24/7.
Strong and Steady Power
Our biomass pellet machine uses a double‑roller and single‑side cutter design. Pellets pass through both rollers before being cut, giving you longer pellets as a result. If you have special requirements, we can also add extra cutters to adjust the length flexibly.
Flexible Pellet Length Adjustment
Our Services
Apart from supplying a wide range of equipment, RICHI also offers reliable services and solutions throughout your entire purchasing process. We’ve built a complete project lifecycle management system, so you have less to worry about at every stage.
Project Experience
30+
Years
Countries and Regions Served
140+
Projects Delivered
2000+
Factory Area
100,000+
㎡
About Us
Henan RICHI Machinery Equipment Co., Ltd., established in 1995, primarily focuses on the research and development and manufacturing of feed machinery, biomass pelleting equipment, organic fertilizer pelleting equipment, and complete pelleting production lines. After more than 30 years of development, RICHI has become a professional pelleting machinery manufacturer. Our products are exported to over 140 countries and regions worldwide, earning the trust of customers both domestically and internationally.
Qualification Advantages
RICHI boasts numerous international authoritative certifications and patents, including ISO9001, CE, SGS, and TÜV. This means that the equipment you purchase can smoothly pass through customs and quality standards in various countries, with no customs clearance risks and compliant delivery. Choosing RICHI means choosing a guarantee of smooth global access and worry-free production.
FAQ
Whether you’re buying a biomass pellet machine for the first time or upgrading your existing equipment, you probably have a lot of questions. Below we’ve listed some common ones – we hope they help.
What should I pay attention to when investing in a biomass pellet project?
→
You need to consider your raw material characteristics, the stability of the equipment’s output, its durability, the cost of wear parts, and how easy it is to sell the finished product. The cheapest biomass pellet machine isn’t always the best choice – what matters is finding one that works with your materials and runs reliably over the long term. If you’re not sure, just contact us. We’ll recommend a solution that fits your raw materials and production scale.
How does the biomass pellet machine work?
→
RICHI biomass pellet machines use ring‑die compression technology. After the material is crushed and dried, it enters the pelleting chamber. The ring die and rollers press the material into the die holes to form pellets. During this process, friction generates heat – that softens the natural lignin in the material (for fuel pellets) or activates binders (for organic fertilizer or cat litter), helping it bond together naturally. The result is high‑density pellets with good hardness.
What raw materials can this machine handle?
→
This machine can process almost any type of biomass material. The main categories include:
- Agricultural and forestry waste: wood chips, sawdust, straw, rice husks, peanut shells, palm shells, fruit tree branches, and more.
- Livestock manure: fermented and decomposed cow manure, pig manure, chicken manure, and others.
- By‑products: distiller’s grains, herbal medicine residues, mushroom cultivation waste, etc.
- Others: corn cobs, sugarcane bagasse, urban green waste, and more.
Can you arrange on‑site installation?
→
Absolutely. After we make sure the biomass pellet machine arrives at your site on time, we’ll send a technician to install and commission it. We’ll also provide training and walk you through the operation, so you can get started quickly.
What if the equipment breaks down?
→
We offer a 12‑month warranty on the biomass pellet machine. Apart from wear parts, we’ll replace any non‑wear components that fail due to normal use, free of charge during the warranty period. Our support team is available 24/7 for video guidance and remote assistance. If it’s a more complex issue, we’ll dispatch a technician to your site for repair. For wear parts, just contact us and we’ll arrange delivery – RICHI keeps a good stock of biomass pellet machine wear parts.
