hammer mill machine
Product Introduction

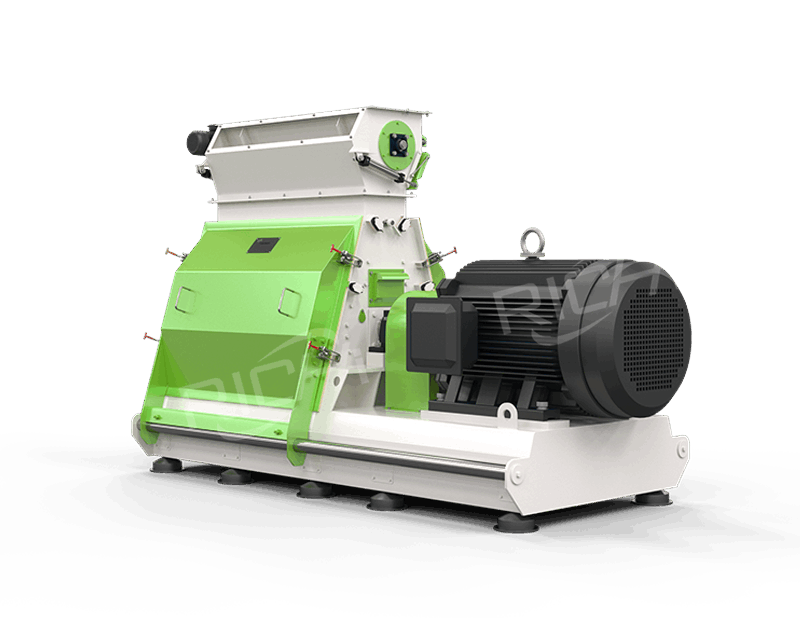

Hammer Mill Machine
The RICHI hammer mill machine is built specifically for feed processing and wood chip grinding. It’s one of the most common, all-purpose hammer mills out there right now. This hammer mill crusher can handle all sorts of materials — just swap out the screen, maybe adjust the motor. It’s not stuck doing just one job. Whether you need fine grinding for feed ingredients or heavy-duty crushing for wood chips, it’s up for the task.
We know different people have different output needs, so we’ve designed several sizes. And if none of those quite fit? We can custom-build one for you. Just get in touch anytime.
Hammer Mill Machine Videos
Below are two videos. One shows the machine in production line applications, and the other shows the actual crushing results. They’ll help you get an intuitive understanding of our hammer mill machine.

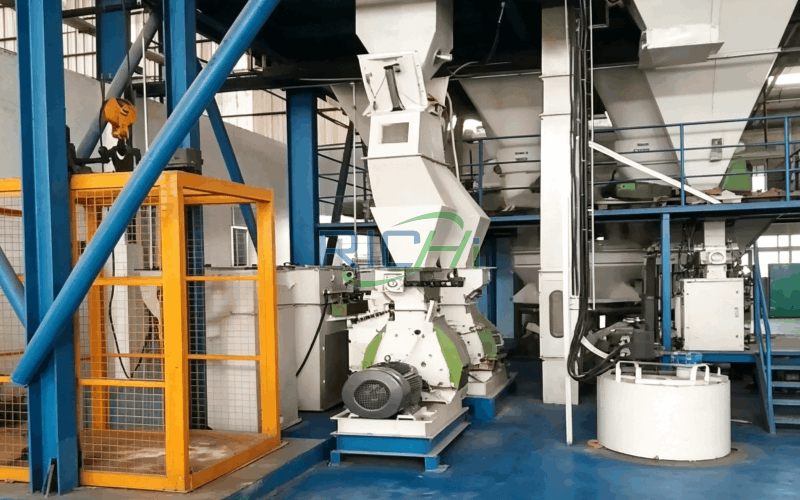

Hammer Mill Grinder for Sale in Indonesia

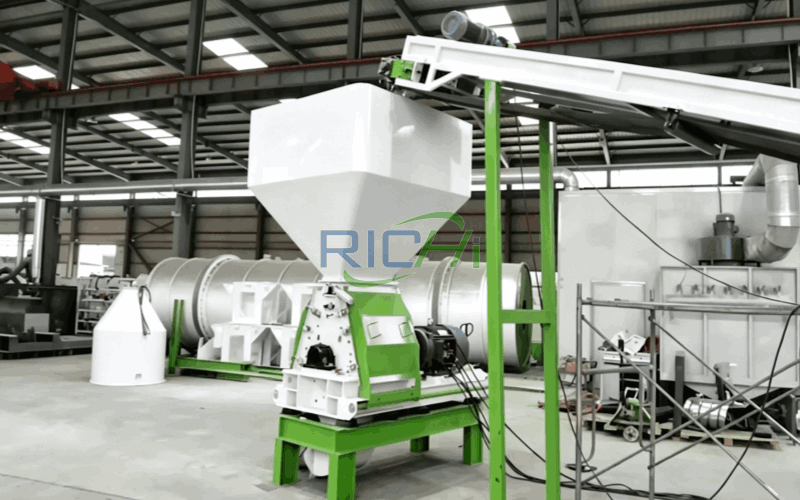

Hammer Mill Machine Trial Operation Before Shipment
Components of Hammer Mill Machine
When you’re buying equipment, don’t just look at how it looks—pay attention to whether the internal design is smart and durable. Here’s a breakdown of the main components. It’ll give you a much better idea of what this hammer mill machine is really about. Every part we describe below is what you get with our hammer mill machine.

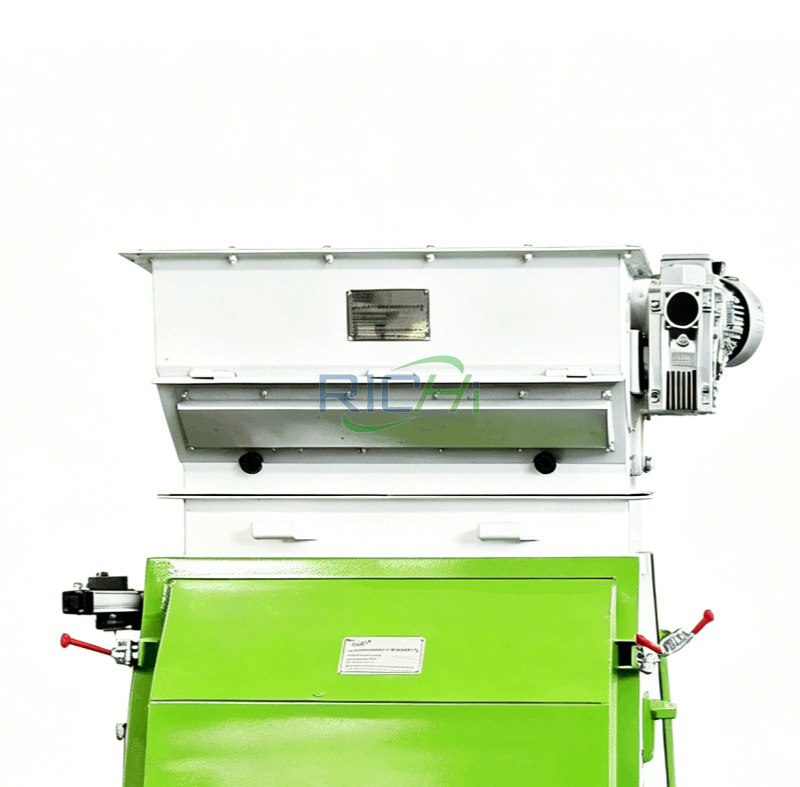

Variable-Frequency Impeller Feeder
This thing lets you dial in the feed rate precisely—no sudden surges or drops, so you don’t clog the hammer mill machine or end up with uneven output. We’ve also added an adjustable baffle at the feed inlet; you set it based on the rotor’s rotation direction, and the material flows through much smoother. Plus, there are small vents on the side of the feeder. When the blower pulls material and air out, those vents pull air back in—creates a nice air circulation loop inside.

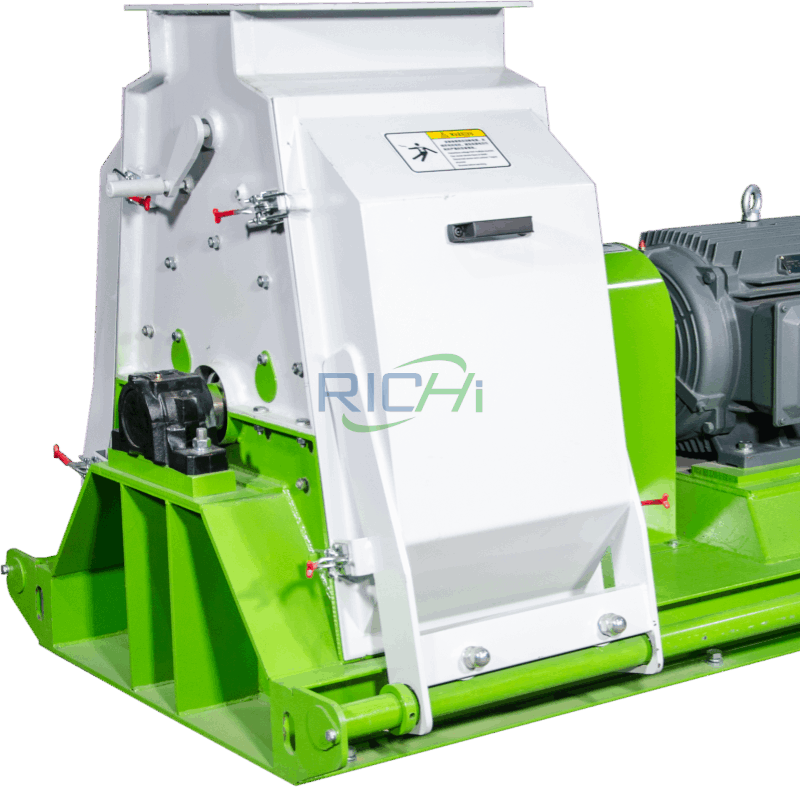

Crushing Chamber
This is where the real action happens. There’s a screen on the outside, held firmly in place by a clamping system. Material gets crushed down to size inside the chamber, then passes through the screen and drops down below. On larger models, we actually split the chamber into sections, and the screen is segmented too. So if one section gets damaged, you only replace that piece—not the whole screen.

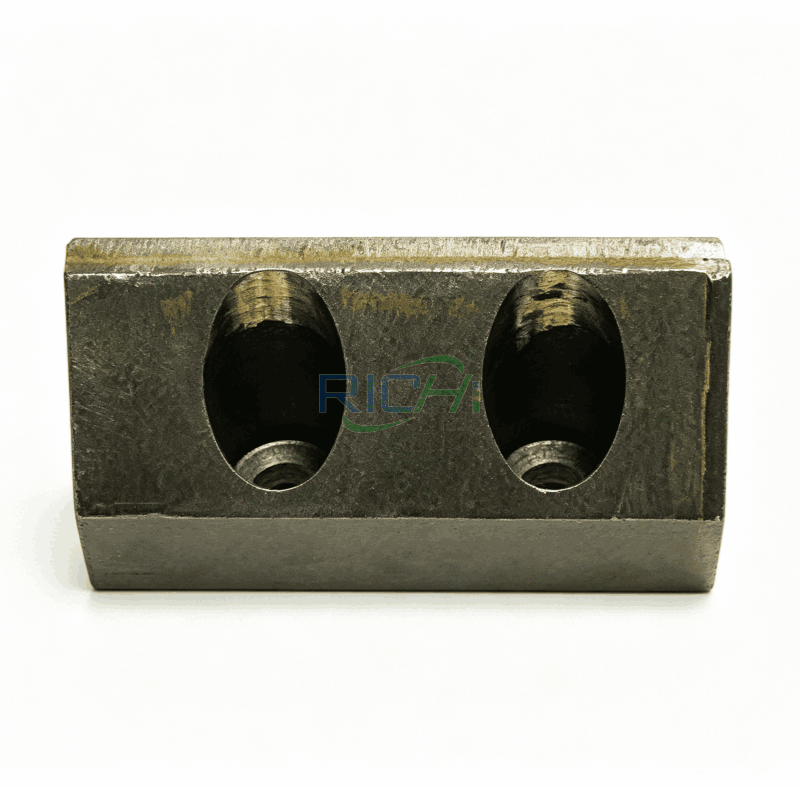

Double-Sided Hammers
Hammer blades are the main wear parts that directly contact the material. They have to strike the material at high speed all the time, so they wear down pretty fast. Our blades are made of high‑carbon steel, and we weld tungsten carbide onto the hammerhead to make them more wear‑resistant. One standout feature is that our blades are designed to be double‑sided – you can flip them and use both sides. If you alternate sides regularly, the wear stays more even. That means you replace them less often, and it cuts down your maintenance costs.
Hammer Mill Machine Details & Specs
Hammer mill machines are one of the most commonly used machines in RICHI’s auxiliary equipment. Picking the right model really matters. Take a look at the table below and see which one fits your needs. Not sure? No worries—just reach out, and we’ll help you figure out the best setup.
| Model | SFSP56*40 | SFSP66*60 | SFSP66*80 | SFSP66*100 | SFSP66*120 | SFSP66*150 | |||||||
| Rotor Diameter（mm） | 560 | 660 | 660 | 660 | 660 | 660 | |||||||
| Grinding Chamber Width（mm） | 400 | 600 | 800 | 1000 | 1200 | 1500 | |||||||
| Rotational Speed（rpm） | 2980 | 2980 | 2980 | 2980 | 2980 | 2980 | |||||||
| Hammer Tip Speed（m/s） | 88 | 103 | 103 | 103 | 103 | 103 | |||||||
| Power（kw） | 37 | 55 | 75 | 75 | 90 | 220 | 110 | 132 | 160 | 160 | 185 | 220 | 220 |
| Grain Output（T/H） | 3-5 | 5-6 | 6-7 | / | 8-10 | 40-50 | / | 15-17 | 20-22 | / | 25-27 | 30-32 | 40-50 |
| Forage/Straw Output（T/H） | 0.8-1.0 | 1.0-1.5 | / | 2.0-2.5 | / | 7.0-8.0 | 3.0-4.0 | / | / | / | 5.0-6.0 | / | 7.0-8.0 |
| Wood Chip Output （T/H） | 0.5-0.6 | 1.0-1.2 | / | / | 2.0-2.5 | 7.0-8.0 | / | 3.0-4.0 | / | / | 4.0-5.0 | 5.0-6.0 | 7.0-8.0 |
All data in the table comes from the actual small hammer mill for sale that we have in stock. Need a quick idea of the hammer mill price? Contact us — we’ll quote you based on your model and output needs.

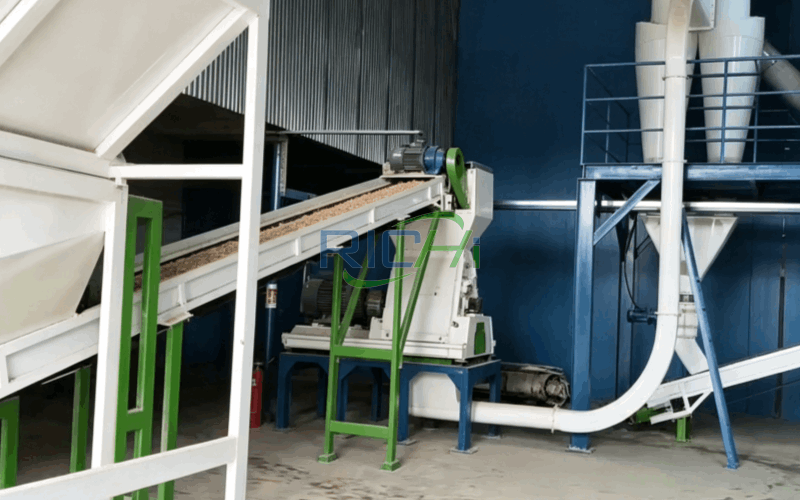

Hammer Mill Machine Customer Cases

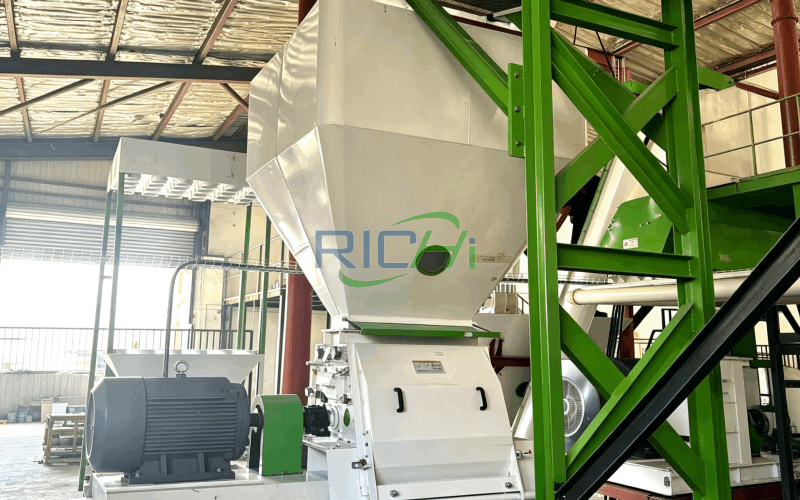

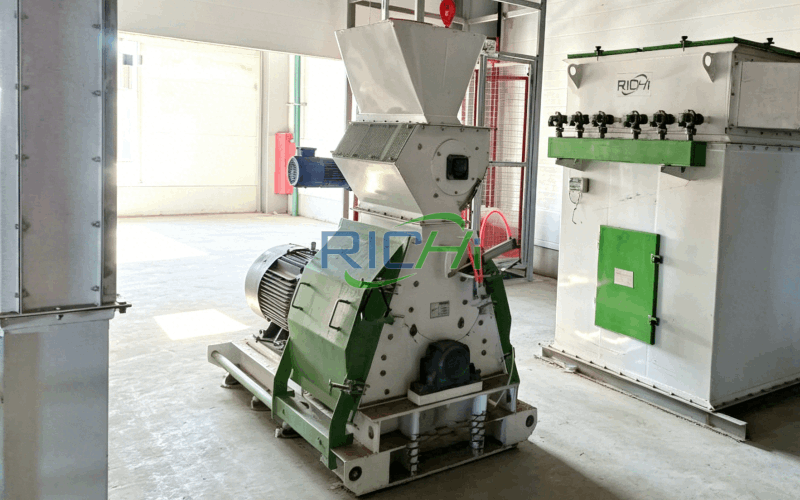

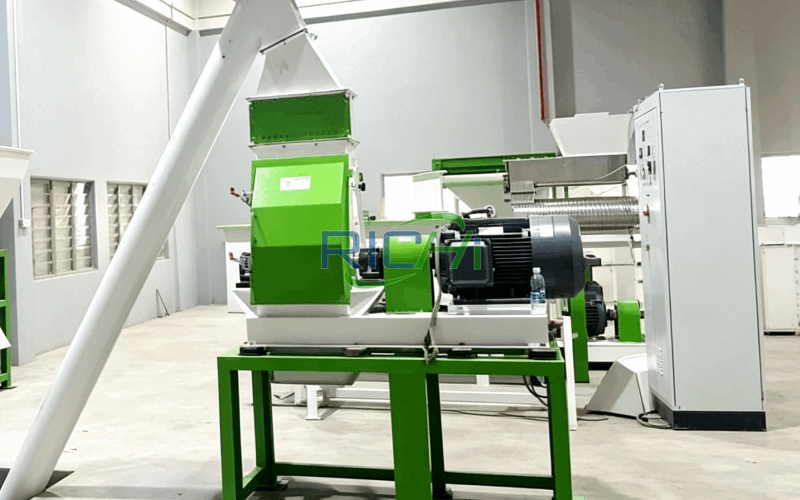

Hammer mill machines are front‑end equipment in many types of pellet production lines. They handle wood materials and feed ingredients like grains. RICHI hammer mills have been installed in production lines across different countries, helping customers process various raw materials with ease. Here are a few customer cases.
Advantages of Hammer Mill Machine
What does hammer mill machine actually do for me on the job? Here are some of the real benefits, based on what our customers have told us. These advantages are what make our hammer mill crusher for sale a smart investment.
The hammers are made from wear-resistant material, and they’re double-sided. Flip them from one side to the other, and wear stays even—so they last a lot longer. The rotor is dynamically balanced before it leaves us, so it runs smooth and trouble-free. And if you’re using it for wood chips? The screen is extra thick, built to take the pounding without cracking.
Tough and Long-lasting
Unlike ordinary crushers, our large hammer mill machines come with screens that are divided into separate sections. Each section installs independently. So if one section gets damaged during normal operation, you only need to replace that one piece – not the whole screen. That makes maintenance a lot easier and far less hassle.
Easy to Maintain
Worker safety during maintenance is a big deal. This hammer mill machine has a safety interlock on the access doors. It will only power up if both end doors are fully closed. Leave one open? It cuts the power automatically. No accidental startups, no danger to your people.
Safe to Work On
Project Experience
30+
Years
Countries and Regions Served
140+
Projects Delivered
2000+
Factory Area
100,000+
㎡
About Us
Henan RICHI Machinery Equipment Co., Ltd., established in 1995, primarily focuses on the research and development and manufacturing of feed machinery, biomass pelleting equipment, organic fertilizer pelleting equipment, and complete pelleting production lines. After more than 30 years of development, RICHI has become a professional pelleting machinery manufacturer. Our products are exported to over 140 countries and regions worldwide, earning the trust of customers both domestically and internationally.
Qualification Advantages
RICHI boasts numerous international authoritative certifications and patents, including ISO9001, CE, SGS, and TÜV. This means that the equipment you purchase can smoothly pass through customs and quality standards in various countries, with no customs clearance risks and compliant delivery. Choosing RICHI means choosing a guarantee of smooth global access and worry-free production.
FAQ
We get a lot of the same questions from customers. Here’s a quick list—hope it helps.
Can I use the same hammer mill machine for feed ingredients and wood chips?
→
Yes and no. The main machine body is the same, but you’ll need a few small changes. For wood chips, you’ll want a thicker screen—otherwise the hard chips will break it. Also, the motor power is usually a bit lower for wood chips, and you don’t need the variable-frequency feeder. For feed ingredients, just use a standard-thickness screen and run it with the variable-frequency feeder. Simple.
Is a thicker screen always better?
→
Not really. As long as the screen is strong enough not to break, a thinner screen actually lets material pass through faster—so you get higher output. We use thicker screens for wood chips because they’re hard and hit hard. Feed ingredients are much softer, so you don’t need that extra thickness. Different jobs, different screens.
Any tricks to make the hammers last longer?
→
Yep. Since they’re double-sided, just flip them regularly. That way the wear stays even, and you won’t end up throwing them away early because one side got trashed while the other was still good.
Will the machine overheat if we run it non-stop for a long time?
→
We designed it for long, continuous runs. The rotor is well-balanced, the bearings are properly sized, and there’s an air circulation system. Under normal conditions, it won’t overheat. Just keep up with basic lubrication and cleaning, and you’ll be fine.
Can I grind wet raw materials?
→
We wouldn’t recommend it. If the moisture content is too high, the material will stick to the screen and clog it up. That means slow discharge and a big drop in output. Best to keep things dry.
Do you offer installation if we buy this crusher?
→
Absolutely. We’ll send our people to your site to handle installation and commissioning. Any questions, just ask them on the spot. Also, we give you 12 months of free after-sales service. Run into any trouble while you’re using it? Let us know—we’ll get back to you quickly and keep your production moving.So if you’ve been waiting for a reliable feed hammer mill machine, now is the time — contact us today.
