Chicken Manure Pellet Machine
Don’t worry. The chicken manure pellet machine of RICHI can help you solve these problems. Welcome to contact us and tell us your problems. RICHI will definitely be able to provide you with assistance.
Product Introduction

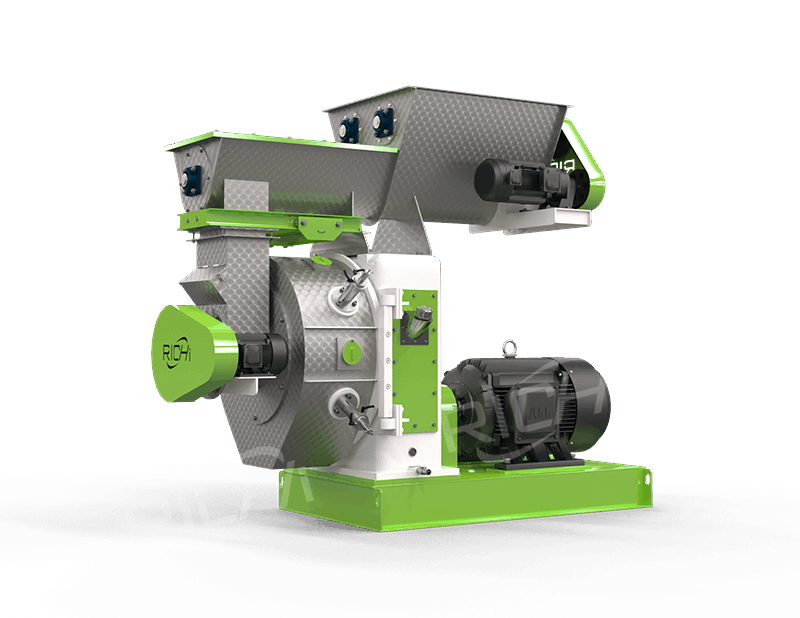

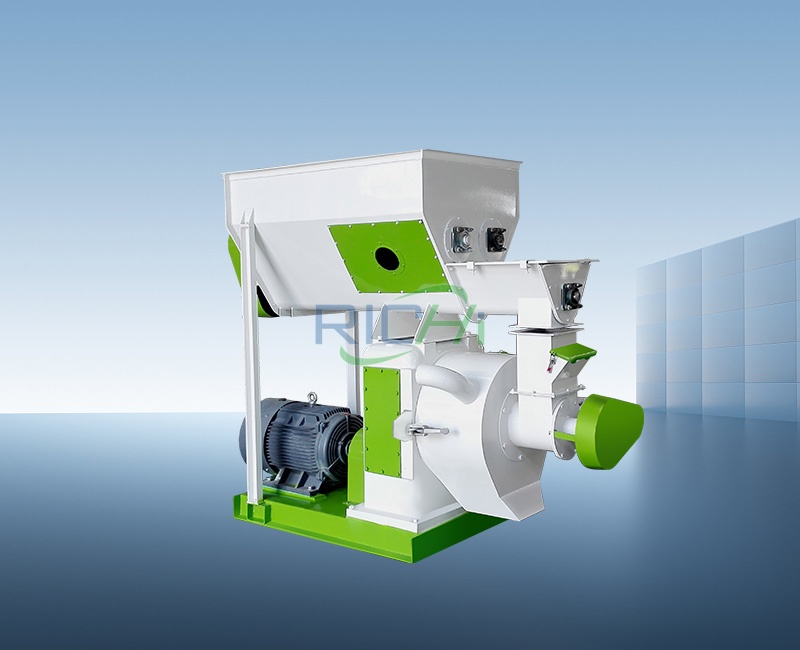

Chicken Manure Pellet Machine
Capacity: 1-26 T/H
The chicken manure pellet machine is a device specifically designed to process the fermented and decomposed chicken manure into granular organic fertilizer. Its main principle is to take the loose and difficult-to-use chicken manure and, through physical compression, turn it into pellets that are easy to store, transport, and apply.
Different types of chicken manure pellet machines have slightly different working principles. RICHI mainly produces ring die pressing pellet machine, which use a strong compression method. It can effectively deal with the characteristics of chicken manure being long in fibers and having poor viscosity, producing pellets with high density, good formation rate, and less tendency to clog.
Components of Chicken Manure Pellet Machine
One tree does not make a forest, and a single thread does not make a string. For a pelletizer that processes chicken manure to produce high-quality organic fertilizer pellets, the various components need to work together. What are the main components of this system?
Variable Frequency Feeder
After fermentation and grinding, the chicken manure will be fed into the granulator here. As the entry point of the chicken manure pellet machine, it is necessary to ensure that the feeding is smooth enough. Therefore, we have designed a disking device at the feeding port. It can use the reverse rotation of two rollers to thoroughly disperse the chicken manure raw materials. We have also designed an observation hole on the side of the chicken manure machine. Operators can observe the feeding situation and adjust the variable-frequency device at any time to regulate the feeding rate.
Granulation Chamber
The core part of the chicken manure chicken manure pellet machine is the granulation chamber, where the chicken manure pellets are formed. There are three key components in the granulation chamber: the pressing rollers, the ring mold, and the cutter. They need to work together properly to produce qualified pellets, and none of them can be missing.
The pressing rollers are specially designed for this type of raw material, with teeth patterns on the surface, which can firmly grip the chicken manure raw materials. Under the strong squeezing of the pressing rollers, the chicken manure is continuously pressed into the ring mold. The ring mold has many uniformly sized small holes, and after being squeezed, the materials will be squeezed out from these small holes, forming long strips. Finally, the cutter cuts these long strips into uniform lengths, completing the entire granulation process.
Drive and Transmission System
Just as a person needs a strong body to perform high-intensity exercise, the chicken manure pellet machine also needs reliable power support when operating under high load. This power comes from its drive and transmission system. The core is a high-power motor. We selected motors of the Siemens brand, with power ranging from 22KW to 250KW, providing sufficient power.
After the motor starts, how is the power transmitted to the granulation chamber? The answer is gear transmission. The gears we use have undergone precise gear grinding treatment, so the loss during the transmission process will be very small. The gearbox is connected to the motor through a coupling, and both rotate synchronously. This way, when the machine starts granulation, the impact force can be buffered, making the equipment start more smoothly.
Parameters of Chicken Manure Pellet Machine
Each customer has different raw material conditions and production requirements, and thus the equipment needed will also vary. Therefore, RICHI machinery have developed multiple types of chicken manure pellet machines with different parameters, aiming to better match various actual scenarios. If you are unsure which one is more suitable for you, simply contact us. Our engineers will provide you with professional advice.
| Model | FZLH250 | FZLH320 | FZLH350 | FZLH420 | FZLH520 | FZLH678 | FZLH768 |
| Main Motor Power (kW) | 22 | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch-Breaking Feeder Power (kW) | 2.2 | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kW) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter (mm) | 250 | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4-12 | ||||||
| Output (T/H) | 1-1.5 | 2-3 | 3-5 | 6-8 | 9-12 | 18-22 | 22-26 |
Explanation: The production figures mentioned above represent the rated output under a complete production line. The actual production volume, along with the handling of raw materials and moisture content, has a direct impact on the output.
Chicken Manure Pellet Machine Videos
How does a chicken manure pellet machine process wet, sticky chicken manure raw materials? Below are two videos that will reveal the answer to this question, realistically showcasing the pelletizing effect of this machine and its operation on the production line.

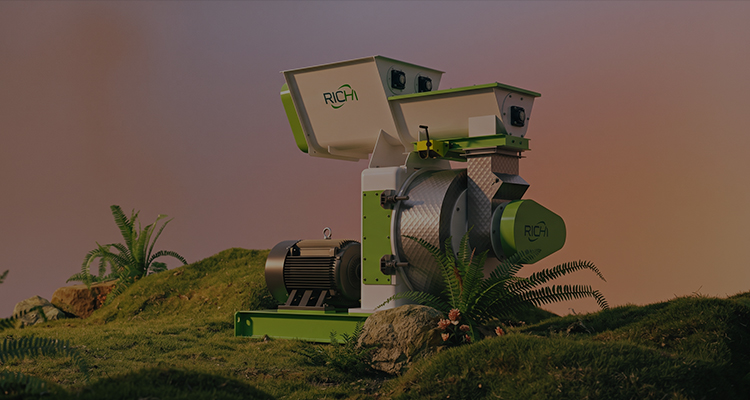

3 T/H Chicken Manure Pellet Machine Undergoes Trial Run Before Shipment

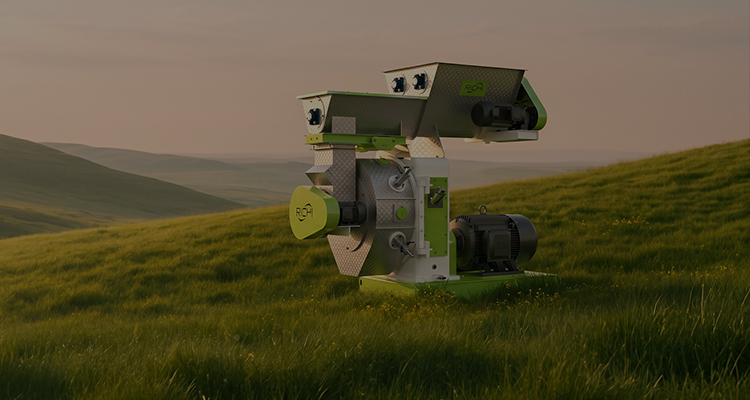

6 T/H Chicken Manure Pellet Machine in Romania
Core Advantages of Chicken Manure Pellet Machine
Why is RICHI’s chicken manure pellet machine so good? We won’t make any guarantees to customers without solid evidence. Every detail of its design is aimed at serving the customers.
The frame of this chicken manure pellet machine is thickened, with good rigidity. It runs with little vibration, and the key components such as the ring die and the press roller can work stably. In case of blockage or overload, the overload protection device will automatically start: the safety pin is disconnected, the limit switch triggers to stop the machine, so that the ring die, the press roller, and the gearbox will not be damaged. In addition, the machine itself has a forced lubrication and cooling system, and it is not easy to suddenly stop during normal operation.
High Efficiency and Energy Saving
The raw material fibers of EFB are relatively coarse. After a series of granulation processes, many components will be involved, and over time, the core granulation components will inevitably suffer wear. To minimize wear and extend the equipment’s service life, the ring die we use is forged from 42CrMo alloy steel and has undergone carburizing hardening treatment on the surface, with a hardness of HRC 58–62. Its wear resistance is much higher than that of ordinary stainless steel, perfectly matching the coarse fiber raw materials.
Safe and Durable
Whether it is combined with straw, rice husk, or soybean meal and other raw materials, the intelligent chicken manure pellet machine can handle them easily. As long as the moisture content of the raw materials is controlled within a certain range, there will be no problem. If you want to change the pellet diameter, simply replace the ring die with different hole diameters, and the compactness of the pellets can be adjusted by changing the compression ratio, with the compression ratio range being 1:10 – 1:18.
Flexible Adaptation
The fibers of chicken manure are relatively long, and the mixed raw materials in the early stage are also relatively coarse and hard, which is easy to wear out the equipment. To address this situation, we use ring dies forged from 42CrMo alloy steel, which have undergone carburizing hardening treatment on the surface. The hardness of the ring die can reach HRC58–62, which is much more wear-resistant than ordinary stainless steel. Even if it operates under high load for a long time, the key components are not prone to damage, and the overall lifespan of the equipment is very long.
Durable and Long-Lasting
Application Scope of Chicken Manure Pellet Machine
Our chicken manure pellet machine covers a production range from 1 ton per hour to 26 tons per hour, and can stably produce pellets with diameters of 4-12mm. Below, we have sorted out three typical application scenarios according to the size of the machine models.
Small-Scale for Personal Use
Solves the problem of chicken manure disposal for small-scale poultry farms.
Compatible models: FZLH250 / FZLH320 (1-3T/H)
Suitable for small-scale poultry farms, family farms, or free-range farmers. If you dislike the stench of chicken manure piled up and find it troublesome to handle and costly to dispose of, you can consider these two models of chicken manure pellet machine. It can turn your own chicken manure into organic fertilizer pellets, which can be directly used in orchards and vegetable fields. The operation is simple, and one person can manage it.
Medium-Scale General Model
Balances personal use and local organic fertilizer sales.
Compatible models: FZLH350 / FZLH420 (3-8T/H)
Suitable for medium-sized poultry farms, breeding cooperatives, or local merchants who want to do organic fertilizer business. You can turn your own chicken manure into pellets to meet the fertilizer needs of planting bases and farmers around the farm. At the same time, you can also sell the excess pellets, turning “waste” into stable income.
Large-Scale for Mass Production
Supports large-scale breeding groups and organic fertilizer factories.
Compatible models: FZLH520 / FZLH678 / FZLH768 (9-26T/H)
These models of chicken manure pelletizers are more suitable for large-scale breeding groups, large-scale organic fertilizer production enterprises, or projects connecting agricultural parks. These scenarios all require equipment that can operate continuously for a long time. These large-capacity models can produce pellets that are uniform in quality and have stable fertilizer effects, meeting the quality and production capacity requirements of large-scale orders.
Chicken Manure Production Line
Some customers mistakenly believe that by purchasing a chicken manure machine, they can simply produce chicken manure pellets. However, it is far from that simple. Starting from the raw materials entering the factory, to the final packaging and bundling, there are many other steps in between. RICHI not only have chicken manure pellet machine for sale, but can also provide all the equipment for the entire production line for you. This way, you don’t have to worry about anything from start to finish.

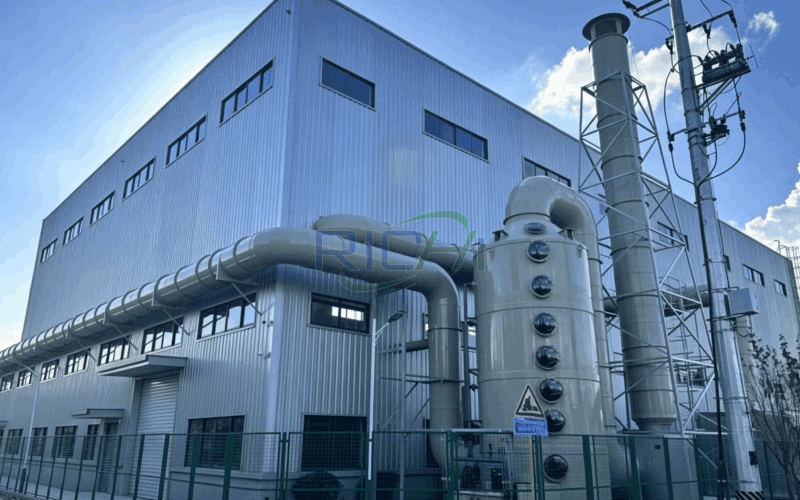

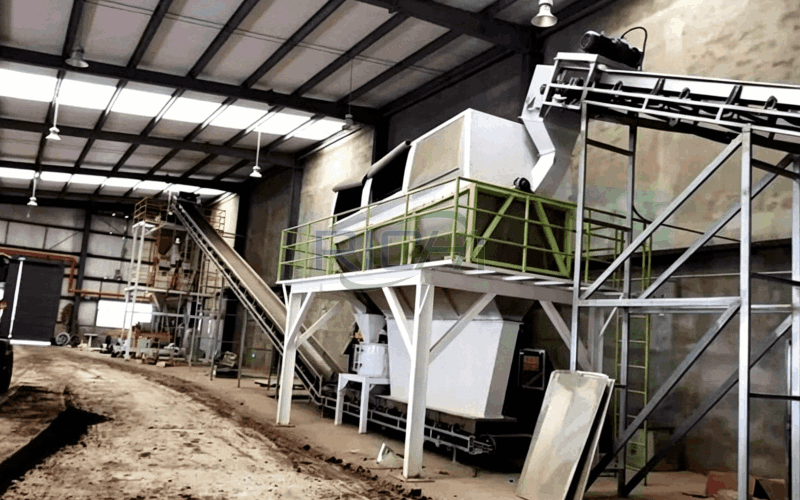

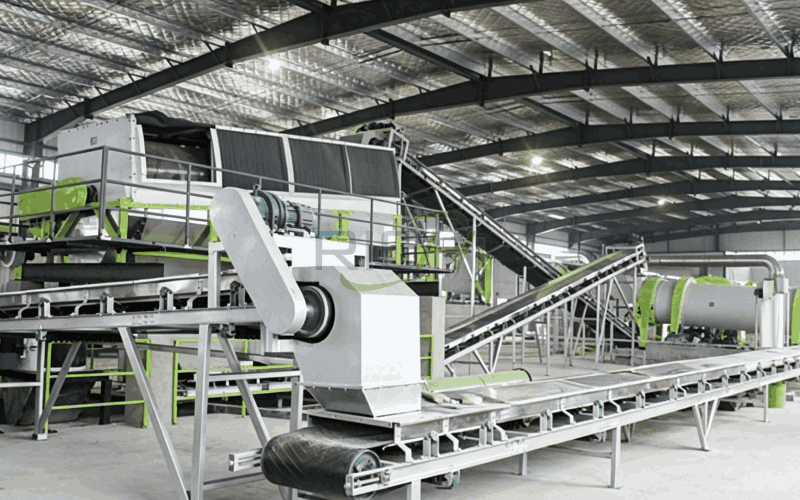

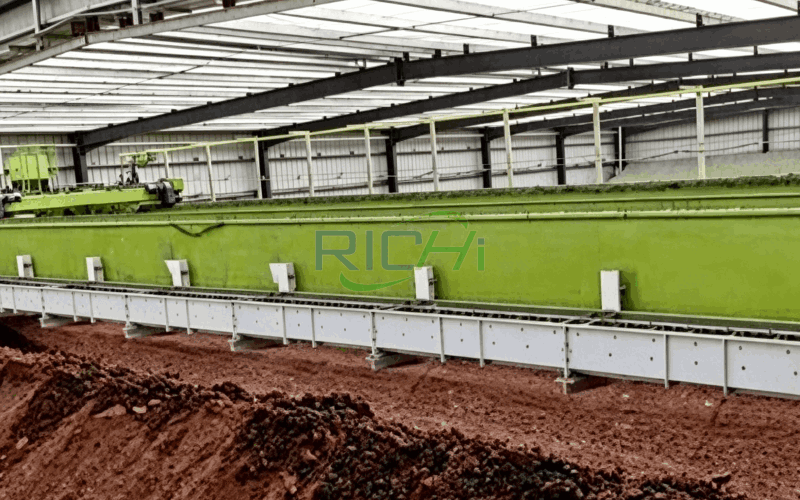

Global Pellet Plant Project
Here are several cases of our chicken manure pelletizers being implemented overseas by smart enterprises. Each customer had their own problems, but they were all solved by using our pelletizers. Perhaps these cases can provide some references for you when choosing equipment.
Service Process
RICHI will carry out various steps such as formulating an exclusive plan in the early stage, supervising the quality of equipment in the middle stage, and following up on after-sales services in the later stage. It will act as your dedicated “personal assistant” to ensure that every aspect from demand connection to equipment production and delivery is carried out efficiently and under control.
Project Experience
30+
Years
Countries and Regions Served
140+
Projects Delivered
2000+
Factory Area
100,000+
㎡
About Us
Henan RICHI Machinery Equipment Co., Ltd., established in 1995, primarily focuses on the research and development and manufacturing of feed machinery, biomass pelleting equipment, organic fertilizer pelleting equipment, and complete pelleting production lines. After more than 30 years of development, RICHI has become a professional pelleting machinery manufacturer. Our products are exported to over 140 countries and regions worldwide, earning the trust of customers both domestically and internationally.
Qualification Advantages
RICHI boasts numerous international authoritative certifications and patents, including ISO9001, CE, SGS, and TÜV. This means that the equipment you purchase can smoothly pass through customs and quality standards in various countries, with no customs clearance risks and compliant delivery. Choosing RICHI means choosing a guarantee of smooth global access and worry-free production.
FAQ
Here are common questions from customers – maybe you’ve got the same ones. Feel free to ask more.
Can fresh chicken manure be directly put into the chicken manure pellet machineto be made into pellets?
→
No, that’s not possible. The fresh chicken manure has too much moisture and contains a lot of impurities, as well as a large amount of easily decomposable organic matter and pathogenic bacteria. Direct pelletization would easily lead to mold growth and clog the equipment, preventing the formation of pellets. Therefore, it is necessary to first undergo fermentation and decomposition to control the moisture content of the chicken manure within a certain range.
Can only buying one pelletizer produce the product? Or is it necessary to have a complete production line?
→
If you are only for small-scale self-use and only need simple screening, manual feeding, and have a low quality requirement for the pellets, you can consider purchasing a pelletizer separately. If you are selling chicken manure organic fertilizer pellets externally or have a high quality requirement for the pellets, it is better to have a complete production line. This will result in a larger output, more stable quality of the pellets, and bring you better benefits, which is also in line with market standards.
How to deal with the odor produced during the pelletization of chicken manure?
→
During the pelletization of chicken manure, the main odor comes from the raw materials themselves and the foul gases such as ammonia and hydrogen sulfide produced during the pre-treatment process. If you want to effectively eliminate the odor, you can try the following methods:
The raw materials should be processed promptly and should not be piled up for a long time, as this can lead to excessive degradation.
The storage area for chicken manure raw materials can use a sealed silo, and be equipped with ventilation devices.
During the mixing stage of chicken manure raw materials, reasonably controlling the moisture content of the raw materials can reduce the foul odor produced by anaerobic degradation.
In addition to these, doing a good job in the fermentation of chicken manure at the source and allowing it to fully decompose can also help reduce the foul emissions during the pelletization process.
As a first-time buyer of a chicken manure pellet machine, what should I pay attention to?
→
As a pellet equipment manufacturer with over 30 years of production and sales experience, we are very clear about the concerns of our customers and know which points can bring you the greatest benefits.
Clarify the characteristics of your raw materials, such as moisture content, fiber content, and your production capacity requirements. Informing us of these will help our technicians match the most suitable model for you, avoiding “overloading a small vehicle” or “loading a large vehicle with a small one”.
Don’t just focus on the price. You should also pay attention to the material of the ring die of the pelletizer, as well as the power of the motor and whether it matches your production capacity.
In addition to the product itself, you should also pay attention to the after-sales service. It is recommended to choose a manufacturer that can provide installation and commissioning, operation training, and rapid supply of spare parts. We at Ruiciqi can all meet these requirements.
If possible, we also suggest that you visit the production factory in person, conduct a trial run of the equipment, and observe the molding effect of the chicken manure pellets. We welcome you to visit us in person. If distance restrictions apply, you can also send samples to us, and we will help you conduct a trial run and tell you about the pellet effect.
What types of chicken manure pelletizers are there? Which one do you recommend?
→
The common types on the market include disc pelletizers, drum pelletizers, extrusion pelletizers (roller type/flat type), and ring die compression pelletizers.
If you need to process materials with a lot of coarse fibers and relatively low viscosity, such as chicken manure, we recommend the ring die compression pelletizer. This is also our main model, and its press rollers and ring die can form a strong compression force, resulting in compact pellets that do not require additional adhesives and are less likely to clog the chicken manure pellet machine. The ring die also has a long service life.
