Product Introduction

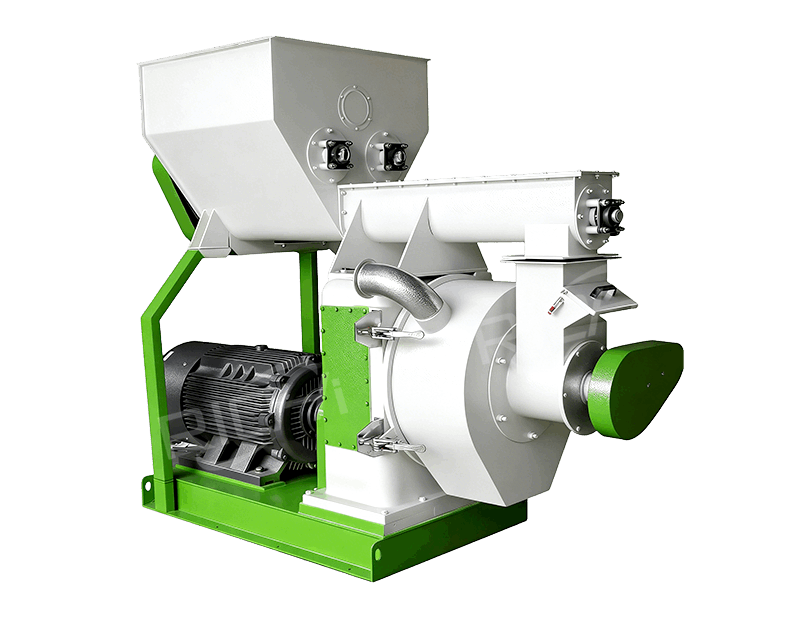

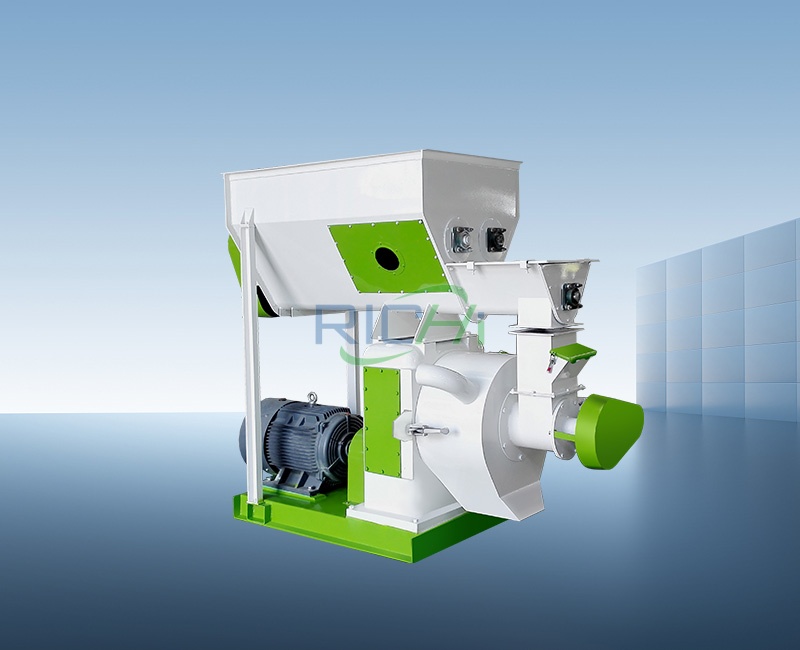

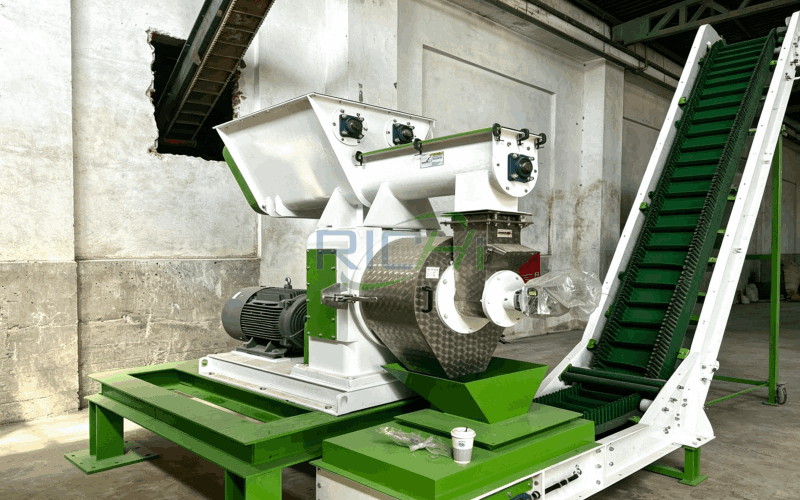

Rice Husk Pellet Making Machine
Capacity: 0.2-4 T/H
The rice husk pellet machine is a biomass pellet maker. It takes loose, fluffy rice husks and presses them into dense, stable pellets. You can burn these pellets in home heaters, industrial biomass boilers.This machine works well with other equipment like crushers, coolers, and baggers. So you can set up a full production line for rice husk pellets.
Need one? Get in touch. RICHI has 30 years of experience in manufacturing husk pellet machines. We have served customers in over 140 countries. We are confident we can meet your needs.
Videos of Rice Husk Pellet Making Machine
The video below shows you how rice husk pellet making machines with different capacities perform on actual production lines. We’re sharing real videos from our customers in Romania and Madagascar. If you have similar production needs, feel free to reach out to us anytime.

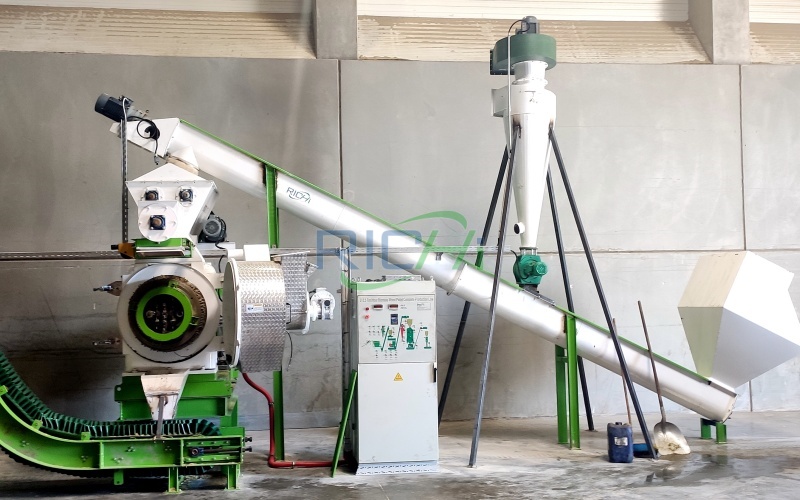

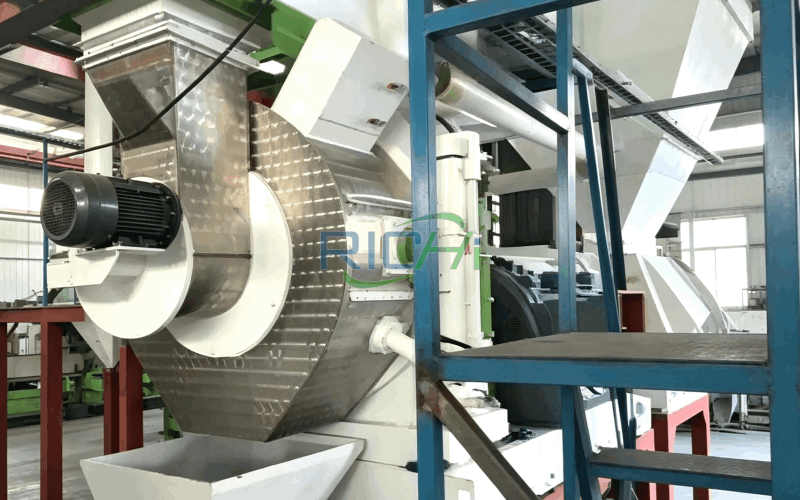

2 T/H Rice Husk Pellet Making Machine in Romania

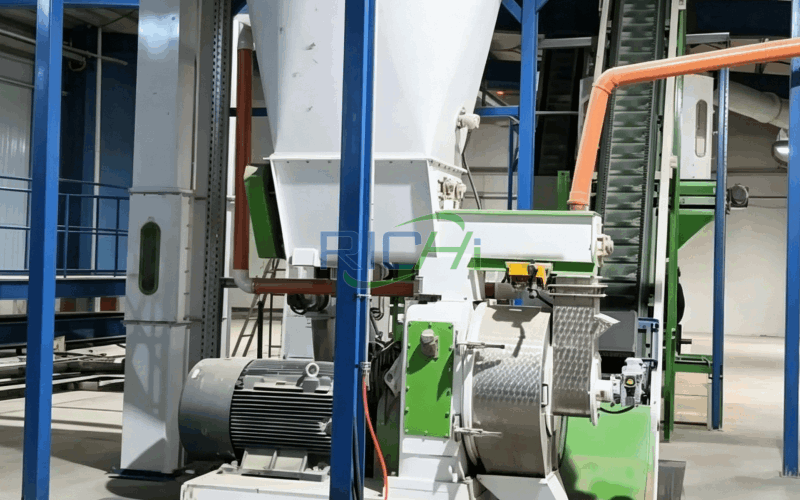

3 T/H Rice Husk Pellet Making Machine in Madagascar
Components of Rice Husk Pellet Machine
Rice husks are light, fluffy, and have low fiber toughness. That makes them tricky to pellet. If your machine isn’t up to the job, you will get clogs, bridging, or poor quality pellets. Our rice husk pellet making machine solves those problems. The core parts are designed for rice husks.
Feeding Structure
Rice husks are light and fluffy, so they tend to pile up and clump together after you feed them into the inlet. That leads to bridging and arching, which in turn makes the feed uneven going into the rice husk pellet making machine and cuts into your final output.
That’s why we’ve installed a variable‑frequency arch‑breaking feeder at the inlet. It uses double rollers to break up any clumps of husk material. And with the variable frequency drive, you can adjust the feed speed flexibly based on how the husks are flowing. This stops clogging and feed interruptions at the root, and keeps the material moving into the pelleting chamber continuously and evenly.
Forced Feeder
Smooth feeding alone isn’t enough for rice husks. If you rely just on their own weight, they drop too slowly and sometimes get stuck between the feed inlet and the pelleting chamber. So we also designed a forced feeder to address this.
The forced feeder mainly uses spiral blades to actively push the material forward. It takes the material coming in from the inlet and pushes it forcefully and at a consistent speed into the pelleting chamber. This keeps the material flowing without interruption and ensures the rice husk pellet making machine keeps running under standard load.

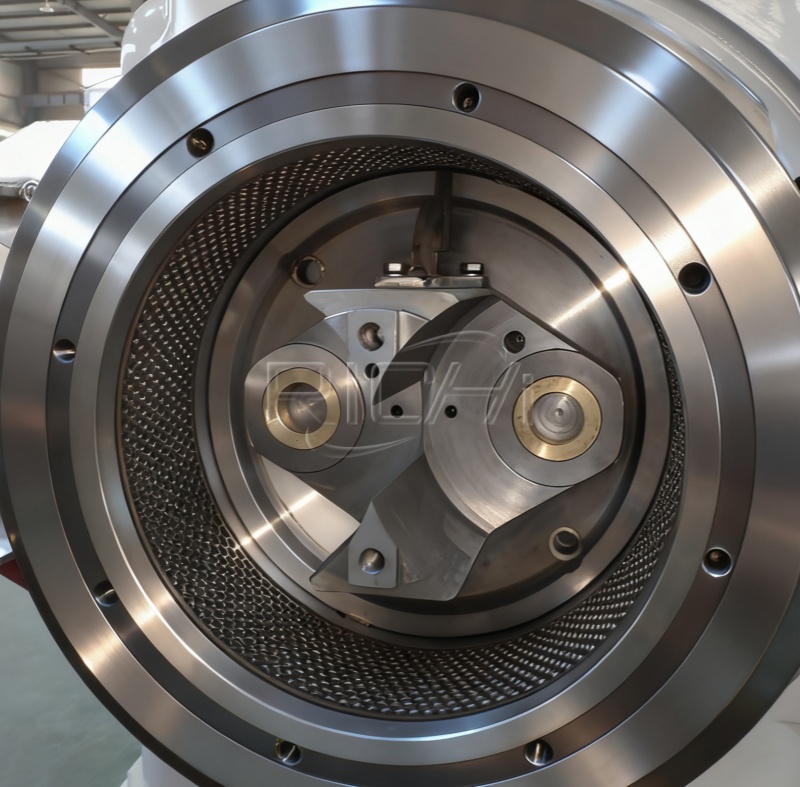

Pelleting Chamber
The pelleting process comes down to three main parts working together: the pressure rollers, the ring die, and the cutter.
Our rice husk pellet making machine uses specialized biomass rollers. The grooves on their surface grip the smooth rice husk material firmly, so you don’t get any slipping during compression.After the rollers press the material, it goes through the ring die holes and comes out as long, uniform-diameter strands. The cutter then chops those strands into equal-length pellets.
You can also adjust how dense the pellets are and how long they end up. Density comes down to changing the ring die’s compression ratio, and pellet length is controlled by the number of cutters you use – so you’ve got flexibility to match your needs.
Parameters of Rice Husk Pellet Making Machine
Over the years, we’ve served more and more customers and learned about all kinds of different needs for rice husk pellet making machines. So we keep improving our technology and have developed a wider range of rice husk pellet machine models to match. Below you’ll find some standard specs. Different hourly capacity leads to different rice husk pellet machine price, contact us for detailed quotation.
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Main Motor Power (kW) | 22 | 37 | 90 | 132 | 200 | 250 |
| Anti-bridge Feeder Power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4-12 | |||||
| Output (T/H) | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
Note: The output numbers above are for a full production line under rated conditions. Real-world output depends on the raw material and its moisture content. Do not take them as absolute guarantees.
Rice Husk Pellet Making Machine Customer Cases
We’ve kept pushing our technology forward, and it’s paid off – many customers now trust our rice husk pellet making machines. They don’t just buy the machine – they also integrate it into their full production lines and get better economic returns as a result. Below are some real customer case studies for you to take a look at.
Advantages of Rice Husk Pellet Making Machine
To save you from the hassle of frequent repairs, we’ve designed our rice husk pellet mills with durability in mind. From the materials used in key components to the drive system and safety features, every part is built to last – so the machine’s advantages really stand out.
This rice husk pellet making machine’s ring die is made of 42CrMo alloy steel with a carburized, hardened surface. Its hardness is HRC 58–62, which is much more resistant to constant wear from rice husks than standard stainless steel dies.
The holes are precision-machined, with an inner surface finish of Ra ≤ 0.8 µm. That means the material flows out smoothly and does not stick. The compression ratio is adjustable from 1:10 to 1:18. By swapping the ring die to a different hole size, you can match different uses.
High Efficiency and Wear Resistance
Pressing hard rice husks takes serious force. RICHI’s rice husk pellet making machines use Siemens motors, ranging from 22 kW up to 250 kW, matched to the model. The high-precision gearbox with ground gears gives good transmission efficiency and low noise. These machines can run 24/7 at full load without overheating or slowing down.
Powerful Performance
The body is built from heavy, thickened steel plates, so it is very rigid. Even under high-frequency vibration, the machine stays stable, and parts do not wear out as fast.
If a hard object jams the rice husk pellet making machine, or material gets blocked, or there is an electrical overload, a built-in shear pin breaks and a limit switch cuts the power. That stops the ring die and rollers from getting damaged, keeps repair costs down, and protects the operator.
Multiple Safeguards
Applications of Rice Husk Pellet Making Machine
Below we’ve laid out how RICHI rice husk pellet making machines fit different production scales. You can use this as a reference when choosing your model. No matter which scale you’re at, we support pellet size adjustment from 4 to 12 mm to suit your needs. If you have any other special requirements, just reach out – we’re happy to offer free, expert advice.
Small-Scale Production

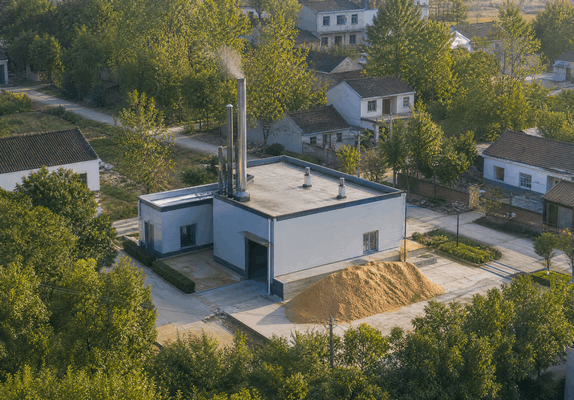

Suitable For: farmers with their own rice husk supply, small biomass fuel workshops, and small heating boiler users in rural towns
Capacity Range: 0.2 – 0.5 T/H
Models: MZLH320, MZLH350
Advantages: The main motor runs at 22–37 kW, so you can power it with standard mains electricity. The ring die has a small inner diameter, and the machine doesn’t take up much space – you won’t need a large site. The investment cost is low, and operation is simple. That makes it a great fit for on‑site rice husk processing or supplying nearby small boilers.

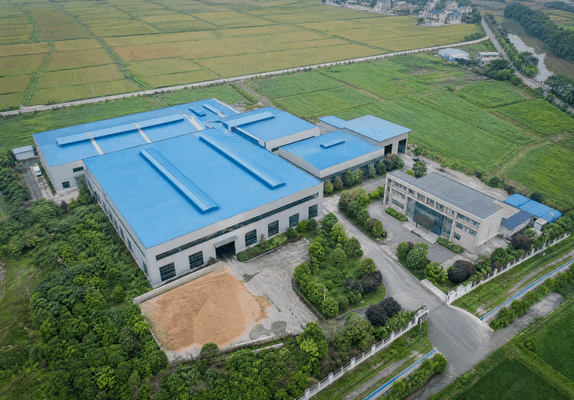

Medium-Scale Production
Suitable For: regional biomass pellet plant project, medium‑sized district heating companies, and stable pellet fuel suppliers
Capacity Range: 1.0 – 2.0 T/H
Models: MZLH420, MZLH520
Advantages: You’ll get 3‑4 times the output of smaller models, while the energy increase stays within a manageable range. That means the power consumption per ton is more competitive. The ring die sizes on these two models match mainstream fuel pellet specifications nicely. And with a reinforced feeding system, they handle long‑fiber rice husks easily – giving you consistent, stable output.
Large-Scale Production

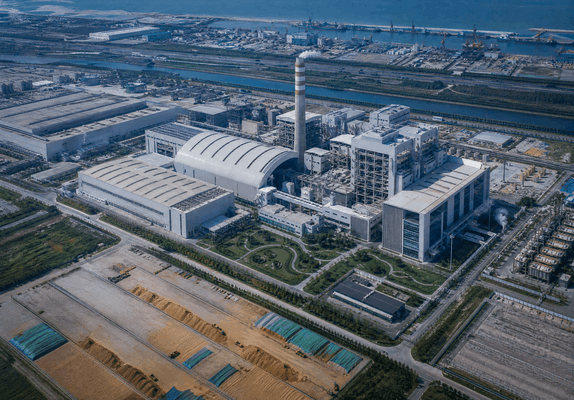

Suitable For: large biomass power plants, pellet fuel export processing bases, and large‑scale centralized energy supply enterprises
Capacity Range: 2.5 – 4.0 T/H
Models: MZLH678, MZLH768
Advantages: These two rice husk pellet making machines come with extra‑large ring dies (673–762 mm). The pellets they produce are denser and more durable, which fully meets the quality standards for power plants or exports. Yes, the single‑unit power is higher – but when you spread that cost across each ton of finished product, the electricity cost per ton is actually quite low. That makes them a perfect choice for large‑scale operations running continuous production over the long term.
Rice Husk Pellet Production Process
From rice husk to finished pellets, a single rice husk pellet making machine just isn’t enough. RICHI also offers a full range of supporting equipment. This covers every stage – from raw material pretreatment right through to weighing and packaging.
Our Service Process
Buying a rice husk pellet making machine is not like buying clothes. You pay, receive, and use it. But with large production equipment, you also have to consider whether the solution makes sense, if the quality is solid, and how after-sales works. One problem at any stage can hurt your bottom line. RICHI provides full service, from custom design to after-sales support, so you don’t have to worry.
Project Experience
30+
Years
Countries and Regions Served
140+
Projects Delivered
2000+
Factory Area
100,000+
㎡
About Us
Henan RICHI Machinery Equipment Co., Ltd., established in 1995, primarily focuses on the research and development and manufacturing of feed machinery, biomass pelleting equipment, organic fertilizer pelleting equipment, and complete pelleting production lines. After more than 30 years of development, RICHI has become a professional pelleting machinery manufacturer. Our products are exported to over 140 countries and regions worldwide, earning the trust of customers both domestically and internationally.
Qualification Advantages
RICHI boasts numerous international authoritative certifications and patents, including ISO9001, CE, SGS, and TÜV. This means that the equipment you purchase can smoothly pass through customs and quality standards in various countries, with no customs clearance risks and compliant delivery. Choosing RICHI means choosing a guarantee of smooth global access and worry-free production.
FAQ
Below are answers to common questions from past customers. You might have the same ones. If not, feel free to reach out anytime.
What raw materials can the rice husk pellet making machine process?
→
RICHI’s rice husk pellet making machine is designed for rice husks. It can also handle a small amount of rice straw or broken rice, but the main material should be rice husks. They need to be crushed and dried before pelleting.
Rice husks vary in moisture and fiber content. Can one machine handle them all?
→
Yes. You just adjust the roller speed and the ring die’s compression ratio based on the specific rice husk condition. No need to swap out core components.
How much electricity per ton of rice husk pellets?
→
It depends on the material and conditions. Take the MZLH420 with rice husks as an example. Its main motor is 90 kW. At full load, expect roughly 70–90 kWh per ton. Our husk pellet machines use high-efficiency Siemens motors with precision gearboxes, so energy consumption is relatively low. Contact us with your raw material info, and our tech people can run a cost calculation for you.
How should I adjust the gap between the rollers and the ring die?
→
Our rollers use an eccentric shaft design, which makes it easy to adjust the gap. Aim for 0.1 to 0.3 mm. At that setting, the ring die can just barely turn the rollers. They are almost rotating, but not too tight.
Do you provide technical guidance after purchase?
→
Of course. We offer full technical support, including processing parameters for different rice husk conditions (pre-treatment, moisture control, compression ratio matching, etc.). We have 24/7 remote guidance. If needed, we can also do on-site installation and commissioning, plus training for your operators.
