Bagasse Pellet Mill

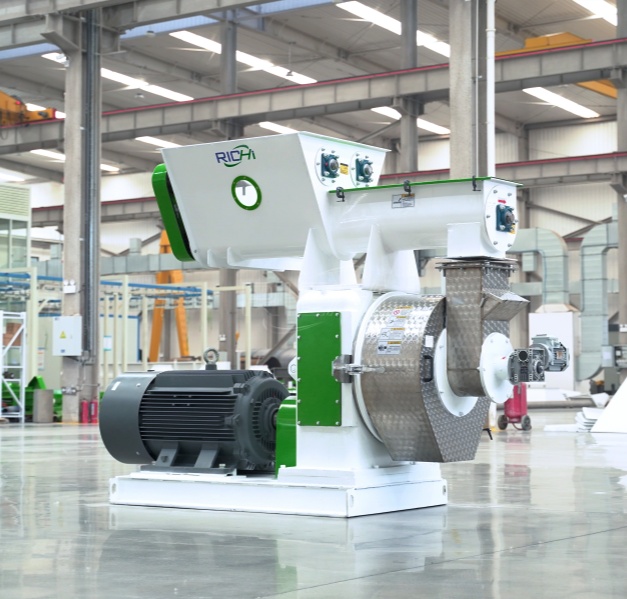

High-Efficiency Bagasse Pellet Mill
A bagasse pellet mill is a specialized biomass pellet mill. It processes bagasse into uniform pellets. These finished pellets can be used as fuel, ruminant feed, and organic fertilizer. Fuel is the most common and widespread use. The high efficiency and wear resistance of the bagasse pellet machine can bring considerable economic benefits to customers. At present, it has become one of the most popular pellet mills in the pellet market.
4-12 mm
Pellet Diameter
0.2-4 T/H
Production Capacity

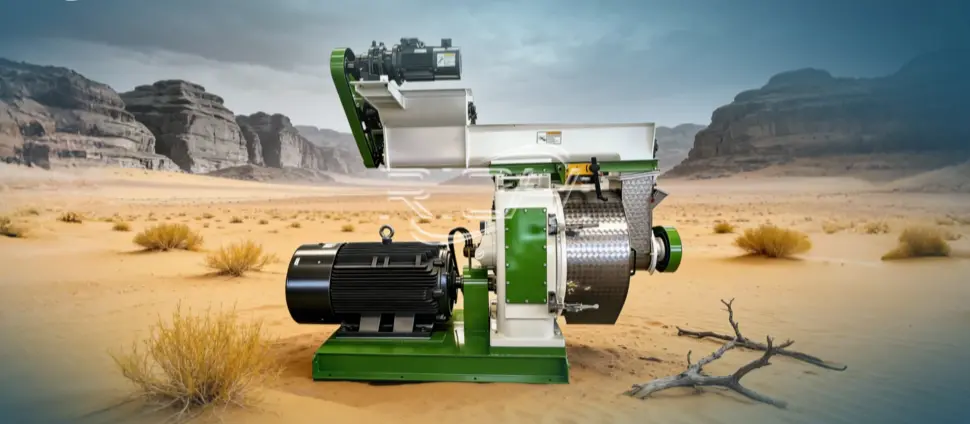

Bagasse Pellet Mill Unique Design
To better process long-fiber, fluffy raw materials like bagasse, a pelletizing machine must have some outstanding features. The RICHI bagasse pellet mill has several important components. They may not look prominent, but they play an important role in efficient pelletizing.
Feed Inlet
The feeding port has been widened. It is equipped with a double-roller arch-breaking device. This makes feeding smoother per unit time. Raw materials will not arch or bridge.
Forced Feeder
The forced feeder is powered by an electric motor. It “forces” raw materials into the pelletizing chamber. This prevents blockages and poor material feeding.
Ring Die
Made of 42CrMo alloy steel, it has high wear resistance. The diameter of the circular hole on the ring die can be customized, allowing the production of pellets of different diameters by changing the ring die.
Pressure Roller
Biomass-specific pressure rollers offer strong material gripping capabilities, heavy-duty performance, and dust protection , making them perfectly suited for high-silica, long-fiber materials like bagasse.
Cutter
The cutter allows you to change pellet length by adjusting the knife spacing. Its edge can prevent fiber from wrapping around it. The cut is clean. The pellet powdering rate is low.
Safety Pin
Its main function is to protect the bagasse pellet machine. If the machine is overloaded, the safety pin will shear off, triggering the protection mechanism.
Bagasse Pellet Mill Application
Bagasse pellet mills are suitable for a wide variety of scenarios. Below are some common application ranges. If you meet any one of the following, you can consider using a bagasse pellet machine to gain extra income.
Sugar Mills
Sugar mills produce a large amount of bagasse after sugar extraction. A sugarcane trash pellet machine can solve the problems of difficult bagasse storage and handling. It can also address the tendency of bagasse to self-ignite. Bagasse is suitable for making fuel pellets. These pellets can be co-fired in boilers or sold to power plants. This increases revenue from by-products.
Biomass Fuel Companies
These companies mostly buy bagasse from nearby sources. They mix bagasse with raw materials such as rice husks and wood chips. Then they pelletize the mixture into commercial pellets at scale. They sell these pellets to biomass power plants, industrial boiler operators, and other customers.
Organic Fertilizer Processing Plants
Bagasse can serve as a raw material for organic fertilizer. After undergoing fermentation and decomposition, it is processed into organic fertilizer pellets using a pelletizing machine, which are then used for the cultivation of fruits, vegetables, and cash crops.
Large Cattle and Sheep Ranches
During the dry season, when roughage (forage) is often in short supply, large-scale livestock farms can utilize bagasse—mixed with additives like molasses and urea—to produce roughage pellets. This helps reduce the costs associated with purchasing external feed.
Sugarcane Plantations
Plantations can process sugarcane waste—such as cane tops and leaves—on-site. By converting this waste into fuel pellets for internal use or commercial sale, they can repurpose agricultural residues while simultaneously lowering costs related to transportation and storage.
Bagasse Pellet Mill Parameters
Most customers use bagasse pellet mills to make fuel pellets. Therefore, we mainly promote the MZLH series. We have designed and developed the models shown below. If you need to produce organic fertilizer pellets or other pellets, you can also contact us for customized solutions.
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Main Motor Power (kW) | 22 | 37 | 90 | 132 | 200 | 250 |
| Anti-bridge Feeder Power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4-12 | |||||
| Output (T/H) | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
Note: The above output data is the output of the entire production line under rated working conditions. Actual output depends on the raw materials and their moisture content. Please do not regard it as an absolute guarantee.
Bagasse Pellet Mills Global Case Studies
RICHI has long kept a global perspective. It fully considers the resources and actual conditions of different countries. It has helped thousands of customers customize bagasse pelletizing solutions and successfully implement them. The following are several representative cases.

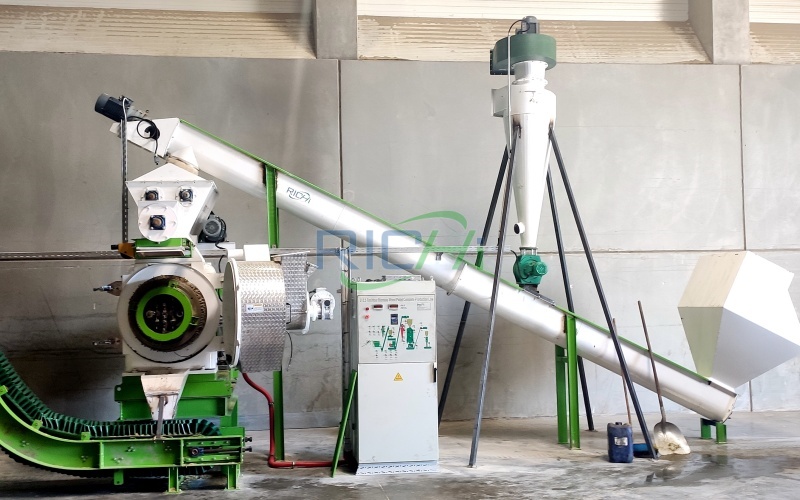

2.5 T/H Bagasse Pellet Mill in India
Raw materials: bagasse, rice husks, cotton seeds
Pellet diameter: 6-8mm
The customer is a sugar mill in India. Around it, there are power plants that need biomass fuel. After purchasing a bagasse pellet making machine, the customer turned waste bagasse into fuel pellets. These pellets are supplied to these power plants for co-firing. Thanks to the stable operation of the equipment, the bagasse from the customer’s factory now has a stable market.
4 T/H Bagasse Pellet Machine in Brazil
Raw material: bagasse
Pellet diameter: 6-8mm
Many factories in Brazil have bagasse cogeneration. Their boilers can basically balance their own fuel needs. Therefore, the customer purchased our bagasse pellet mill mainly to process excess bagasse from the crushing season into commercial pellets for sale. The customer pays great attention to pellet density and durability. This makes long-distance transport and bagged storage easier.

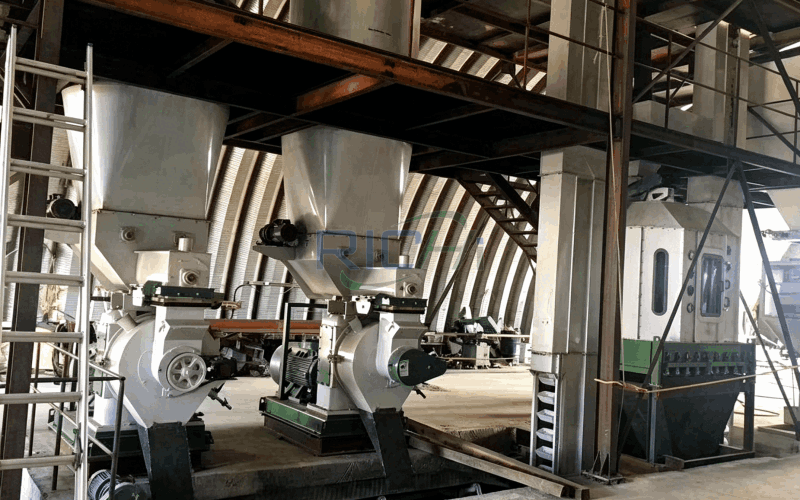

3 T/H Bagasse Pellet Making Machine in Thailand
Raw materials: bagasse, a small amount of sawdust, palm shells
Pellet diameter: 6-8mm
Due to the local climate, bagasse moisture content is relatively high during the rainy season. The customer needed to solve the anti-blocking problem for high-moisture materials. They wanted to make bagasse into pellets for a nearby biomass power plant. Results proved that after production started, the customer could produce continuously even in the rainy season. The calorific value of the pellets was also stable enough.

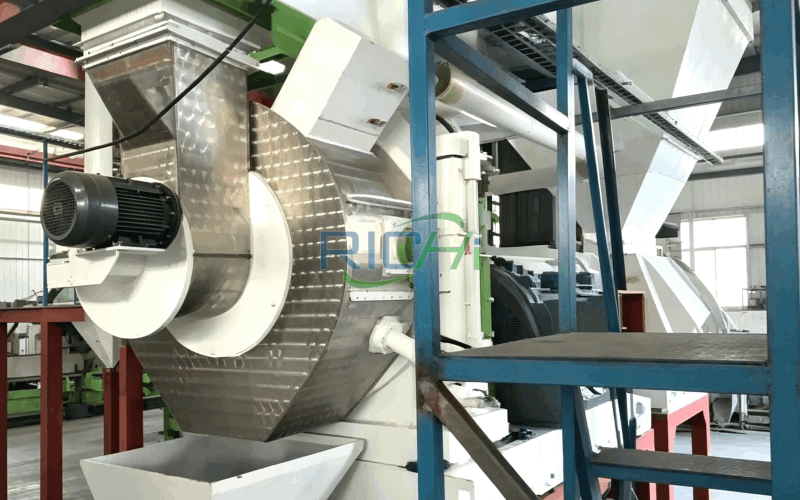

2 T/H Bagasse Pelletizer in Vietnam
Raw materials: bagasse, sawdust, rice husks
Pellet diameter: 6mm
The customer is an export trader. They have long purchased bagasse and used it as raw material to process high-density fuel pellets. These pellets are exported to biomass power plants in South Korea. We optimized the bagasse pellet machine for the customer. This ensures pellet density and prevents breakage during container transport.

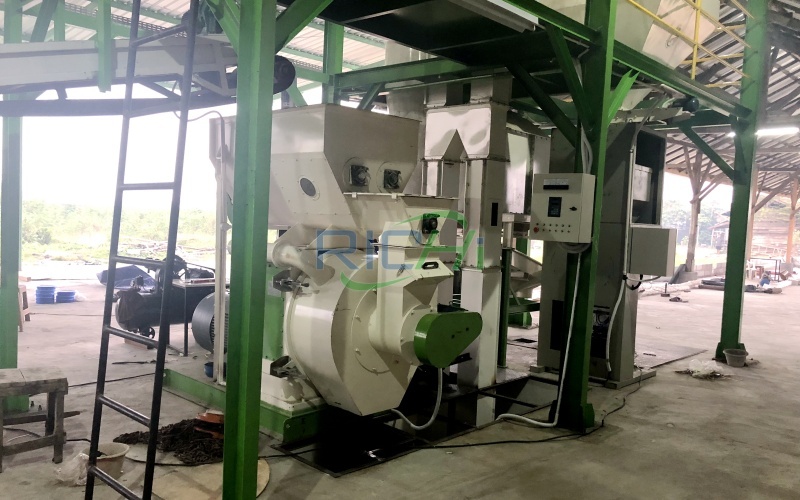

1.8 T/H Bagasse Pelleting Machine in Indonesia
Raw materials: bagasse, a small amount of palm shells
Pellet diameter: 6-8mm
The customer initially considered an EFB pellet project. But the EFB track is highly competitive. Raw material costs fluctuate greatly. Investment returns are unstable. The customer is located in the sugarcane-producing area of East Java. Therefore, they finally chose to use a bagasse pellet press to produce fuel pellets. These pellets are sold to nearby power plants for co-firing.

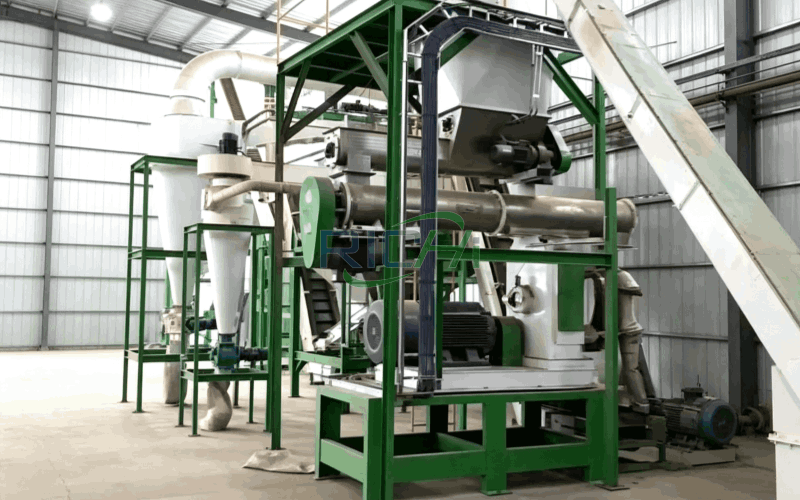

2 T/H Bagasse Pellet Machine in Kenya
Raw materials: bagasse, molasses, urea, minerals
Pellet diameter: 6-8mm
This is a sugar mill in western Kenya. Around it, there are many ranches and farmers raising cattle and sheep. In the dry season, roughage is scarce. The customer wanted to use our machine to make ruminant feed pellets. We customized a conditioner for them. It softens the bagasse fiber. The pellets made in this way also have better palatability.
Bagasse Pellet Mill Advantages
As a global professional pellet equipment supplier, RICHI has put great effort into bagasse pellet making machines. This effort has created excellent performance and features. These advantages can help you reduce overall production costs and gain more profits.
Common bagasse pellets on the market are 6mm, 8mm, 10mm, and 12mm. Our bagasse pellet machine supports adjustable ring die hole diameter. Ring die replacement is also simple. It can produce bagasse pellets of many common diameters within the range of 4-12mm.
Pellet Size Is Freely Adjustable
The ring die of the RICHI bagasse pellet mill is made of 42CrMo alloy steel. Its surface is carburized and hardened. Its hardness is HRC58-62. Its wear resistance is far higher than ordinary stainless steel. The pressure roller uses an eccentric shaft design. The gap can be precisely adjusted between 0.1-0.3mm. This ensures extrusion pressure and avoids wear caused by direct metal contact. These highlights can extend the overall service life of the machine.
Long Service Life
In addition to the safety pin mentioned above, the overall frame of this bagasse pellet machine has been thickened. It has strong rigidity and low vibration during operation. It provides a stable working platform for the ring die, pressure rollers, and transmission system. Even under high load, they can still work together.
Fully Safe
Bagasse Pellets Production Process
Bagasse pellets for biomass fuel are the most common demand. How can you use a bagasse pellet mill to make high-quality bagasse pellets that burn easily? The following content will reveal the answer. If you want to use a bagasse pellet machine to make pellets for other uses, you can also contact us for solutions.
01.
Crushing
After sugar extraction, bagasse fibers are long and bulky. They need to be crushed into fine powder first. It is recommended to crush them to about 3-5mm. This can break up the tangled fibers. It also makes later conveying and extrusion easier.
02.
Drying
Before raw materials enter the bagasse pellet mill, moisture content must be strictly controlled. The optimal moisture content for pelletizing should be between 12% and 18%. The drying section affects the forming effect of bagasse pellets. If moisture is too high, pellets are difficult to form. If it is too low, die wear will increase.
03.
Pelletizing
This is a key step in making high-quality bagasse pellets. The quality of the bagasse pellet machine used in this step determines the effect of the bagasse pellets. Under the mutual compression of the ring die and pressure rollers, the lignin in bagasse is softened. It acts as a natural binder. This helps pellets form.
04.
Cooling
If you want to reduce the breakage and cracking rate of bagasse pellets during storage and transportation, the cooling process will help a lot. A cooling machine can quickly lower freshly made, warm bagasse pellets to room temperature. This makes the pellet structure more stable.
05.
Screening
The screening step helps you keep the most uniform bagasse pellets. It removes broken pellets, fine powder, and other substandard pellets. We can provide efficient and convenient screening machines. They make the finished product consistent and uniform in appearance. This step plays a big role in optimizing the appearance of the finished product.
06.
Packing
This is the final step in the bagasse pellet production process. This step is used to weigh, bag, and seal bagasse pellets in batches. We can provide packaging tools with different levels of automation. This makes packaging more efficient, reduces labor costs, and reduces bagasse pellet loss.
Auxiliary Equipment for Producing Bagasse Pellets
A bagasse pellet mill is the key machine for producing high-quality bagasse pellets. But it is not the only machine needed. In addition to it, many other auxiliary equipment must work together. You can refer to your needs and decide whether you need to buy them. RICHI can also customize and provide the following.
Bagasse Crusher
Bagasse Dryer
Bagasse Pellet Cooler
Bagasse Pellet Screening Machine
Bagasse Pellet Packaging Scale
Material Conveying Machine
FAQ
If you still have other questions about the bagasse pellet maker machine after reading the above content, please look at the questions and answers summarized below. Or you can contact us directly. Professional engineers will answer your questions.
What are its advantages compared to traditional bagasse pellet machines?
→
Our bagasse pellet mill main unit uses a heavy-duty gear drive. This is different from a belt drive. With the same motor power, output can increase by about 20%. Power loss is lower. It is suitable for long-term continuous production in large factories.
What is the bagasse pellet mill price?
→
Our bagasse pellet mills are priced between $5,000 and $20,000. If you want an accurate quote, please contact us. Tell us your pellet use, required capacity, factory area, and other information. The more detailed the information, the more accurate our quote will be.
Can I preview the pelletizing effect of the bagasse pellet machine?
→
Yes. You can watch on YouTube. Or contact us to get more videos of the bagasse pelleting machine in operation. If you want to see the effect of your raw materials made into pellets with your own eyes, you can also send raw materials to our factory. We will provide you with synchronized finished product results.
What is the warranty period for a bagasse pellet making machine?
→
RICHI provides a 12-month warranty for customers who purchase a bagasse pellet equipment. As long as the fault is not caused by human factors, you can contact us for free repair. Please note that wearing parts such as the ring die, pressure roller, and cutter are not covered by the warranty. Our factory has sufficient original spare parts. If you need them, you can also contact us to purchase.

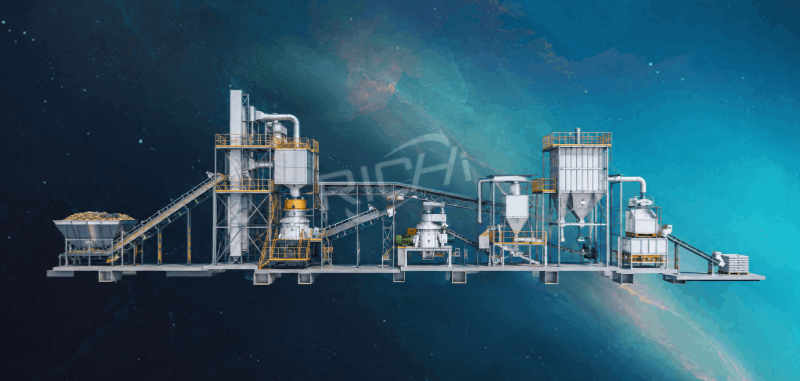

Can you provide a turnkey project for a complete bagasse pellet production line?
→
Yes. In addition to providing a standalone bagasse pellet machine, RICHI can also help customers with process layout, equipment manufacturing, on-site installation and commissioning, personnel operation training, and later technical support. We provide a one-stop solution.
