Paper Pellet Press
Arch-Breaking Paper Pellet Press
If you have a lot of waste paper that you do not know how to use, or if you have a clear pelletizing goal and want to generate income from it, the RICHI paper pellet press can definitely meet your needs. This is a biomass pellet press that can process waste paper into uniform pellets. Its working principle is: under the interaction of the ring die and the pressure roller, loose waste paper is squeezed into shape. It becomes hard pellets that do not break easily.
4-12 mm
Pellet Diameter
0.2-4 T/H
Customized Production Capacity
Paper Pellet Press Finished Products
The RICHI paper pelletizer machine is a versatile machine. The pellets it produces can be used in different applications. If you have any of the following pellet needs, you can consider using a paper pellets machine to achieve them.
Cat Litter
If you are a pet supply processing plant, a pet consumables brand owner, or a pet supply importer, and you want to supply paper cat litter to animal hospitals and pet stores, you can use a paper pellet press to produce cat litter pellets. It can produce low-dust, biodegradable pellets. They will not irritate a cat’s respiratory tract. The finished product is soft and will not scratch a cat’s paw pads.
Animal Bedding
Places that raise large numbers of reptiles and rodents usually consume a lot of bedding. The pellets produced by RICHI paper pellet machines are also suitable for use as cage bedding for rabbits, hamsters, reptiles, and other animals. These pellets have strong odor control, low dust, and are biodegradable. They make cage cleaning convenient.
Biomass Fuel
Some cardboard box factories, packaging plants, and paper product processing plants produce a large amount of corrugated paper scraps during production. Long-term accumulation takes up space and poses a safety hazard. In this case, it is very suitable to purchase a paper pellet maker to process internal waste paper. Mix some agricultural and forestry waste to make biomass fuel.
Paper Pellet Press Design Highlights
Waste paper is lightweight and fluffy. This makes feeding difficult and forming difficult. Ordinary paper pellet mill may stop running. Therefore, we have specifically optimized the design of several key components of the paper pellet machine.
Feed Inlet
The opening has been enlarged and widened. A double-roller arch-breaking feeder has been installed to prevent waste paper from arching and bridging.
Forced Feeder
It is used to force shredded, lightweight waste paper into the pelletizing chamber. This prevents blockages and machine shutdowns.
Ring Die
It is made of 42CrMo alloy steel. It has strong wear resistance. It protects the die holes from wear and deformation. It ensures stable pellet output.
Pressure Roller
It is a biomass-specific pressure roller. It has a special groove structure. It has a strong ability to grip materials. It can tightly hold loose paper fibers.
Exhaust Port
The paper pellet press generates heat and paper dust through friction during pelletizing. The exhaust port can expel hot air. It can also remove fine paper dust through negative pressure.
Motor
The high-efficiency Siemens motor is the power source for the whole paper pellet mill. It ensures stable operation throughout the pelletizing process.
Paper Pellet Press Parameters
RICHI has long studied customer needs at different scales and in different scenarios. We have developed a series of paper pellet maker models. Our products keep evolving and innovating. This table can be used as a current reference. To get a more accurate and suitable paper pellet press model, please contact us for further confirmation.
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Main Motor Power (kW) | 22 | 37 | 90 | 132 | 200 | 250 |
| Anti-bridge Feeder Power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4-12 | |||||
| Output (T/H) | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
Note: The above output data is the output of the entire production line under rated working conditions. Actual output depends on the raw materials and their moisture content. Please do not regard it as an absolute guarantee.
Bagasse Pellet Mills Global Case Studies
Thanks to the wide range of applications and superior performance of our paper pellet presses, our products have been exported to over 140 countries and regions worldwide. We have accumulated rich case experience. If you have related pelletizing needs, we have sufficient experience to provide you with solutions.

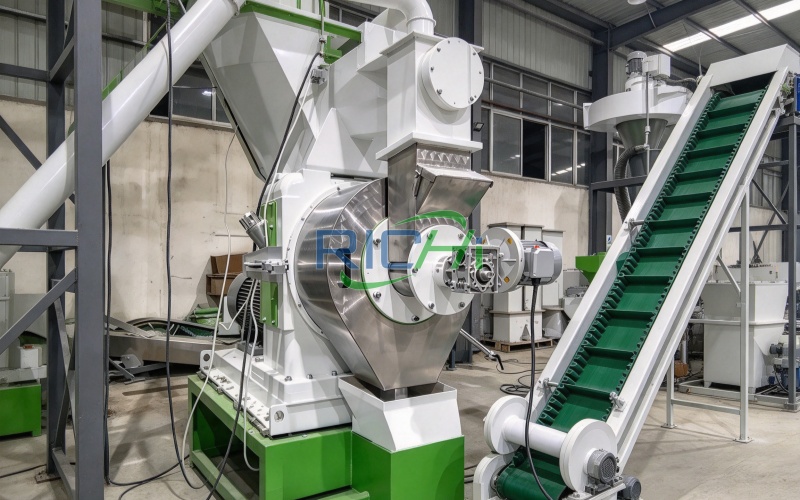

400 KG/H Paper Pellet Press in Mauritius
Raw materials: corrugated cardboard boxes, office waste paper
Pellet diameter: 6 mm
This is a small paper pellet mill project that the customer put into operation in 2022. Shipping to island countries takes a long time. The customer’s site was also compact. We installed a compact base and moisture-proof electrical controls on the paper pellet machine purchased for the customer. This made quick installation easier after arrival at the port. The finished pellets are mainly supplied to pet stores.
1.5 T/H Paper Pellet Maker in France
Raw materials: recycled cardboard boxes, cardboard
Pellet diameter: 4 mm / 6 mm
The customer built a regional paper cat litter brand project. They wanted to produce paper cat litter pellets in different diameters. This paper pellets machine supports quick die changes. It met the customer’s need for flexible switching of pellet diameters. The customer also configured additional discharge cooling and screening machines. The finished product meets the European market’s requirements for dust and pellet appearance.

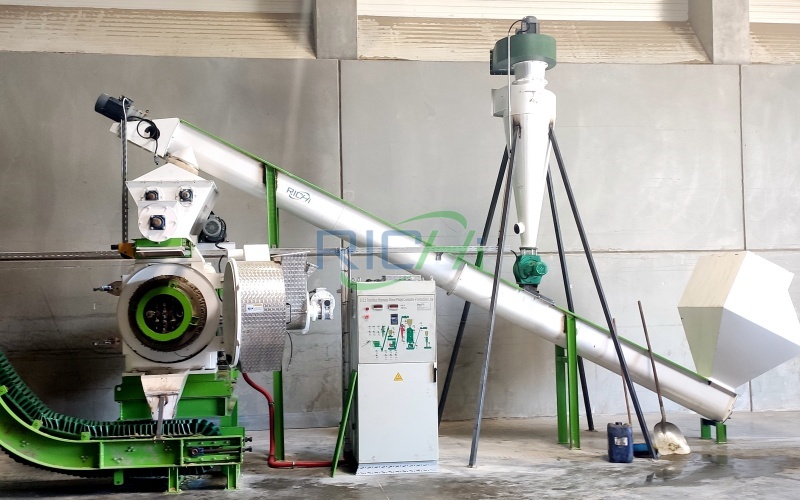

500 KG/H Paper Pellet Press in the Netherlands
Raw materials: recycled cardboard boxes, waste paper, cardboard scraps
Pellet diameter: 8 mm
The customer mainly sells bedding for rodents and reptiles. Local wood shaving bedding costs rose. The customer began to use recycled waste paper to produce paper pellet bedding. The finished product has low dust, absorbs odors, and is biodegradable. It is welcomed by nearby farms and pet stores.

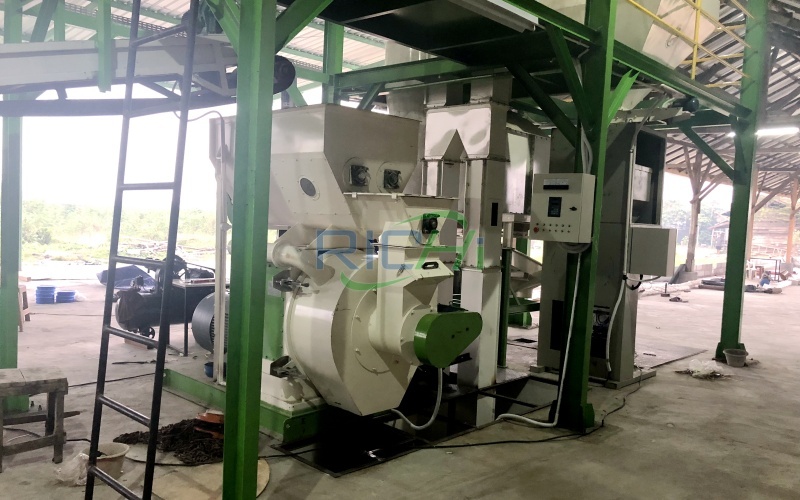

2 T/H Paper Pellets Machine in South Africa
Raw materials: waste paper, paper residue, sawdust, agricultural and forestry waste
Pellet diameter: 6-8 mm
This paper pellets machine started production in 2023. The customer’s raw materials contain more impurities and dust. The wear-resistant ring die and forced feeding structure played important roles. They made the main machine run more stably. The customer uses the pellets as local boiler fuel.
Paper Pellet Press Advantages
If you want stable paper pellet production, choosing an efficient and professional paper pellet machine is especially important. We are confident that every customer can start production with peace of mind. RICHI paper pellets machines have the following clear advantages.
Our paper pelletizer machine is equipped with double-roller arch-breaking, forced feeding, and an axial deep straight groove biomass pressure roller. These features let lightweight waste paper enter the pelletizing chamber smoothly. They also avoid slipping during extrusion. They reduce shutdowns and cleaning caused by blocking. They ensure continuous production.
Stable Operation Without Blocking
The service life of the ring die and pressure roller is an important factor in how long a paper pellet machine can be used. The ring die and biomass pressure roller of the RICHI paper pellet maker use wear-resistant steel. Compared with ordinary pellet presses, they wear more slowly. The replacement cycle is longer. They can effectively reduce later-stage costs.
Low Later-Stage Costs
This paper pellet mill mainly uses a dry pelletizing process. It does not need an extra boiler and steam system. Factory layout is also more convenient. As long as raw material moisture is controlled properly, it can save a large amount of investment.
Low Investment Threshold
RICHI paper pellet presses mainly produce paper cat litter and animal bedding. They also support the production of biomass fuel pellets. Just tell us your finished product use. We can customize a ring die with a diameter in the 4–12 mm range. This makes one machine multi-use and allows flexible product switching.
Wide Range of Finished Product Uses
Paper Pellet Production Process
We are a professional supplier of complete pellet production equipment. We especially understand how to produce regular, high-quality paper pellets. Generally speaking, the whole process includes the following steps.
01.
Pretreatment
Whether your raw materials are cardboard, newspapers, cartons, or something else, they all have a certain volume. Therefore, they must first be uniformly shredded. Cleaning equipment is used to remove possible impurities such as staples and plastic fragments. This protects subsequent equipment. It also makes the paper pellets purer.
02.
Drying
Before pelletizing, it is best to assess the moisture content of your paper. Paper has strong water absorption. If it gets wet or damp during storage, the moisture content will rise quickly. This affects the pelletizing result. The drying section is mainly designed for damp waste paper. It can control the moisture content of waste paper at 10%–15%.
03.
Pelletizing
This is the section where the paper pellet press plays an important role. After the processed paper scraps enter the pelletizing stage, they are compressed by the ring die and pressure roller in the pelletizing chamber. They are extruded from the ring die holes in the form of cylindrical strips. Then they are cut into pellets of uniform length by the cutter.
04.
Cooling
After pelletizing, a cooling step is needed. This is because in the paper pellet mill, the paper is strongly rubbed by the ring die and pressure roller. The finished pellets have a certain temperature. It is necessary to quickly reduce the temperature of these paper pellets to room temperature. This makes the pellet structure more stable. It helps the pellets set quickly and reduces breakage of the finished product.
05.
Screening
The purpose of this step is to ensure that paper pellets are uniform in size and improve their appearance. The equipment used in screening can remove undersized and oversized unqualified pellets, as well as broken material and powder. Only paper pellets with the set diameter and length enter the next stage.
06.
Packing
As the name suggests, this stage is for collecting and bagging finished products. This makes later storage and transportation convenient. We can provide packaging equipment with different levels of automation at this stage. Higher automation helps reduce labor costs. You can choose the packaging method based on your investment budget.
Auxiliary Equipment for Paper Pellet Production
Producing high-quality paper pellets requires a complete paper pellet production line. In addition to the paper pellet press used in the pelletizing section, the crushing, drying, cooling, screening, packaging, and conveying sections also need corresponding equipment to support pellet production.
Waste Paper Shredder
Waste Paper Dryer
Paper Pellet Packaging Scale
Conveying Equipment
Paper Pellet Cooler
Waste Paper Cleaner
Paper Pellet Screener
FAQ
We have presented the most important information about paper pellet making machines as much as possible. If you have other questions about this machine, you can try reading the following frequently asked questions and answers. Or choose a more convenient way: contact us for a free one-on-one consultation.
What raw materials can a paper pellet machine process?
→
Our paper pellet press supports processing clean corrugated boxes, office waste paper, paper mill scraps, and clean packaging paper waste. If you want to produce animal bedding and non-clumping paper cat litter, it is best to use clean waste paper with low ink content and no lamination. Newspapers and old books are more suitable for making biomass fuel pellets.
If you want to focus on producing biomass fuel pellets, in addition to pure paper raw materials, it is recommended to mix in some agricultural and forestry waste such as sawdust, shavings, and straw. RICHI paper pellets machines can also process these raw materials.
What pellet diameter is suitable for producing paper cat litter pellets?
→
Currently, mainstream paper cat litter on the market is generally 3.5–6 mm. 4–5 mm is the most common size. Our paper pellets machine supports the production of pellets with a diameter of 4–12 mm. If you have special requirements, you can also contact us for customization.
Can I customize a paper pellet production line? What information do I need to provide?
→
Yes. Besides providing paper pelletizer machines, we can also help customers build complete production lines and provide turnkey project services. We need you to tell us the following information:
- Your paper type.
- Paper moisture content.
- Expected hourly capacity.
- Use of the paper pellets.
- What pellet diameter you want to make.
- Your factory area.
What is the price of your paper pellet press?
→
The price range for a single RICHI paper pellets machine is $5,000–$20,000. We give a price range because the exact price depends on the specific model and the capacity you need.
Please note that a lower price is not always better for a paper pellets machine. You need to buy the most suitable one based on your own needs. In this way, the overall cost is the lowest in the long run. If you want a more accurate quote, welcome to contact us for further communication.
What is the warranty period for a paper pellet maker?
→
We provide a 12-month free warranty for every customer who purchases a paper pellet mill. During this period, if the equipment has a fault caused by non-human factors, you can contact us for free repair. Wear parts such as ring dies, pressure rollers, and cutters are not covered by the warranty. However, their quality is reliable, their service life is long, and we have sufficient original spare parts to meet your replacement needs at any time.
Why Choose RICHI
Our paper pellet maker machines have been sold to more than 140 countries and regions around the world. They have received wide praise from customers. This feedback comes from RICHI’s long-term project experience and a series of its own advantages.
Project Experience
30+
Years
Countries and Regions Served
140+
Projects Delivered
2000+
Factory Area
100,000+
㎡
About Us
Henan RICHI Machinery Co., Ltd.,（睿企机械） established in 1995, primarily focuses on the research and development and manufacturing of feed machinery, biomass pelleting equipment, organic fertilizer pelleting equipment, and complete pelleting production lines. After more than 30 years of development, RICHI has become a professional pelleting machinery manufacturer. Our products are exported to over 140 countries and regions worldwide, earning the trust of customers both domestically and internationally.
Qualification Advantages
RICHI boasts numerous international authoritative certifications and patents, including ISO9001, CE, SGS, and TÜV. This means that the equipment you purchase can smoothly pass through customs and quality standards in various countries, with no customs clearance risks and compliant delivery. Choosing RICHI means choosing a guarantee of smooth global access and worry-free production.
