shrimp feed pellet machine

How long does your shrimp feed hold up in water?

If the feed falls apart before the shrimp even get to eat it, farmers won’t be happy – and that hurts your reputation. Worse, every ton of that scattered feed is just wasted money. Want to avoid these headaches? Take a look at RICHI’s shrimp feed pellet machine. It gives you pellets with a uniform structure and great water resistance.

Product Information

Shrimp Feed Pellet Machine

Capacity: 0.2-8 T/H

In simple terms, it’s a machine that presses your shrimp feed ingredients into water-resistant, even-sized pellets.

Unlike machines for regular livestock feed, shrimp feed needs to hold up in water for hours without falling apart – otherwise you get waste and water pollution. RICHI’s shrimp feed pellet machine comes with a three-layer conditioner. That gives the material more time to cook, improves gelatinization, and handles tricky formulas like high oil, high fiber, or low starch with ease. You get smooth, durable pellets every time.

Need one? Let us know – we’ve got you covered.

Free Consult

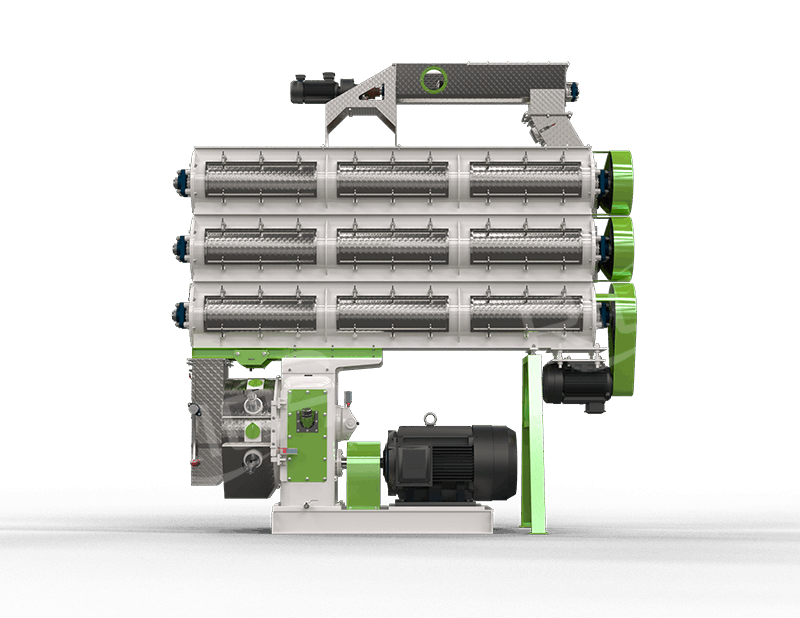

Composition of Shrimp Feed Pellet Machine

RICHI’s machine doesn’t rely on just one part – it’s the whole system working together. So what exactly makes it up?

Variable Frequency Feeder

Stainless Steel Conditioner

Pelleting System

Drive System

Variable Frequency Feeder

A variable frequency feeder lets you adjust the feeding rate flexibly. By changing how fast the material goes in, you directly control the pelleting speed inside the shrimp feed pellet machine. The main purpose of this design is to avoid uneven feeding – uneven feed can overload the machine or leave it running empty.

Some customers use lightweight ingredients in their shrimp feed formulations, and those materials can bridge up and form arches during feeding. In practice, you can add an anti‑arching device to help the material flow more smoothly into the conditioner.

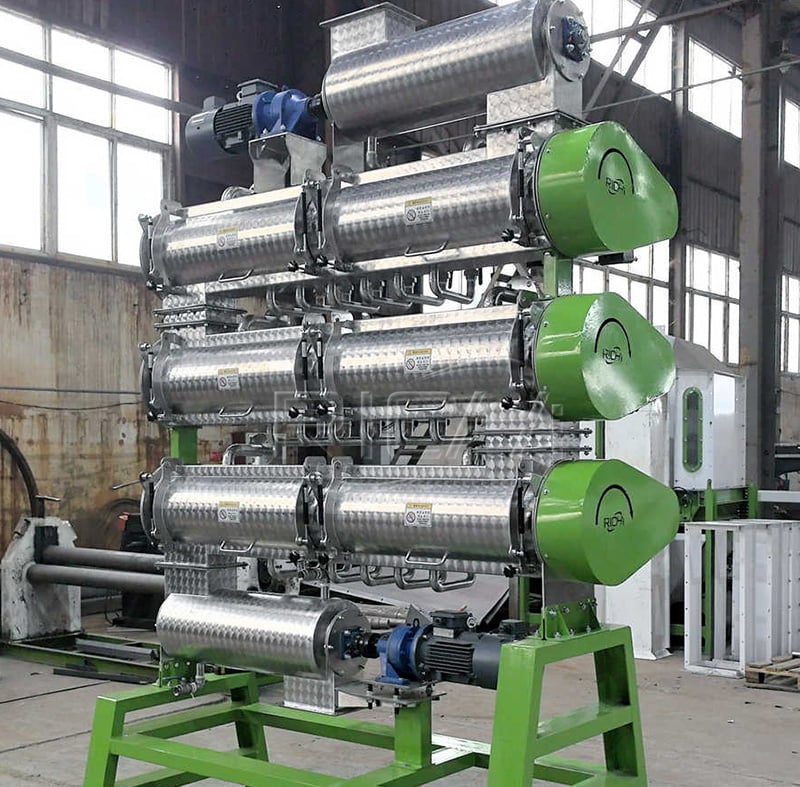

Stainless Steel Conditioner

The conditioner on RICHI shrimp feed pellet machines is made entirely of 304 stainless steel. Inside the conditioner, we use forged paddles that toss the material evenly and move it forward along the tube. Our conditioner tubes are thicker and longer than most units on the market, so the material has plenty of space to get full contact with steam. That improves cooking and gelatinisation.

It’s especially worth pointing out that RICHI uses a three‑layer conditioner. This extends the conditioning time several times over single‑layer or double‑layer designs. The feed cooks more thoroughly, and you get higher‑quality shrimp feed pellets as a result.

Pelleting System

Three main components make up the pelleting system: the pressure roller, the ring die, and the cutter.

The pressure roller has grooves on its surface that grip the material coming from the conditioner. It squeezes that material under a certain compression ratio. You can adjust this compression ratio freely – the higher the ratio, the tighter and denser the pellets become.

The ring die is a part with many small round holes. The material, after being squeezed by the roller, gets pushed out through these holes. The hole diameter in the ring die decides the final pellet diameter.

The cutter is in charge of cutting the extruded strands into individual pellets. The length of each pellet depends on the distance between the cutter blade and the die’s outer surface. You can adjust that distance freely to get the pellet length you want.

pelletizing chamber of shrimp feed pellet mill

Drive System

Shrimp feed pellets need a very high compression ratio to form properly. That puts a serious load on the machine’s main shaft and tests the fatigue strength of the transmission system.

But you don’t need to worry. RICHI’s transmission system uses a high‑spec, heavy‑duty design. It comes with a Siemens motor (power range from 22 to 315kW), which gives you plenty of overload protection. Together with the variable‑frequency feeder that supplies material precisely, the whole shrimp feed pellet machine won’t clog or shut down due to momentary overload, even at high compression ratios. This is what keeps the ring die and pressure rollers running steadily and consistently, so you get uninterrupted production of shrimp feed pellets.

Parameters of Shrimp Feed Pellet Machine

No matter the diameter of the shrimp feed pellets you need, our products can meet your requirements. RICHI shrimp feed pellet machines are available in several different models. If you have any questions about selection, please contact us directly, and we will answer your questions.

Model	SZLH250	SZLH320	SZLH350	SZLH420	SZLH508	SZLH558	SZLH678	SZLH768
Main Motor (kW)	22	37	55	110	160	185	250	315
Feeder Motor (kW)	1.1	1.5	1.5	1.5	1.5	1.5	1.5	2.2
Conditioner Motor (kW)	1.5	4	4	7.5	7.5	11	11	11
Ring Die Inner Dia. (mm)	250	320	350	420	508	558	673	762
Pellet Dia. (mm)	2-12
Output（T/H）	0.2-0.4	0.6-0.8	1-1.4	1.5-2.5	2-3.5	3-5	4-6	5-8

Note: The capacities shown are rated outputs for a complete feed line. Actual output can vary depending on your specific conditions – let real production be your guide.

Free Guide

Shrimp Feed Pellet Machine‘s Videos

By now, you’ve probably got a good general idea of what RICHI prawn feed making machines are like from everything we’ve covered above. But we all know that reading about a machine isn’t quite the same as watching it actually run. That’s why we’ve put together a short video for you. It shows our pellet mills working in real production settings – you’ll see them operating at customer plants in Indonesia and Iran.

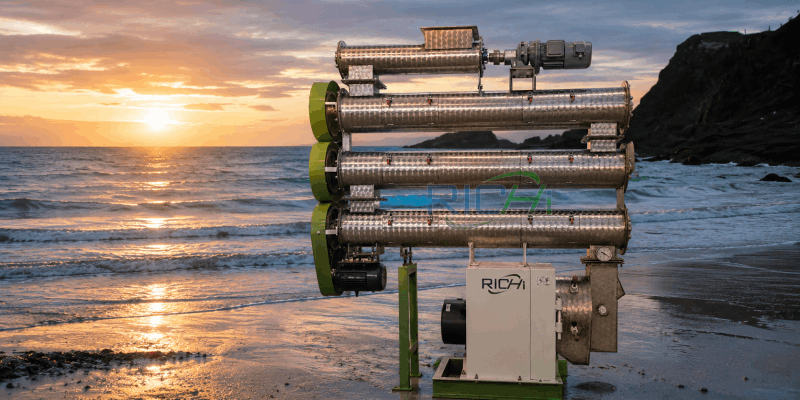

7 T/H Shrimp Feed Pellet Machine in Indonesia

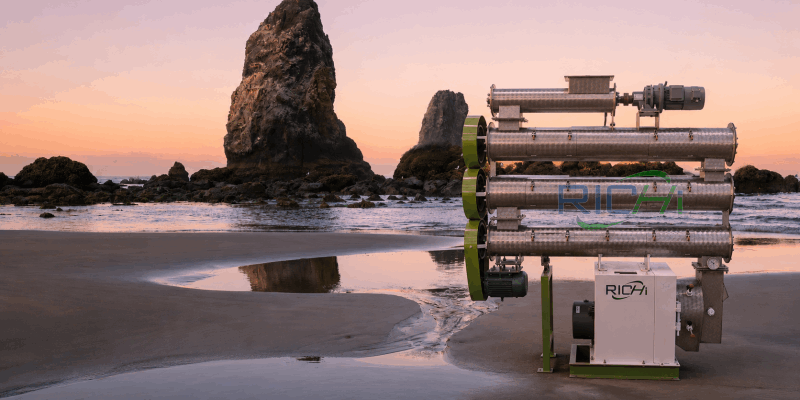

4 T/H Shrimp Feed Pellet Machine in Iran

Advantages of RICHI Shrimp Feed Pellet Machine

Why can our shrimp feed pellet mill be exported to more than 140 countries and regions overseas? Why can it bring higher market value to customers? These are all related to its technical features and advantages.

Feeding rate, conditioning time and temperature, ring die hole size, roller compression ratio – you can adjust them all to match your needs. Need a shrimp feed pellet machine tailored to your production or a complete shrimp feed solution? RICHI’s got you.

Flexible Choices

Nobody wants to spend big money on equipment that breaks down fast. That’s not a problem here. The whole shrimp feed pellet machine is 304 stainless steel – tough and corrosion-resistant. Even the internal parts, like the forged paddles and stainless steel ring die, are extremely wear-resistant. So your machine runs steady for the long haul.

Built to Last

What’s different? We use a three-layer conditioner, and each layer has longer pipes and wider cylinders than most on the market. That helps you hit ideal levels of cooking, gelatinization, and sterilization. Plus, you can set a higher compression ratio – giving you dense, water-resistant pellets.

Premium Pellet Quality

Application Range of Shrimp Feed Pellet Machine

Just as you need to know your size when buying clothes, choosing a pellet mill also means figuring out which model fits your production scale. The examples below should give you a better idea. Every model we list here works with shrimp feed pellets from 2 to 12 mm in diameter. And if you’ve got any other special needs, feel free to reach out – we’re always open to customizing.

Small‑Scale Aquaculture

Suitable for: individual farmers, small family hatcheries, small experimental feed processing points, and free‑range shrimp growers.

Recommended models: SZLH250/SZLH320

Capacity: 0.2‑0.8 T/H

Advantages: These machines don’t need much floor space, and they keep your electricity bills low. Even if you’re working alone, you can get the hang of them pretty quickly – feeding, pelleting, and discharging all go smoothly. The purchase and maintenance costs are also on the lower side. Parts that wear out easily, like ring dies and pressure rollers, are inexpensive and easy to find, so they won’t stretch your budget. That makes them a solid choice if your overall funds are limited.

Expert Free Advice

medium-sized shrimp feed processing plant

Medium‑Scale Shrimp Feed Processing

Suitable for: shrimp farms with their own feed processing workshops, regional small‑to‑medium feed plants, and aquatic cooperative processing centers.

Recommended models: SZLH350/SZLH420/SZLH508

Capacity: 1‑3.5 T/H

Advantages: The pressure rollers and ring die work together to give you better pellet‑forming stability, so the pellets come out compact and hold up well in water. The main motor runs at 55‑160 kW, which means you can keep production going for long stretches without interruption. These models also strike a nice balance between plant layout, production efficiency, and how well they handle different feed formulas. That’s why they’re often the most cost‑effective option for this scale.

Expert Free Advice

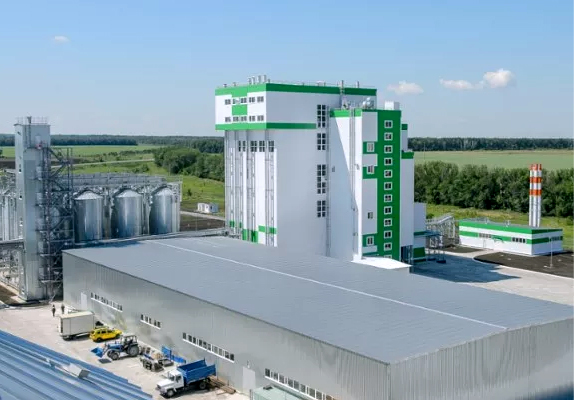

Large‑Scale Shrimp Feed Production

Suitable for: nationwide aquatic feed factories, bulk‑supply distributors, and export‑grade shrimp feed processing enterprises.

Recommended models: SZLH558/SZLH678/SZLH768.

Capacity: 3‑8 T/H

Advantages: These machines use a larger‑diameter and thicker ring die, which boosts wear resistance and effectively extends the service life of the mill. The main motor delivers a powerful 185‑315 kW, helping you spread out electricity and labor costs when you’re running high volumes. They can also integrate easily into standardized large‑scale production lines for mass output, and they’re built to operate 24/7 without affecting your production schedule.

Expert Free Advice

Shrimp Feed Pellet Production Line Process

Want top-quality shrimp pellets? Don’t just look at the pellet mill – every step matters. We can supply the whole line. Need it? Give us a shout.

Cleaning

Crushing

Mixing

Pelletizing

Cooling

Screening

Packaging

Cleaning

We start by feeding the raw materials into a cleaning machine. That equipment takes out dirt clods, bits of rope, metal pieces, and other foreign matter. This does two things: it protects the crusher and shrimp feed pellet machine downstream from getting damaged by hard objects, and it makes the feed cleaner and safer for the shrimp. Once the materials are clean, we send them into a grinding hopper, where they wait for the next stage.

Crushing

If you want top‑quality shrimp feed, it’s best to grind the materials twice. First, we use a dropper grinder for coarse crushing, which breaks up the fibrous structure in the ingredients. Then we put them through an ultrafine grinder for a second, finer pass, bringing the pellet size down to 80‑90 mesh – about the same fineness as flour. At that level of fineness, the powder cooks more thoroughly during conditioning, and the final pellets are much easier for the shrimp to digest.

Mixing

Mixing happens in two main stages: we blend the major ingredients first, then add the minor additives. Our mixing equipment ensures every batch has a uniform nutritional profile – you won’t end up with some pellets being more nutrient‑rich than others. That means the final pellets will have balanced nutrition throughout. Once everything is mixed thoroughly, a bucket elevator carries the blend up to a pre‑pelleting bin, where it sits ready for the pelleting step.

Pelletizing

From there, the material moves into a three‑layer conditioner via the variable‑frequency feeder, where it heats up quickly to 90‑110°C. At that temperature, the starch gelatinises fully, and any harmful bacteria get killed off effectively. After conditioning, the material goes through the ring die and pressure rollers, which squeeze it into solid strands, and then a cutter slices those strands precisely to your desired length. The finished pellets come out with a smooth surface and a dense, firm texture – drop them in water, and they hold together for a long time without falling apart.

Cooling

Since many of our customers need to store the feed or ship it elsewhere, we strongly recommend using cooling equipment right after pelleting. The cooler brings down the high temperature that builds up during the process, which helps the pellets set properly and also prevents moisture from staying trapped inside – that’s what often leads to mould and caking.

Screening

If you’re planning to sell the pellets commercially, their appearance really matters. That’s why we strongly suggest adding a screening step after cooling. A screening machine removes any broken pieces and fine powder that were produced earlier, leaving only pellets that are uniform in size and have the right hardness. That gives you a better‑looking product – and a better price for it, too.

Packaging

The last step is packaging. An automatic scale weighs out each batch of shrimp feed pellets, then a conveyor takes them to the sealing machine. During the sealing process, an operator inserts a label by hand, and the machine seals the bag automatically. This setup gives you accurate weights and fast packing, with labels placed neatly every time. Whether you’re storing, shipping, or putting them on store shelves, it makes everything a whole lot easier.

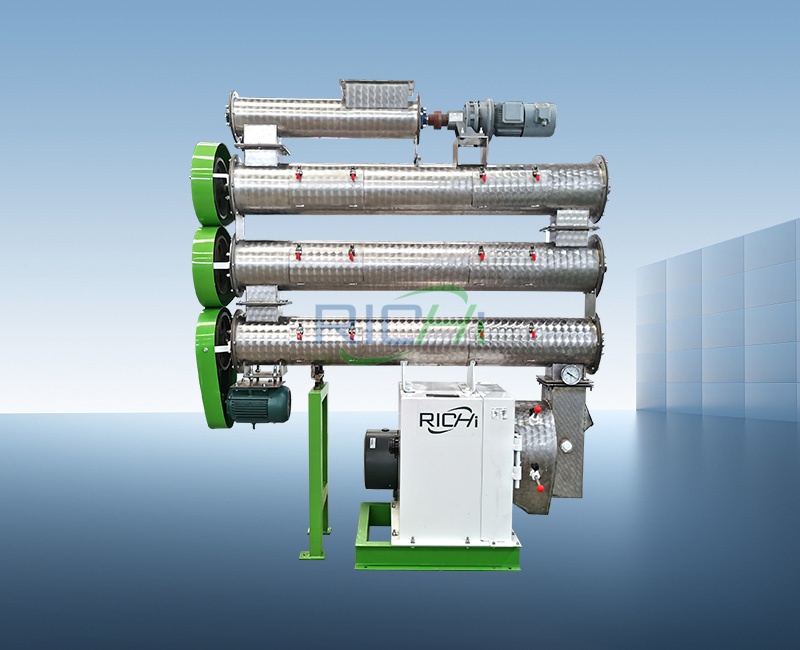

three-layer conditioner shrimp feed pellet mill

Learn More

Global Customer Cases

RICHI serves over 140 countries and has tons of experience with shrimp feed pellet machines. Here are a few examples – maybe they’ll give you some ideas.

3-4 T/H High-value Shrimp Feed Line in Spain

5 T/H Large Shrimp Feed Line in Australia

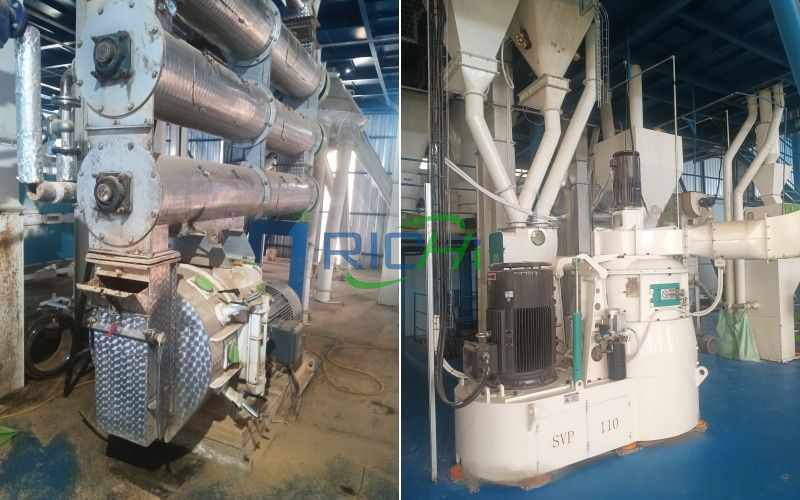

1.5 T/H Shrimp Feed Pellet Production Line in Nigeria

The customer: A new aquaculture feed company surrounded by shrimp farmers. They wanted a tough, easy-to-maintain machine that could handle heat, rain, and some unconventional ingredients.

Ingredients: fish meal, peanut meal, cassava flour, palm oil, shrimp shell meal

Main equipment: SZLH350 shrimp feed pellet machine, hammer mill, cooler

Pellet size: 1.5–2.0 mm

Result: Electrical protection for tropical humid conditions – very stable. The three-layer conditioner improved gelatinization of cassava and peanut meal. Running steady for a year, hitting design capacity, and gaining market share.

Get Free Quote

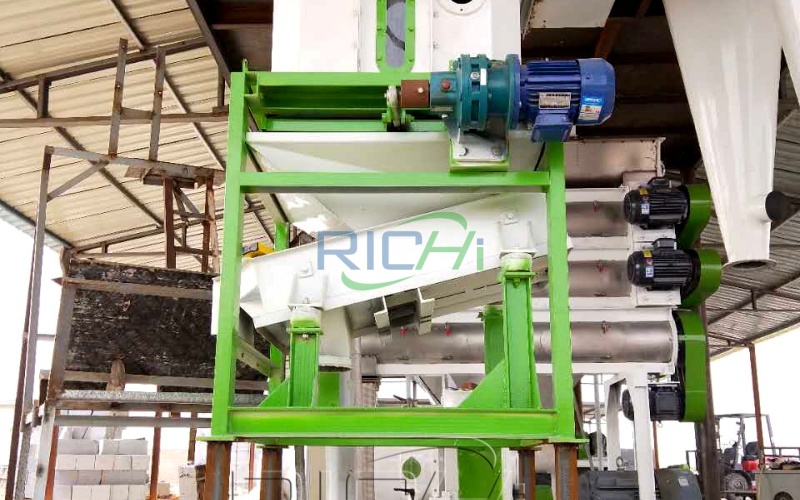

2 T/H Shrimp Feed Pellet Production Line in Brazil

The customer: A medium aquatic feed producer serving shrimp co-ops. Their old single-layer conditioner gave them poor water resistance, lots of farmer complaints. They wanted better durability without changing core formula.

Ingredients: imported fish meal, soy protein concentrate, corn starch, krill meal, soybean oil

Main equipment: SZLH420 shrimp feed pellet mill, ultra-fine grinder, double-layer counterflow cooler, vibrating screener

Pellet size: 1.8–2.2 mm

Result: After switching to a three-layer conditioner, conditioning temperature stayed at 100–105°C, and disintegration after 2 hours in water was below 8%. They also saw much longer wear life on ring die and rollers.

Get Free Quote

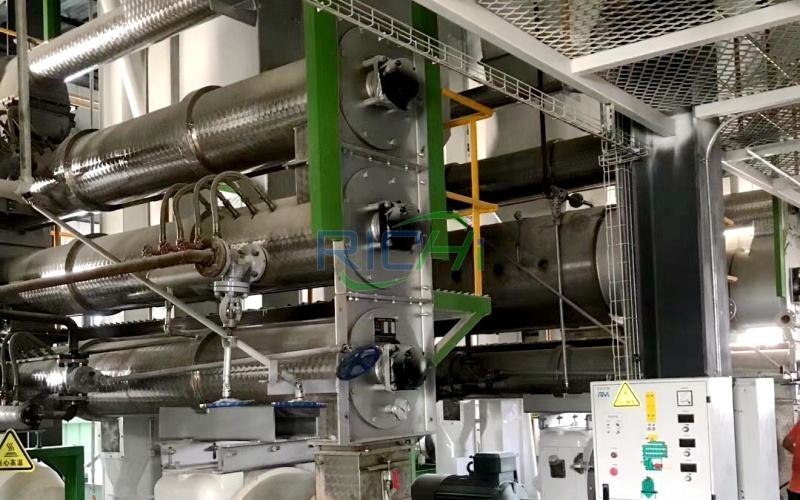

3-4 T/H High-value Shrimp Feed Pellet Production Line in Spain

The customer: An organic & functional feed company with strict demands for pellet appearance, uniformity, and nutrient retention. EU standards – needed stainless steel contact parts, low residue, easy cleaning for quick formula changes (juvenile, adult, immune-boosting).

Ingredients: organic fish soluble, enzymatically treated soybean meal, seaweed meal, Antarctic krill meal, fish oil

Main equipment: SZLH558 shrimp feed pellet machine, crusher, automatic fat coater

Pellet size: 1.2–1.8 mm

Result: 304 stainless steel conditioner and food-grade seals meet EU standards. Handles high-oil formulas easily. Their product now sells into the premium organic shrimp feed market at much higher prices.

Get Free Quote

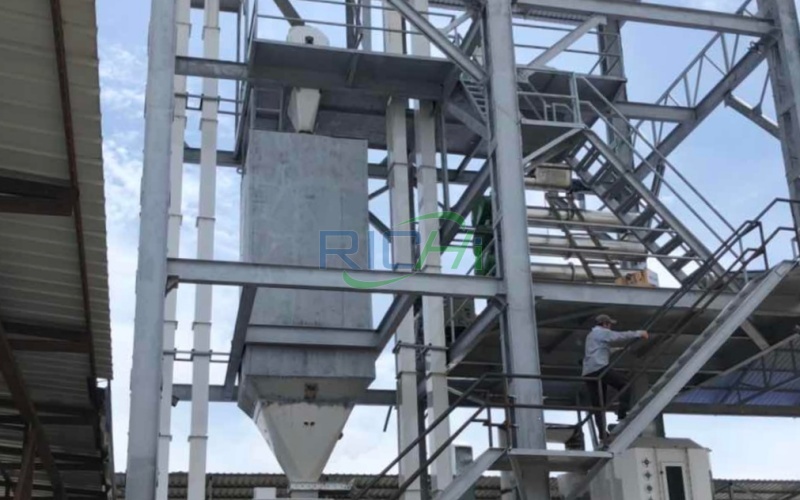

5 T/H Large Shrimp Feed Pellet Production Line in Australia

The customer: A large shrimp farming company in Queensland with its own feed mill, supplying its farms and neighbouring growers. They wanted high capacity, automation, low maintenance, and flexibility for different crustacean feeds (shrimp, crab, crayfish).

Ingredients: Australian white fish meal, wheat gluten, lupin meal, astaxanthin, fish oil

Main equipment: SZLH678 shrimp feed making machine, crusher, automated PLC control system

Pellet size: 2.0–2.5 mm (adult) / 1.0 mm (juvenile) – switchable

Result: Even in summer, conditioning temperature stays above 102°C. Water resistance went from 45 minutes to over 120 minutes – much less waste in ponds. One operator runs the whole line with the PLC system.

Get Free Quote

Our Service System

You might be wondering – besides selling equipment, what else do you offer? Don’t worry. From the first chat to custom production, delivery, and after-sales, we’ll be right there with you.If you require a factory visit and trial run, we can also provide those services.

View Details

Solution Design

We’ve got our own R&D and design team that focuses entirely on customised solutions. All you need to do is tell us your production requirements and site conditions, and we’ll put together a highly efficient and stable feed pellet production line that’s built around your specific needs. And we don’t just stop at selecting the right models and matching up the equipment – we’ll also help you plan out the factory layout, figure out where each piece of shrimp feed pellet machine goes, and design the workflow between different areas so your operators don’t waste time moving back and forth.

Equipment Production

Once we’ve finalised the solution, we move into the production phase. We have our own modern manufacturing facility here in China, with advanced processes and strict quality control at every turn. We’ve also earned European CE certification and Swiss SGS certification, so every shrimp feed pellet machine we build meets top international standards. Every production step and every piece of processing equipment goes through multiple rounds of inspection. The whole point is to make sure that when you receive the equipment, you’ve got less to worry about and fewer breakdowns to deal with.

Project Delivery

After we’ve finished building the prawn feed machine, we don’t just ship it off and wash our hands of it. Instead, we run a full machine test first, then carry out systematic commissioning and acceptance checks to make sure every section of the line meets the required standards. At the end, we go through the equipment status together with you and sign a formal acceptance report. That way, what you get isn’t just a pile of machines – it’s a fully functioning production line that’s ready to run

Trade and Transportation

You don’t need to worry about the shipping method – we’ve got multiple overseas logistics routes to choose from. Based on your location and your required delivery timeline, we’ll pick the best option for you. We assign dedicated staff to monitor the entire logistics process and give you real‑time updates along the way, so you can be sure the equipment arrives at your site on time and in perfect condition.

Machine Installation

When the prawn feed manufacturing machines arrive, are you worried about not being able to follow the manuals during installation? Don’t worry – we can send our technicians to your site to handle the installation and commissioning, and they’ll stay until everything is running properly. At the same time, we’ll provide thorough training for your team. That covers hands‑on operating guidance, troubleshooting, and maintenance procedures. We won’t leave until we’re confident that your people can handle the entire production line on their own.

After-Sales Service

After you purchase the shrimp feed pellet mill, you’re covered by a 12‑month warranty. Whether you run into issues during operation, aren’t sure how to maintain key components, or find that some critical parts have failed, you can always reach out to our after‑sales team. We’ll come back with a solution right away, so we don’t hold up your production and we keep any losses to an absolute minimum.

Project Experience

30+

Years

Countries and Regions Served

140+

Projects Delivered

2000+

Factory Area

100,000+

㎡

About Us

Henan RICHI Machinery Equipment Co., Ltd., established in 1995, primarily focuses on the research and development and manufacturing of feed machinery, biomass pelleting equipment, organic fertilizer pelleting equipment, and complete pelleting production lines. After more than 30 years of development, RICHI has become a professional pelleting machinery manufacturer. Our products are exported to over 140 countries and regions worldwide, earning the trust of customers both domestically and internationally.

Get More Info

Qualification Advantages

RICHI boasts numerous international authoritative certifications and patents, including ISO9001, CE, SGS, and TÜV. This means that the equipment you purchase can smoothly pass through customs and quality standards in various countries, with no customs clearance risks and compliant delivery. Choosing RICHI means choosing a guarantee of smooth global access and worry-free production.

FAQ

Here are common questions from customers – maybe you’ve got the same ones. Feel free to ask more.

Why three layers in the conditioner?

→

It extends conditioning time, so material and steam mix thoroughly – better cooking and gelatinization. Compared to livestock feed, shrimp feed needs higher water resistance, and this helps minimize pollution from feed that breaks down in water.

Can your shrimp feed pellet machine handle high-oil, high-sugar, or high-binder formulas?

→

Yes. The three-layer independent conditioner allows long, low-temperature conditioning – unlike ordinary equipment that cooks hot and fast. That protects oils and binders from heat damage (oxidation or failure). For high-oil formulas, layered temperature control and staged humidification prevent sticking, clogging, or pellet clumping, giving you uniform, full pellets.

Can you customize specs for my needs?

→

Absolutely. We support custom ring die hole sizes, variable frequency drives, body material, and even conditioning processes. Got something special in mind? Just ask. Our engineers will help.

Can you help with feed formulas?

→

Sure! We’re not a feed producer, but with over 30 years of experience and thousands of customers, we know shrimp feed formulation inside out. Have questions? Reach out – we’ll help match a suitable formula and suggest conditioning parameters (moisture, temperature, compression ratio).

What if my pellets come out uneven in size or length?

→

Possible causes: uneven feeding into the conditioner, worn rollers, misaligned cutter, or blocked ring die holes. Try these fixes:

Clean built-up material off the conditioner wall regularly for smoother flow.

Check roller wear often – replace if heavily worn.

Unclog ring die holes to prevent blockage.

Still stuck? Contact us.

What’s your shrimp feed pellet machine price?

→

A single shrimp feed pellet machine typically ranges from 7,000 to 100,000, depending on capacity, configuration, and model. Tell us your specific needs, and we’ll send a detailed quote – with the best value we can offer.
