Fish Feed Dryer Machine
Product Introduction
What is a Fish Feed Dryer Machine
After you use an extruder or other equipment to produce fish feed, do you ever have the problem of high moisture content in the fish feed pellets? If you want to store the fish feed longer, a fish feed dryer machine is essential.
RICHI fish feed drying machines use a multi-layer mesh belt structure. They are widely used in fish feed production lines, typically after the extrusion process. These machines are specially designed to dry fish feed pellets. They can adjust the moisture content precisely within a range of 2% to 10%. This helps prevent the pellets from becoming moldy or clumping.
Fish Feed Dryer Machine Video
To help you see how our fish feed dryer machines work in real situations, we have prepared two videos. These videos come from customer feedback in Bangladesh and Russia.
500 KG/H Fish Feed Dryer Machine in Bangladesh
5-6 T/H Fish Feed Pellet Dryer in Russia
Fish Feed Dryer Machine Components
RICHI fish feed dryer is a belt dryer machine with excellent performance. Different parts work together to achieve high drying efficiency. Now let us break down the main components.
Feeding Inlet
This is the feeding inlet of the fish feed dryer machine. You can put wet fish feed pellets into the machine here. The pellets will be placed onto the mesh belt. You can adjust the feeding speed by changing the baffle at the inlet. This ensures that the pellets are spread evenly on the belt.
Heat Source System
This system has two main parts: a heater and a fan. The heater warms the incoming air to a high temperature. Then the fan blows the hot air to the drying area inside the fish feed pellet dryer. This part is very important for the machine’s efficient work. It also affects the final drying result.
Conveyor Belt
As the name suggests, the conveyor belt is a strip. It moves the fish feed from the inlet to the outlet. Since it runs under high‑temperature conditions, its material is very important. The belt of the RICHI fish feed dryer machine is made of PET woven material. It has good heat resistance and wear resistance. So it can run stably even at high temperatures.
Fish Feed Dryer Machine Parameters
With over 30 years of experience, RICHI has designed several models of fish feed dryer machines. They differ in belt layers, heating methods, and drying area. These factors also affect the price. If you want more details about our products, please contact us.
Fish Feed Dryer Machine Case
Whenever a customer contacts us, our engineers evaluate their specific needs. We then create a customized production plan. With our help, many customers have achieved better economic results from their fish feed projects. Below are some real pellet plant projects of our fish feed drying machines in use.
1.5-2 T/H Fish Feed Dryer Machine in Iran
The customer’s existing dryer consumed too much energy. After evaluating the site and requirements, RICHI engineers recommended a circulating hot air type fish feed dryer machine. The hot air circulation reduced energy use, and the finished product reached stable moisture levels.
- Product Model: WDHG200-4/2
- Heating Method: Steam heating
- Belt Layers: 2 layers
5 T/H Fish Feed Drying Machine in Vietnam
This customer wanted to build a new floating fish feed line. They purchased our 4-layer belt fish feed dryer machine. It provides even drying across multiple zones. It also protects the internal pore structure of the feed, keeping the pellets intact.
- Product Model: WDHG220/6-4
- Heating Method: Steam heating
- Belt Layers: 4 layers
2 T/H Fish Feed Pellet Dryer in Russia
Case overview: The customer’s factory had no steam pipes. They did not want to add a steam boiler. We designed an electrically heated fish feed pellet drying machine for them. After drying, the pellets could go directly to cooling and coating.
- Product Model: DHG-2000
- Heating Method: Electric heating
- Belt Layers: 5 layers
500 KG/H Fish Feed Dryer Machine in Brazil
This customer had a small feed mill. They produced feed in small batches. So they had special requirements for the machine’s floor space. After design adjustments, we made a compact fish feed dryer machine for them. Installation and commissioning were very easy.
- Product Model: DHG-500
- Heating Method: Electric heating
- Belt Layers: 5 layers
Fish Feed Dryer Machine Advantages
Including the countries above, RICHI fish feed dryer machines have been sold to over 140 countries. Why are they so popular? The answer lies in their technical strengths.
RICHI fish feed drying machines use a left-right reversing airflow and top-bottom convection. This allows the pellets to lose moisture evenly. The ventilation structure is also optimized. Hot air penetrates the pellets more effectively. This prevents the outside from drying while the inside stays wet. As a result, moisture content remains stable, and floating performance is excellent.
Good Drying Effect
When designing our fish feed dryer machines, we made the chambers and troughs from stainless steel. These parts come into direct contact with the feed. Stainless steel prevents moisture residue and corrosion from weak acids. We also carefully select the conveyor belt material. It is made of PET woven fabric, which is heat-resistant and wear-resistant. This reduces wear and extends the machine’s life.
Long Service Life
Customers use different feed formulas and pellet sizes. Our fish feed pellet dryer can handle both floating and sinking feeds. In addition, the belt speed is adjustable with a frequency converter. You can control the drying time and the level of drying inside the chamber.
Easy to Operate
How to Choose a Suitable Fish Feed Dryer Machine
After reading the above, you should have a general understanding of our products. So how can you choose the most suitable fish feed dryer for your needs? You can contact us and provide the following important information, and we will provide you with a precise match.
Determine Moisture Requirements
Most fish feed pellets need to have a moisture content of around 7%-8%. You need to know the initial moisture content of your fish feed and then select the appropriate pellets based on the desired moisture content. This is important for choosing the number of layers on the conveyor belt of your fish feed dryer.
Define the Required Production Capacity
Before selecting a model, be clear about your hourly output target. Do not chase high capacity blindly, as that can waste energy and increase costs. We will recommend the appropriate belt width and number of layers based on your target capacity.
Determine the Feed Type
Fish feed comes in floating and sinking pellets. Each type has different processing needs. For example, floating feed needs to keep its internal air pockets. So high temperatures must be avoided during drying to protect both the pellets and their nutrition.
Consider Your Factory Conditions
Your factory space and heat source options are also key factors. Our equipment supports multiple heat sources. If you are interested in buying or just asking, please tell us about your site conditions.
Other Equipment in the Fish Feed Production Line
Making fish feed pellets requires a complete production line. In addition to the fish feed dryer machine, RICHI can supply other equipment as well. Below are some common machines used in a fish feed production line.

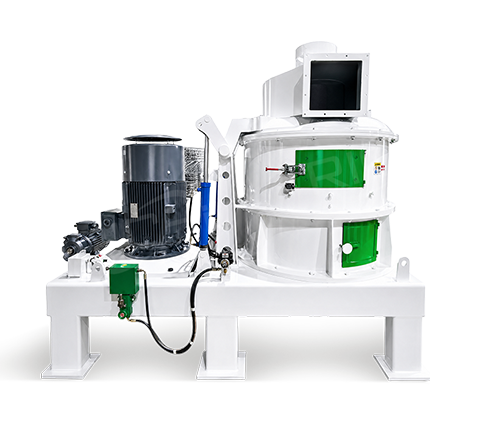

Fish Feed Grinder
Fish Feed Cooler
Fish Feed Mixer
Fish Feed Extruder
Fish Feed Ingredient Dispenser
Fish Feed Coating Machine
Fish Feed Pellet Screener
Fish Feed Packaging Scale
FAQ
Below is a compilation of frequently asked questions and answers about fish feed dryer machines, which we hope will be helpful to you.
Will the pellets stick together, or will the drying be uneven?
→
No. RICHI fish feed pellet dryers deliver air evenly. The multi-layer belts increase the drying area. We also use a layered slow-flow design. This effectively prevents sticking and clogging.
If you want to see more of our fish feed dryer machines or other equipment, you can watch videos on YouTube.
If the production environment is humid, will the dryer rust or get damaged?
→
If you use a regular iron dryer, it can indeed rust and corrode. Rust could even contaminate the feed. But our fish feed dryer machines have anti-corrosion and anti-rust treatment on all parts that contact hot, moist air. This includes chambers and baffles. So even with long-term use in humid conditions, they resist rust and do not flake.
Can I use a drum dryer for fish feed pellets?
→
No. Drum dryers run at high speed and high temperature. They are better for hard raw materials. Fish feed pellets are relatively soft. Floating pellets also have tiny pores inside. A drum dryer would damage these pores and cause the pellets to break. A dedicated fish feed dryer machine uses a mesh belt, so the drying process is much gentler.
My existing dryer is inefficient. Can I replace only the dryer without changing the whole line?
→
Yes. RICHI can evaluate your site carefully. Based on your current equipment, we will make a targeted connection plan. We can do this without changing your existing line layout.
Do you provide on-site installation service after purchase?
→
Yes. After you buy the fish feed pellet dryer, we will send you tracking information to confirm delivery. We will also arrange for technicians to come to your site. They will install the machine and debug it. They will help you get it ready for normal production.
