Introduction

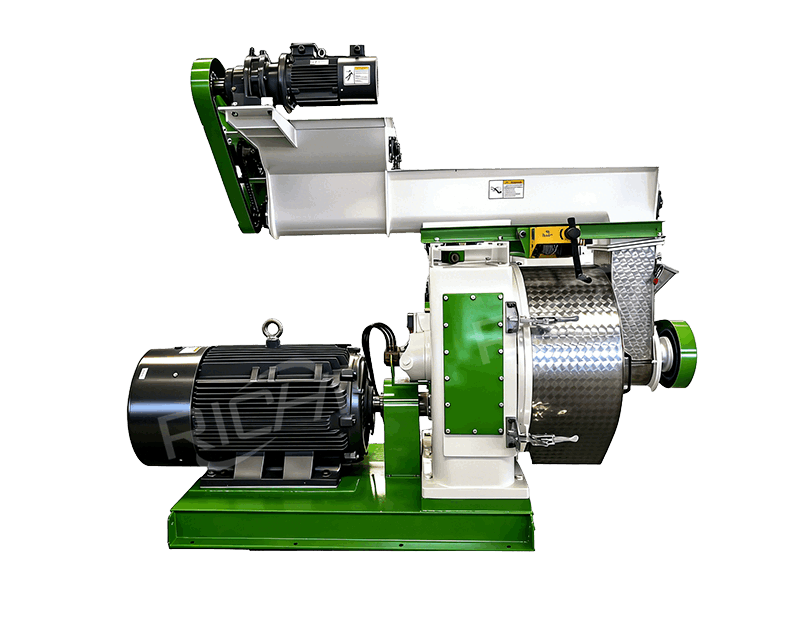

Sawdust Pellet Machine
Capacity: 0.2-4 T/H
Furniture factories, timber processing plants – places like that generate tons of waste wood and sawdust every single day. Storing it takes up a huge amount of space, and paying someone to remove it costs a fortune. A lot of people want to recycle it, but they just don’t have a simple, effective way to process it.
That’s exactly where RICHI’s sawdust pellet machine comes in. It uses solid pelletizing technology to turn worthless, loose sawdust into high-density biomass pellets that are easy to bag and ship. Whether you want the pellets for your own heating or to sell them, you’ll see real returns.
We’ve been in the pelletizing game for over thirty years. Our customers are all over the world, and our service network covers major markets both at home and abroad. Choosing RICHI is like hiring a partner who knows their stuff and won’t let you down. We’ll help turn every bit of waste wood into a steady stream of income.
Components of Sawdust Pellet Machine
Wood sawdust is light but has coarse, hard fibers. Standard pelletizing equipment on the market tends to break down when you feed it this kind of material. RICHI took a hard look at the challenges of processing sawdust and made targeted improvements. The result? A sawdust pellet maker that handles those problems smartly.
Feeding System

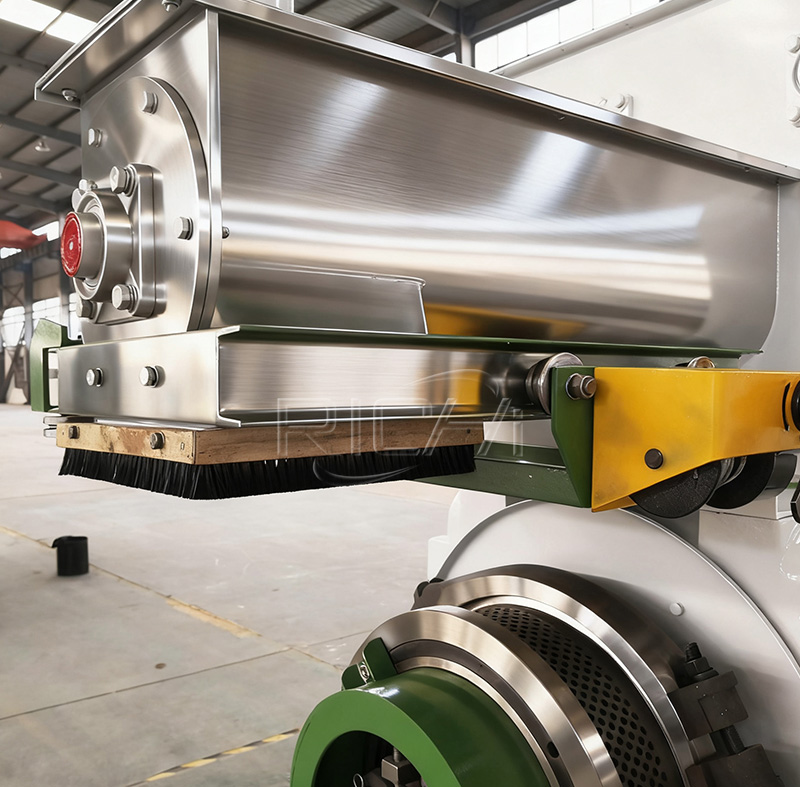

To ensure smooth feeding of lightweight sawdust, we installed a variable frequency anti-bridging feeder at the inlet. The feeder features a double-roller structure; the two rollers rotate in opposite directions to effectively break up clumps and bridging, resolving the arching and bridging issues during feeding.
To prevent material from failing to enter the pelleting chamber smoothly, we equipped the sawdust pellet mill with a forced feeder. This secondary feeder laterally delivers lightweight material into the pelleting chamber, ensuring a continuous and stable feed.
Pelletizing System
Because sawdust has a lot of fiber, it can really wear down the core parts of a sawdust pellet making machine. So we built a ring die out of high-strength alloy steel and gave it a carburizing heat treatment. That makes it way more wear-resistant and able to handle higher pressure.
At the discharge end, we put two rollers and a single-sided cutter. The material gets pressed twice before it’s cut. That gives you longer pellet strands and more uniform pellets.
Power Transmission System
Sawdust and other agricultural and forestry raw materials and by-products have coarse and stiff fibers. When pressed into pellets, they place certain demands on the power of core components such as the pressure rollers and feeders. Using ordinary motors may not be able to support the high-intensity operation of the machine, and in severe cases, it may even cause the machine to stop.
RICHI sawdust pelletizers use Siemens motors, with power ranging from 22kW to 250kW. You can choose a model with the appropriate power based on your power requirements. These powerful motors effectively overcome the problem of high operating resistance during pelleting.
Safety Protection System
The RICHI sawdust pellet mill’s body is constructed with heavy-duty thickened steel plates, essentially providing a robust armor for critical components. This significantly reduces vibration during operation, offering stable support for the high-speed internal core parts.

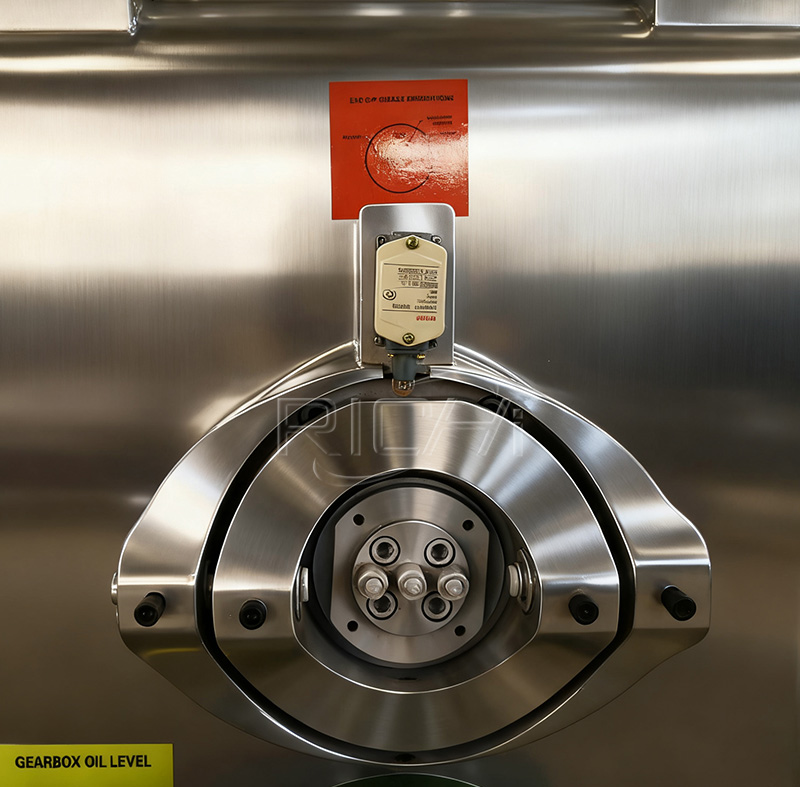

The mechanical overload protection device acts as a safety safeguard, automatically shutting down the machine in case of unexpected blockages or overload. This protects valuable components such as the ring die and pressure rollers, thereby reducing maintenance costs for these critical parts.
Sawdust Pellet Machine Parameters
Here are some models and specs of RICHI’s sawdust pellet machine for sale. Not sure which one fits you best? Please contact us directly, RICHI will provide you with free guidance.
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Main Motor Power (kW) | 22 | 37 | 90 | 132 | 200 | 250 |
| Anti-Bridge Feeder Power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4-12 | |||||
| Output (T/H) | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
Note: The output numbers above are for a full production line under ideal conditions. In real life, your actual output depends on the raw material and its moisture content – so don’t take these as hard guarantees.If you’d like to know the latest sawdust pellet machine price, just contact us for a detailed quote.
Sawdust Pellet Machine Operation Videos
Below are two videos of a sawdust pellet press in operation. If you’re interested, click to watch! They will give you a clear view of the pelleting process and its results.

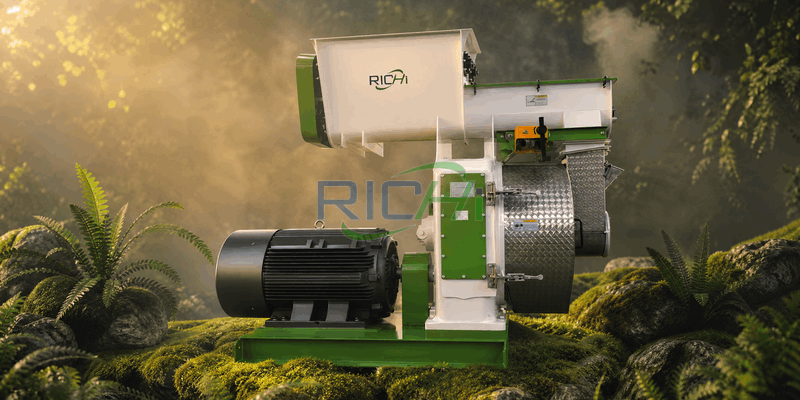

2 T/H Sawdust Pellet Machine in South Africa

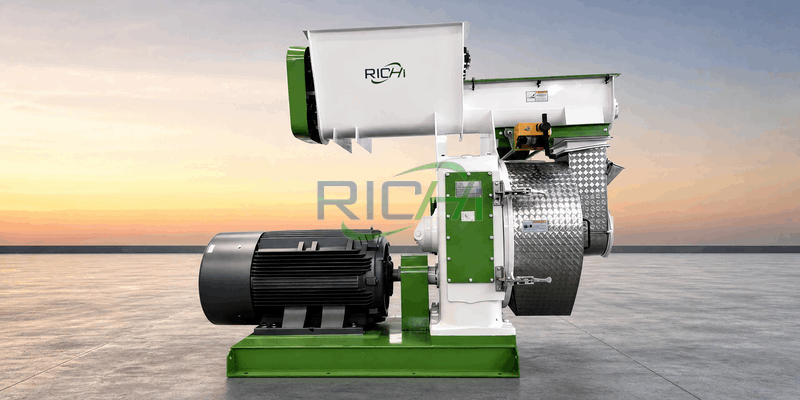

4 T/H Sawdust Pellet Machine in Romania

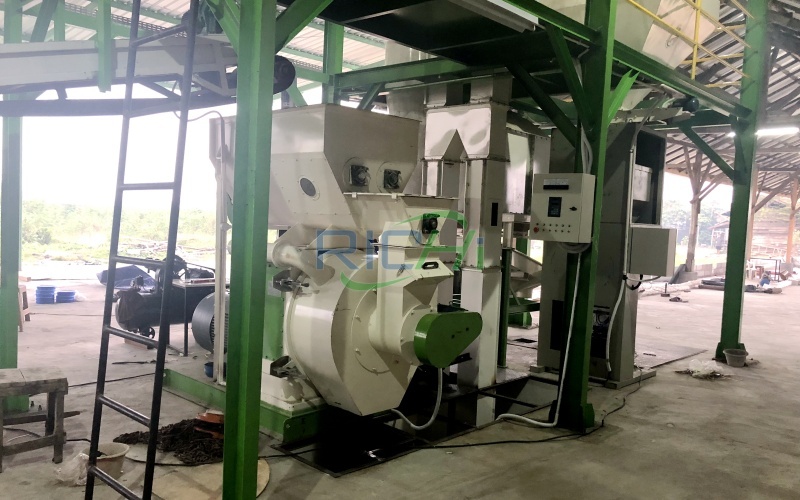

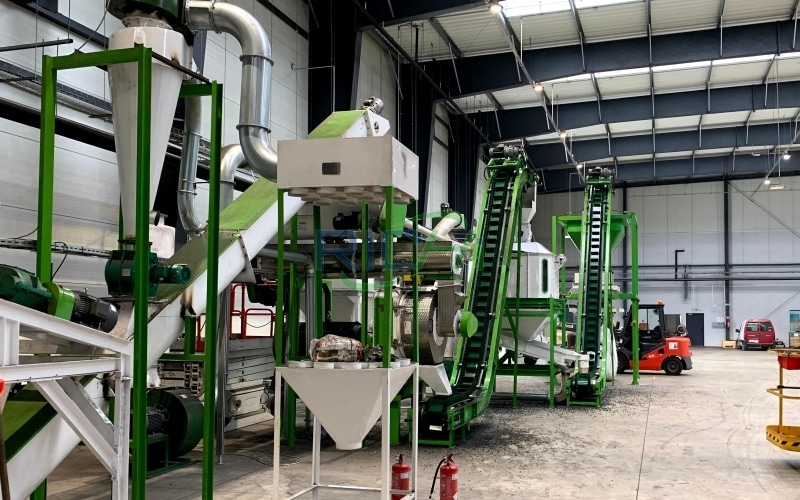

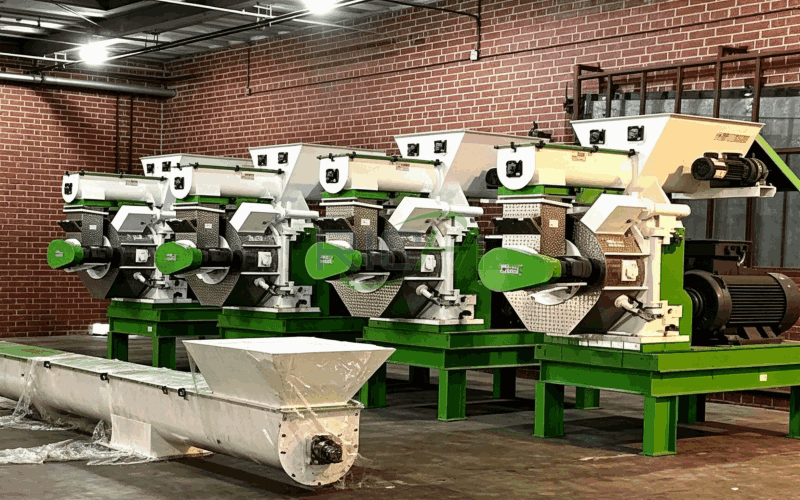

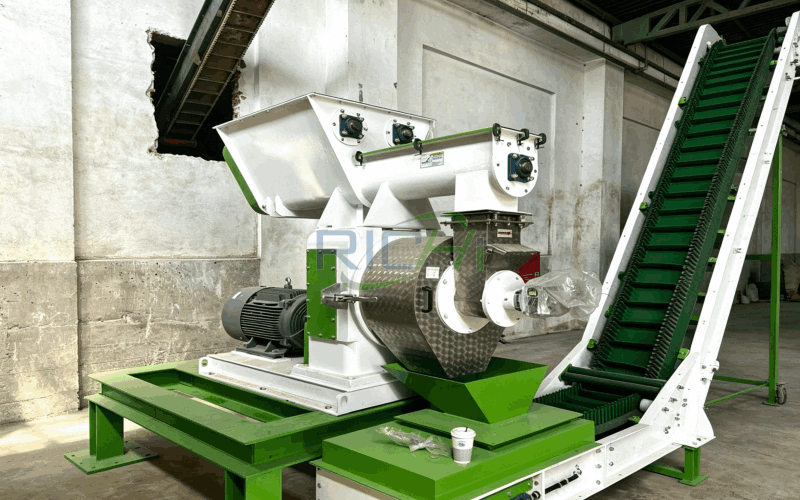

Sawdust Pellet Machine Application Cases
Still unsure if this machine is suitable for your raw materials and site? Why not take two minutes to look at these real-world examples? They might help you make a decision. We can also provide free site planning services if needed.
Advantages of Sawdust Pellet Machine
By choosing a RICHI sawdust pellet machine, you are assured of a worry-free, stable, and highly efficient operational experience from start to finish. The following core advantages directly address key production pain points, ensuring that our equipment is user-friendly, durable, and highly practical.
When you’re dealing with lightweight materials like sawdust – bulk density is only 0.05 to 0.15 t/m³ – you really need to avoid clogs. So we put in a dual-roller arch breaker and a forced feeder. They keep the material flowing steadily and evenly into the pelletizing chamber, so your production never stops.
Smooth Feeding
Our ring die is made of 42CrMo alloy steel and carburized. It’s much more wear-resistant than standard materials, so it handles high – fiber stuff like sawdust with ease. Pair it with our dedicated biomass rollers, and you can adjust the compression ratio anywhere from 1:10 to 1:18. That means you can dial in the right ratio for your specific raw material and the pellet hardness you want. Better forming results, and longer life for the ring die and rollers.
Wear-Resistant and Pressure-Resistant
This machine boasts an exceptionally wide power range, spanning from 22kW to 250kW, making it suitable for both small family workshops, medium-sized sawdust pellet processing plants, and large-scale pellet production lines. It also features a finely ground gearbox, amplifying the output torque and minimizing power loss during transmission—crucial for customers requiring continuous operation year-round and seeking stable, high-volume production efficiency.
Powerful Performance
Sawdust Pellet Machine’s Application
Sawdust pellet mills are mainly used to press wood processing leftovers into high-density fuel pellets. Different output levels and wood characteristics – like softwood vs. hardwood, moisture content, fiber length – call for different models. Here are RICHI’s mainstream models and typical use cases. Pellet diameter can be customized from 4 to 12 mm based on your needs.
Small / Home-Use Level
MZLH320 & MZLH350 Sawdust Pellet Machine for Sale
Output range: 0.2 – 0.5 T/H
If you run a small woodworking shop or have a pellet heater at home, these two small models are a good fit. They can turn fine sawdust, furniture shavings, and softwood sawdust (like pine or spruce) into fuel pellets. They also work well for small-scale production at the village or town level. Common pellet sizes are 6mm or 8mm, and you can customize the diameter from 4mm to 12mm.
Medium / Industrial Level
MZLH420&MZLH520 Sawdust Pellet Machine for Sale
Output range: 1.0 – 2.0 T/H
These two models are designed for medium-sized pellet plants, hot-air furnaces in drying lines, and fuel preparation for industrial steam boilers. They can handle hardwood sawdust (oak, beech), bamboo powder, construction waste wood, pine/fir sawdust, sanding dust, and branch chips. Output is 1 to 2 tons per hour. Common pellet diameters are 8mm or 10mm.
Large / High-Capacity Level
MZLH678&MZLH768 Sawdust Pellet Mill for Sale
Output range: 2.5 – 4.0 T/H
For large industrial pellet lines, fuel supply for biomass power plants, or high-quality pellet production for export – these high-capacity, high-stability machines are what you need. They handle a wide range of materials, from high-fiber sawdust (eucalyptus, rubberwood) to mixed agro-forestry residues, dry or wet sawdust, shavings, wood chips, and offcuts. Pellet sizes can be 6mm, 8mm, 10mm, or 12mm, all customizable from 4mm to 12mm. With an output of 2.5 to 4 tons per hour, you get real economies of scale.

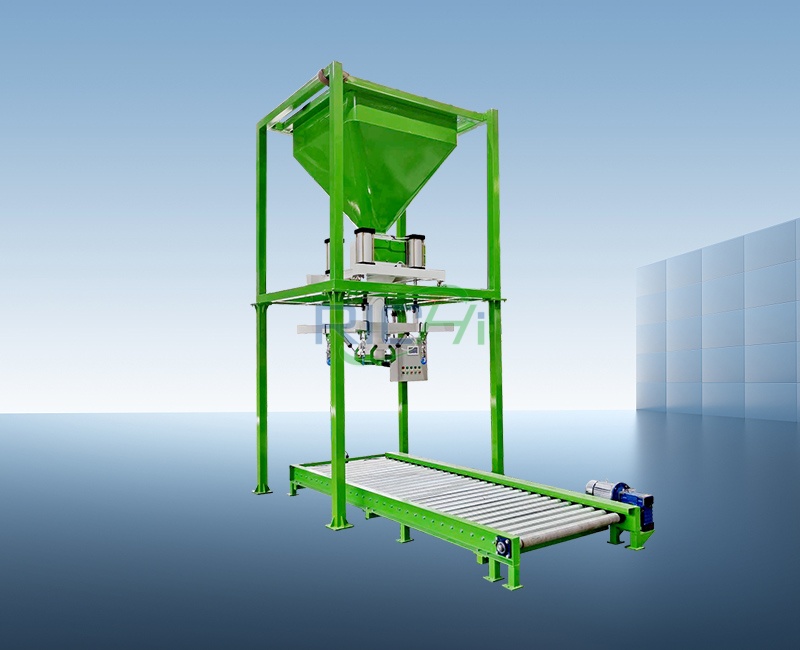

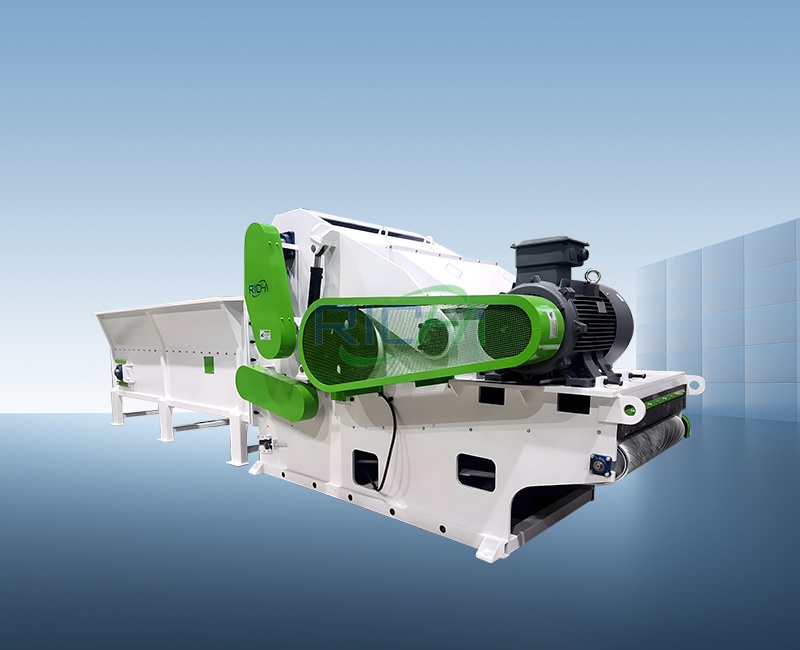

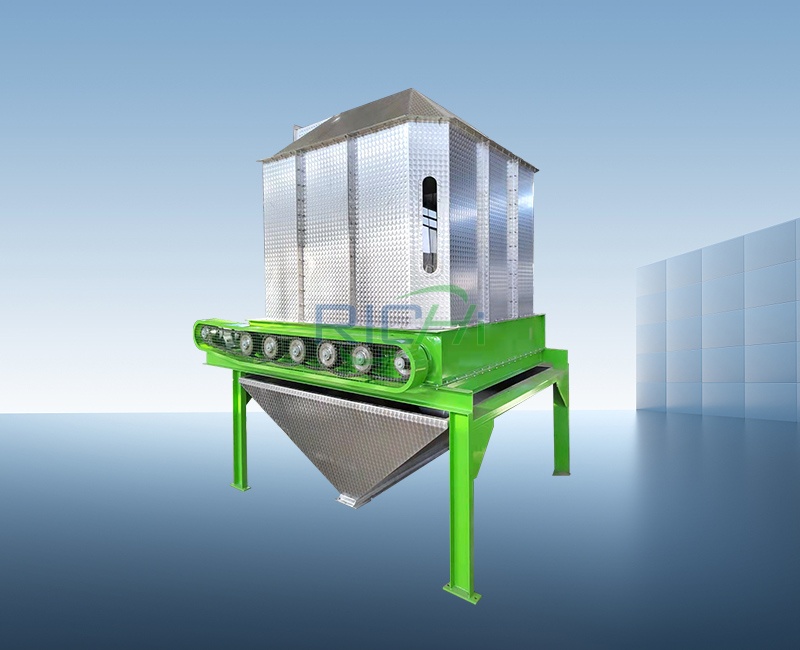

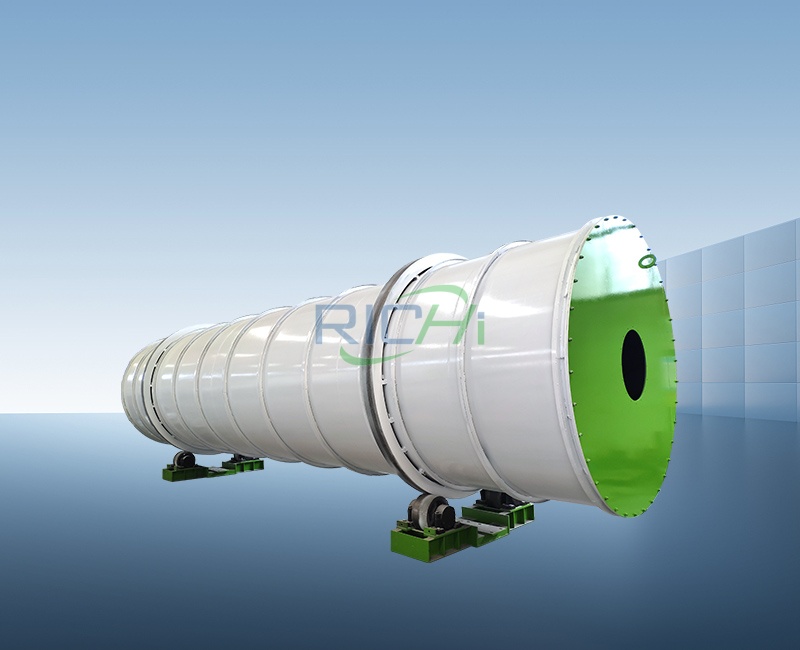

Sawdust Pellet Machine Supporting Equipment
RICHI not only provides sawdust pelletizers for the pelletizing process, but also matches other equipment that may be used in your entire production process. Just contact us and we can purchase whatever you need.
Service Process
RICHI doesn’t just offer sawdust pellet machine. We also provide reliable solutions and support for the entire procurement process. We’ve built a management system that covers the whole lifecycle – so you can sit back and relax.
Project Experience
30+
Years
Countries and Regions Served
140+
Projects Delivered
2000+
Factory Area
100,000+
㎡
About Us
Henan RICHI Machinery Equipment Co., Ltd., established in 1995, primarily focuses on the research and development and manufacturing of feed machinery, biomass pelleting equipment, organic fertilizer pelleting equipment, and complete pelleting production lines. After more than 30 years of development, RICHI has become a professional pelleting machinery manufacturer. Our products are exported to over 140 countries and regions worldwide, earning the trust of customers both domestically and internationally.
Qualification Advantages
RICHI boasts numerous international authoritative certifications and patents, including ISO9001, CE, SGS, and TÜV. This means that the equipment you purchase can smoothly pass through customs and quality standards in various countries, with no customs clearance risks and compliant delivery. Choosing RICHI means choosing a guarantee of smooth global access and worry-free production.
FAQ
Below are answers to common questions from past customers. You might have the same ones. If not, feel free to reach out anytime.
Can wet sawdust be directly processed into pellets?
→
Not recommended. If the sawdust is too wet, it’ll stick to the die and clog the machine. The pellets that do come out won’t form well. Better to use a dryer first and get the moisture down to 13%–18%. That’s more efficient than sun – drying, and the results are much better.That’s why if you’re looking for sawdust pellet machine, RICHI’s models are designed to work seamlessly with a drying step for trouble-free operation.
If the wood chips contain impurities—such as soil, sand, or small nails—will this damage the machine?
→
There’s a risk. The machine can handle small amounts, but metal and stones will really wear down the ring die and rollers. So in that case, we recommend adding a screening machine to filter out the junk. It’ll extend the life of those core parts.
Do the pellets burn for a long time?
→
Yes. The pellets from our sawdust pellet machine have few impurities, produce little ash, and leave no hard residue. They’re cleaner than coal and burn longer than firewood. Great for fireplaces, power plants, and similar applications.
Can you customize the machine for my raw materials?
→
Absolutely! RICHI can customize the ring die compression ratio, discharge structure, and discharge height to fit your needs. Hardwood, softwood, wet material – we’ll build a solution just for you.Every sawdust pellet machine from RICHI can be tailored to your specific raw material requirements.
If we plan to expand production capacity in the future, can we integrate our existing equipment?
→
Yes. Our models use a modular design. Even older machines – as long as their age and condition are reasonable – can be integrated into the new line. No need to replace everything.
Is there a warranty period? What should be done regarding equipment repairs once the warranty period has expired?
→
RICHI gives you a 12 – month warranty. During that time, if something breaks, contact our after – sales team for remote guidance. For more complicated or unusual issues, we’ll arrange a professional to come to your site.
Even after the warranty expires, we still offer genuine spare parts. If your wear parts need replacing, just contact us to arrange shipment.
