Poultry Feed Pellet Making Machine
Product Information

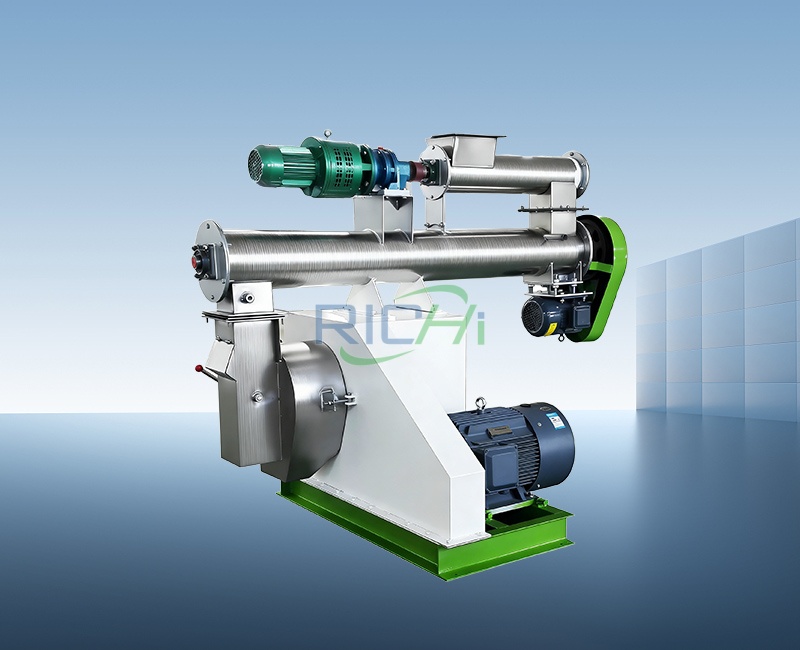

Poultry Feed Pellet Machine
Capacity: 1-40 T/H
The RICHI poultry feed pellet making machine is built specifically to make feed pellets for all sorts of poultry. It’s one of our best-selling machines, honestly. It works by physically squeezing stuff like corn, soybean meal, wheat bran, and peanut meal into tight little pellets (2–12mm). Compared to loose powder, pellets mean less waste, fewer broken bits, better taste for the birds, and they end up growing more evenly.
You can run this poultry feed pellet making machine on its own, or hook it up to grinders, mixers, coolers, and packing gear to build a full production line. The whole setup is easy to use, saves energy, lasts a long time, and keeps most of the nutrients intact.
Need one? Just reach out. RICHI’s got you covered.

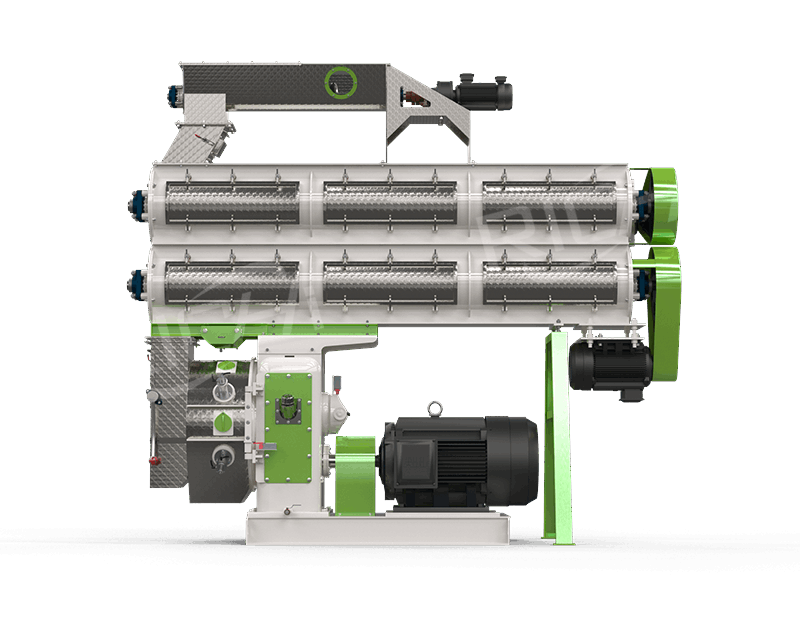

Main Components of Poultry Feed Pellet Making Machine
What’s the secret behind RICHI’s poultry feed pellet making machine? Why are the pellets so good? Well, a lot of it comes down to parts you can’t even see. Let me walk you through the main components.

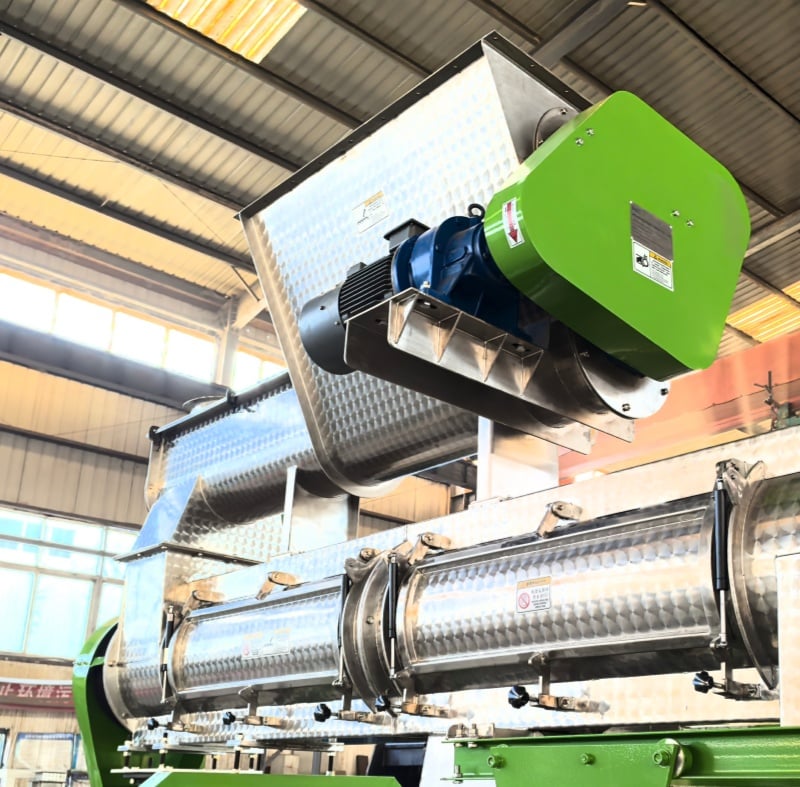

Feeder
This is where raw materials are fed in. When feeding manually, it is easy to feed too much or too little material. We have thoughtfully installed a frequency converter at the feeding port. The advantage of this is that it can reduce the speed and feed material in real time, and the ring die will not be blocked due to instantaneous overload, which can reduce the number of times the machine needs to be stopped for cleaning.
In addition to this, it also protects the main motor. If the feed is excessive, it will increase the current of the main motor, putting pressure on the bearings and gears. The current fluctuation generated by the variable frequency uniform speed feeding is relatively small, which can reduce wear and tear on the transmission components.
Conditioner
There’s a steam inlet on the conditioner. Pump in steam, and it cooks, sterilizes, conditions, and gelatinizes the mash. You can tweak the steam amount with a valve. If you’re making feed for chicks or ducklings, or you just really want top-notch pellets, we can even add more conditioner layers – that way everything gets cooked through and through.
Our conditioner has a larger tube diameter than most conditioners on the market, allowing for greater steam output and providing an extra layer of assurance for the thorough cooking and gelatinization of the raw materials.
Pelletizing Chamber
After being matured and gelatinized in the conditioner, the raw materials immediately enter the pelleting chamber. The pelleting chamber is like a magic space, transforming the paste into uniform, compact strip-shaped pellets. The secret lies in the ring die, pressure rollers, and cutter within the pelleting chamber.
The paste is intensely compressed between two pressure rollers and then extruded through a perforated ring die. Because the die holes are circular, the resulting pellets are naturally cylindrical strips. The cutter then cuts these cylindrical strips to a uniform length.
It’s important to note that the compression ratio between the ring die and the pressure rollers is adjustable, allowing you to choose between denser or looser pellets.
Drive Motor
To ensure the stable operation of our poultry feed pellet mill, we specifically adopted a Siemens motor. You can think of it as the heart of the machine; it powers the rapid rotation of the paddles in the conditioner, promoting the maturation of the raw materials, and provides ample power to the pelleting chamber, allowing key components such as the feeder, pressure rollers, and ring die to work continuously.
Regardless of the type of poultry feed you use, it can easily support the entire machine for processing. You can understand it as: without this motor, the machine would be useless.
Poultry Feed Pellet Making Machine’s Parameters
Chickens, ducks, geese – whatever poultry you’re feeding, one machine does it all. We’ve got a bunch of different models. Not sure which one fits? Just hit us up. We’ll help you figure it out.
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
|---|---|---|---|---|---|---|---|---|
| Main Motor Power ( kW ) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Power ( kW ) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Modulator Power ( kW ) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Inner Diameter ( mm ) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellet Diameter ( mm ) | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 |
| Production Volume ( T/H ) | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
Just a heads-up: the outputs in the table are what you’d get with a full production line. In real life, things like how well you ground the ingredients, mixing, moisture levels, and your recipe will change the numbers. So take it as a ballpark.
Videos of Poultry Feed Pellet Making Machine
The following videos showcase the application of RICHI poultry feed pellet making machine in production lines in different countries. You can click to watch and learn about the operational performance of our equipment.

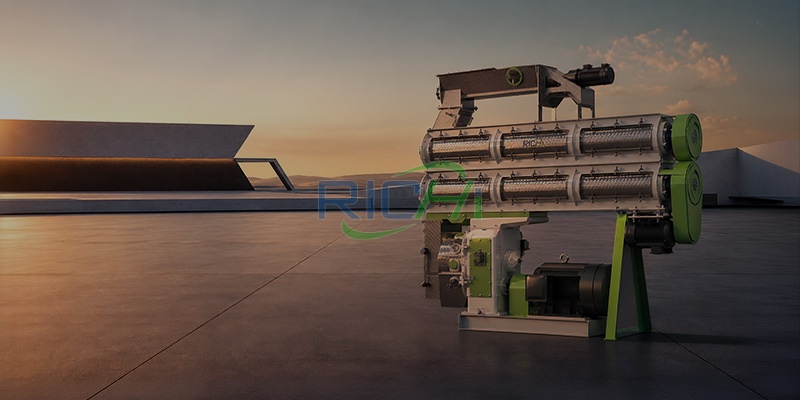

15 T/H Poultry Feed Pellet Making Machine in Uganda
5-6 T/H Poultry Feed Pellet Making Machine in Oman
Advantages of Poultry Feed Pellet Making Machine
We’ve put a bunch of advanced manufacturing techniques into this poultry feed pellet making machine. The payoff? A tougher machine and better feed quality.
The whole body is 304 stainless steel – tough against wear and rust, so it’ll sit in your workshop for years without issues.
Inside the conditioner, those paddles that toss the material around get really hot. But they’re forged, not cast, so they can handle the heat and last way longer.
And the motor? It’s a Siemens. Small footprint, low energy use, rock-solid performance. Keeps the whole poultry feed pellet making machine humming along smoothly for a long time.
Long Service Life
Our conditioner pipe is longer and thicker than most on the market. That means the feed spends more time conditioning – better cooking, better gelatinizing, better sterilization. End result? Better pellets. And with twin rollers pressing them, the pellets come out nice and dense, not too hard, not too soft. They won’t crumble easily during shipping.
High Pellet Quality
A lot of customers worry: “I need pellets for chickens, ducks, and geese – different recipes, different lengths. Can one machine handle it all? Or do I have to buy more?” Nah, don’t worry. Our poultry pellet mill can manage all of them. Need a different pellet length? Just tweak the gap between the cutter and the ring die. It’s super adaptable.
Strong Adaptability
Applications of Poultry Feed Pellet Making Machine
Our poultry feed pellet mill covers outputs from 1 to 40 tons per hour, and pellet diameters from 2 to 12mm. Laying hens, meat birds, waterfowl, or specialty small poultry – this machine can handle it all with basically one click.
Application of Pellet Mills for Young Poultry
Baby birds have soft beaks and underdeveloped digestive systems. They need feed that’s tasty, packed with nutrients, and easy to digest. If pellets are too big, they’ll struggle to eat or get indigestion. So for young poultry, go with small 2–3mm pellets. Lower the compression ratio a bit to keep them nice and soft.
Application of Pellet Mills for Egg-Laying Poultry
Think laying hens, ducks, breeding geese. They’re producing eggs non-stop, so they need high energy and calcium. They also like to peck at individual pellets – if there’s too much powdery feed, they won’t get enough nutrients, and that’ll hurt egg production and shell quality. Bump up the ring die compression ratio and make tight 3–5mm pellets. That cuts down on powdering during transport and feeding, so the feed stays nutritionally whole.
Application of Pellet Mills for Meat Poultry
Broilers, meat ducks, meat geese – they grow fast and eat a lot. And they fight over food. If pellets are too soft, they’ll pick out the good bits and leave the rest, messing up the balanced nutrition and wrecking your feed conversion ratio. So go with a moderate compression ratio and make 4–6mm pellets – firm but not rock hard. This helps their digestion and stops them from being picky eaters.
Application of Waterfowl Feed Pelletizers
Ducks and geese feed in the water. If your pellets fall apart in a few minutes, you’re wasting feed and polluting the water. Plus, waterfowl feed has a lot of coarse fiber, which normally clogs up the machine. So here’s the trick: use a ring die with holes ≥5mm and crank up the compression ratio. That gives you pellets that won’t disintegrate in water – great water resistance. If you’re selling feed, this kind of quality means farmers won’t worry about “feeding the water,” and your product will outsell the competition. No doubt.
Poultry Feed Pellet Production Line

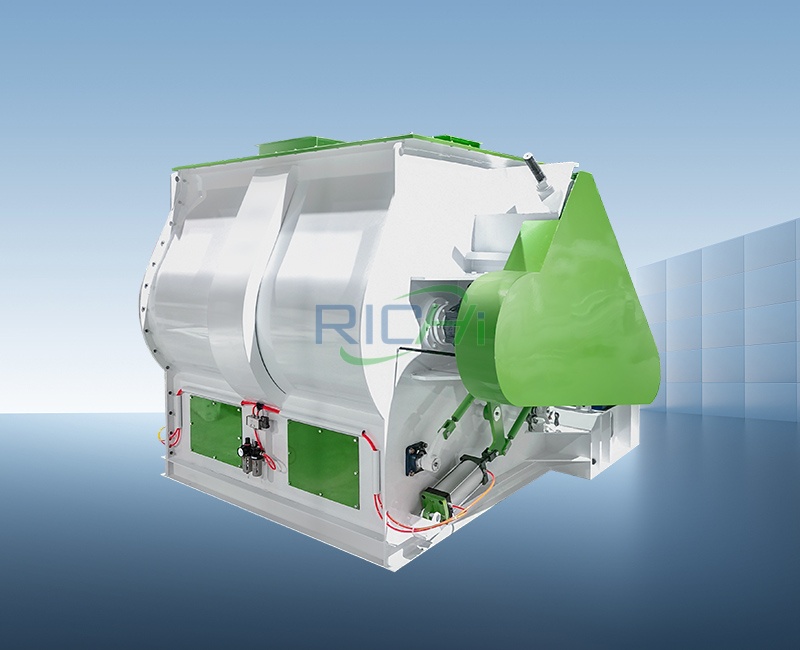

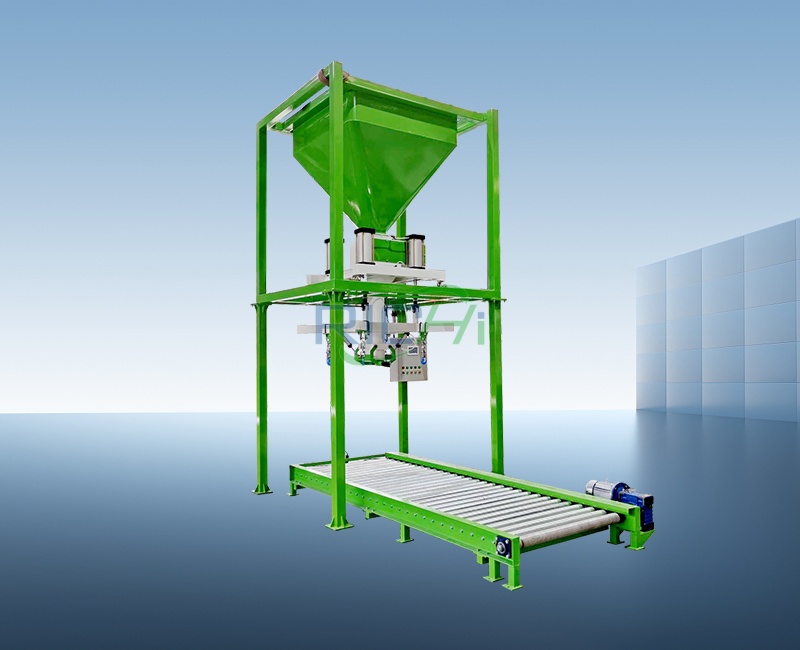

To make perfect poultry pellets that store well, you can’t just rely on a pellet making machine for poultry feed. You also need to get the grinding and mixing right upfront, and then cooling and screening afterwards. RICHI machinery don’t just make pellet mills – we build complete production lines. Need one? Hit us up for a custom setup.

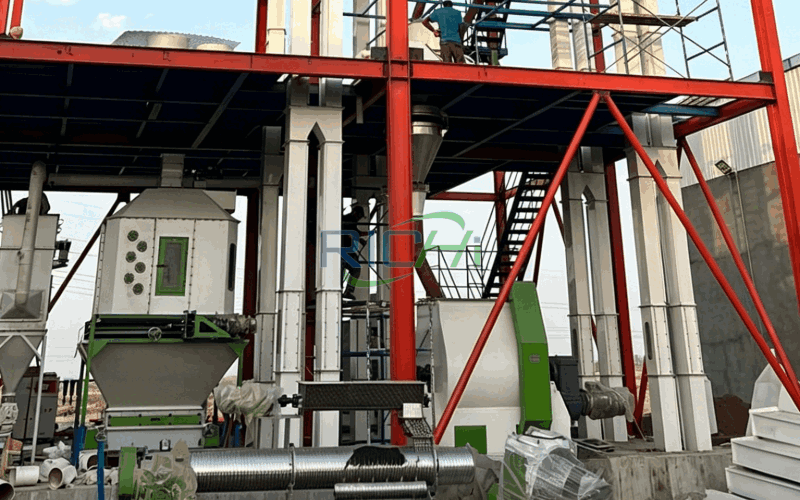

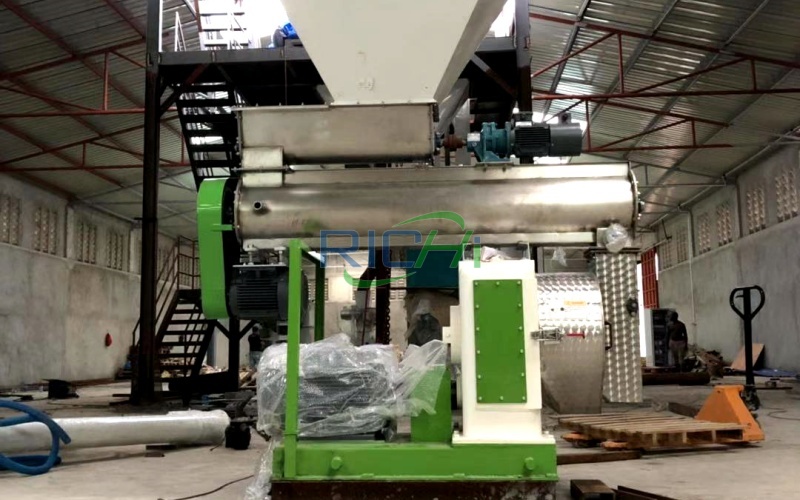

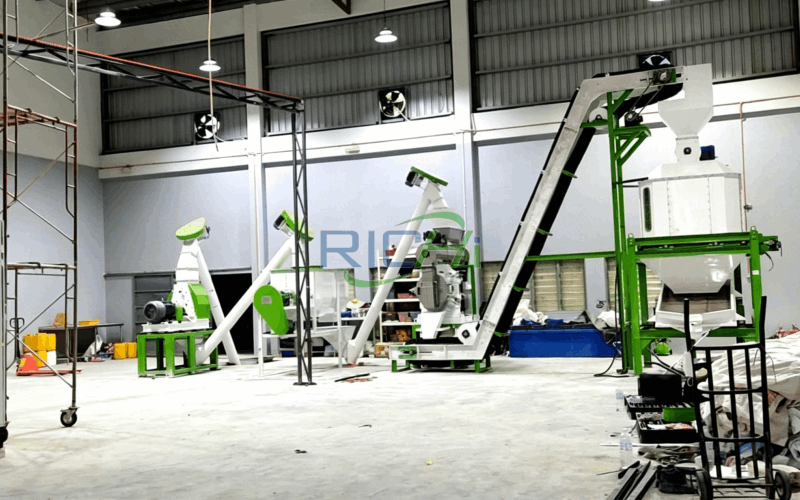

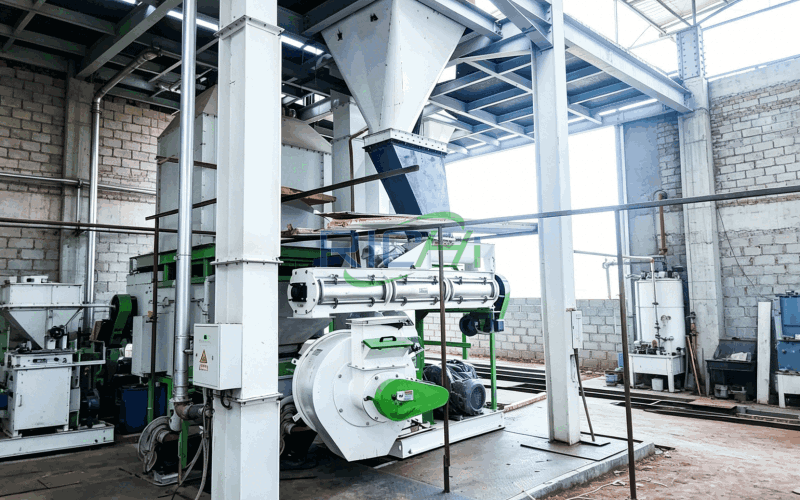

Poultry Feed Pellet Plant Project
We’ve shipped pelleting solutions to over 140 countries, so we’ve picked up a lot of experience. Here are a few examples that might give you some ideas.
Our Services
You’re probably wondering what else we offer besides the machine itself. Don’t worry – we stick with you from the very first chat about selection and customization, all the way through delivery and after-sales.
Project Experience
30+
Years
Countries and Regions Served
140+
Projects Delivered
2000+
Factory Area
100,000+
㎡
About Us
Henan RICHI Machinery Equipment Co., Ltd., established in 1995, primarily focuses on the research and development and manufacturing of feed machinery, biomass pelleting equipment, organic fertilizer pelleting equipment, and complete pellet production lines. After more than 30 years of development, RICHI has become a professional pelleting machinery manufacturer. Our products are exported to over 140 countries and regions worldwide, earning the trust of customers both domestically and internationally.
Qualification Advantages
RICHI boasts numerous international authoritative certifications and patents, including ISO9001, CE, SGS, and TÜV. This means that the equipment you purchase can smoothly pass through customs and quality standards in various countries, with no customs clearance risks and compliant delivery. Choosing RICHI means choosing a guarantee of smooth global access and worry-free production.
FAQ
Here are some common questions from past customers. You might have the same ones – but if you’ve got something else, just give us a shout.
What types of poultry feed is this machine good for?
→
It makes feed for chickens, ducks, geese, pigeons – you name it. You can run corn, soybean meal, wheat bran, rapeseed meal, cottonseed meal, even trace mineral premixes. The pellets come out more palatable and easier for poultry to digest.
Do I need to control moisture before using the poultry feed pellet making machine?
→
Yeah, you do. If your raw material is too wet, dry it down to between 13% and 18% – you can use a dryer for that. That way your pellets won’t be too crumbly (if too dry) or clog up the machine (if too wet). By the way, we sell dryers too. Just ask.
How do I add oil (say, 2% soybean oil) to the feed?
→
If you add more than 1% oil and then pellet directly, the pellets won’t hold their shape. Here’s the trick: pre-mix ≤1% of the oil with the other ingredients in the mixer. Then, after pelleting, spray the remaining oil onto the pellets. We can add a post-spray system to your machine – works like a charm.
What if the ring die gets clogged?
→
Clogs usually happen because the material is too wet, leftover feed hardens in the holes, or there’s junk mixed in. Try these:
①Take the ring die off and use a special unclogging needle to poke out the stuck feed and dirt.
②Soak it in warm water – time depends on how bad the clog is, but no more than 2 hours. That softens things up, then you can tap it out.
③Fill the clogged holes with a mix of grease and fine sand, then run the machine empty for about 10 minutes.
What if wear parts get damaged?
→
Ring dies, rollers – they wear out over time. That’s normal.
If yours need replacing, buy them from us. We’ll send original factory parts – no middlemen marking up the price. We’ll ship ASAP so your machine gets back up and running.
Do you offer technical guidance after I buy the machine?
→
Absolutely. We’ve got 24/7 remote tech support. Not only can we walk you through everything, but we can also provide different pellet recipes based on what you need. We’ll make sure you’re producing perfect poultry pellets.
