Pallet Crushing Machine
Product Introduction
What is Pallet Crushing Machine
RICHI pallet crushing machine is designed specifically for wide, flat raw materials. It’s got a broad, flat feed opening—so it’s perfect for stuff like nail-embedded boards and furniture timber.
The whole pallet crushing machine includes a feed inlet, hydraulic system, cutting mechanism, and a discharge belt conveyor. It chops materials into uniform chips—usually around 2 to 4 cm. Discharge is smooth, operation is steady. It gives solid coarse-crushing support for downstream industries like timber recycling, biomass processing, and board reuse. In short, it’s an ideal machine for waste wood recovery and recycling.
Related Videos of Pallet Crushing Machine
This pallet crushing machine can easily crush large pieces of wood of various types. To help you gain a more intuitive and clear understanding of its crushing performance, the two videos below may be helpful.

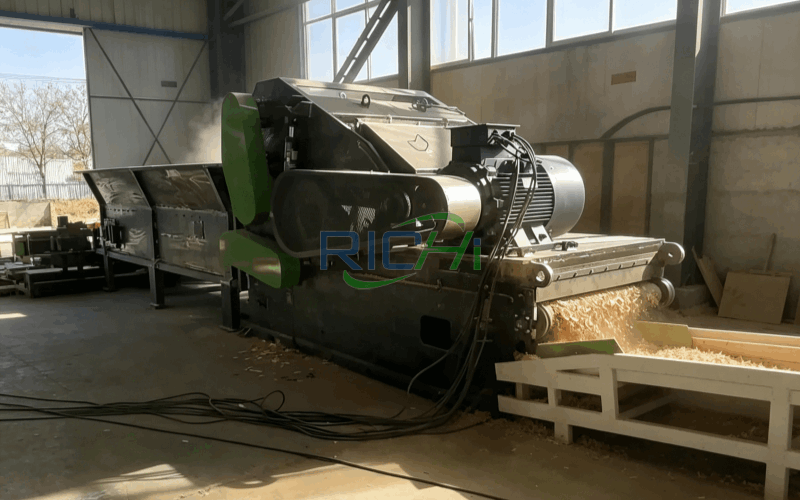

Actual Effect Demonstration of Pallet Crushing Machine
Appearance of Assembled Pallet Crushing Machine
Composition of Pallet Crushing Machine
We’ll break it down by its main components, based on what you actually need. That way, you’ll get a clear picture of how it works.

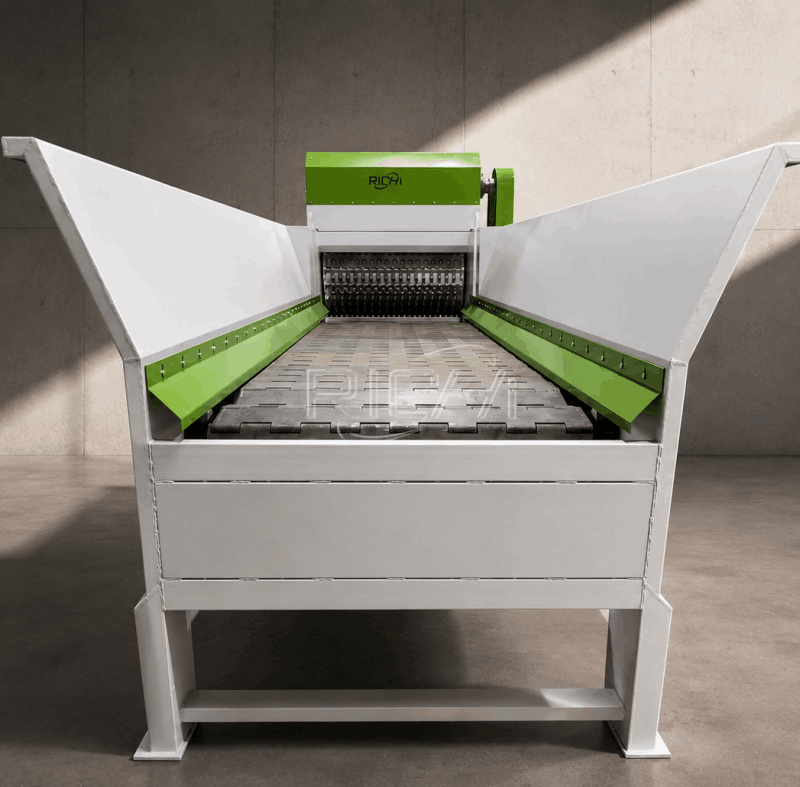

Feeding System
This is mainly the chain plate conveyor and feed rollers. You dump your wood material onto the conveyor—it’s got a large surface and can handle heavy loads, so you can feed a lot at once. The feed rollers sit pretty close to the conveyor plate. Why? Because most of the stuff this pallet crushing machine processes is flat, so you don’t need a big gap.

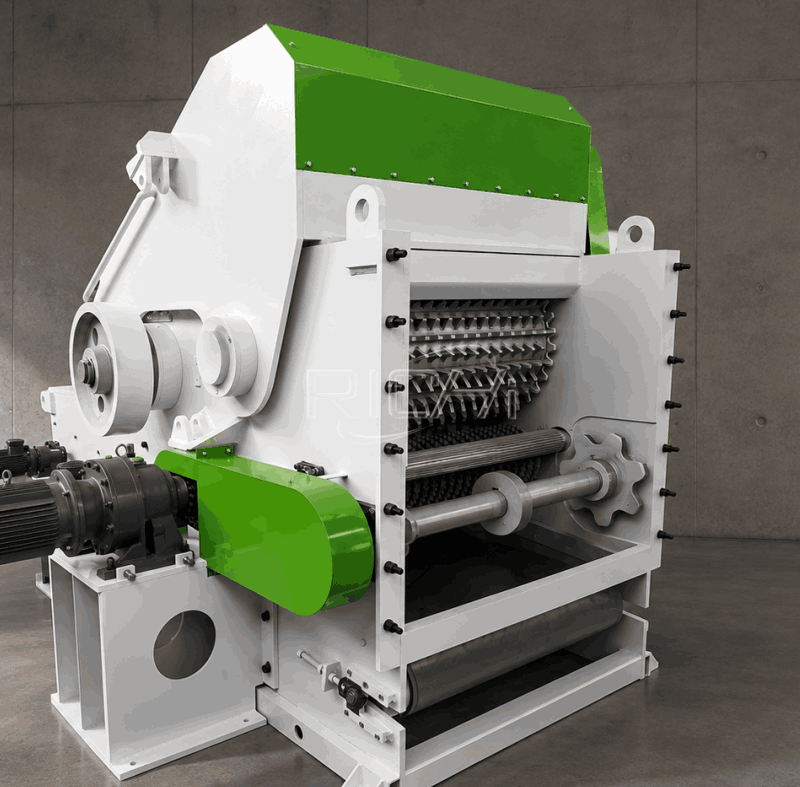

Crushing System
This is the heart of the pallet crushing machine—it decides the final crushing result and what the output looks like. Inside, you’ve got high-strength, wear-resistant hammerheads with serious impact power. They break up big pieces of wood—even ones with nails—and then a stable cutting mechanism shears everything into small, uniform flakes. Perfect for the next steps in recycling or reuse.

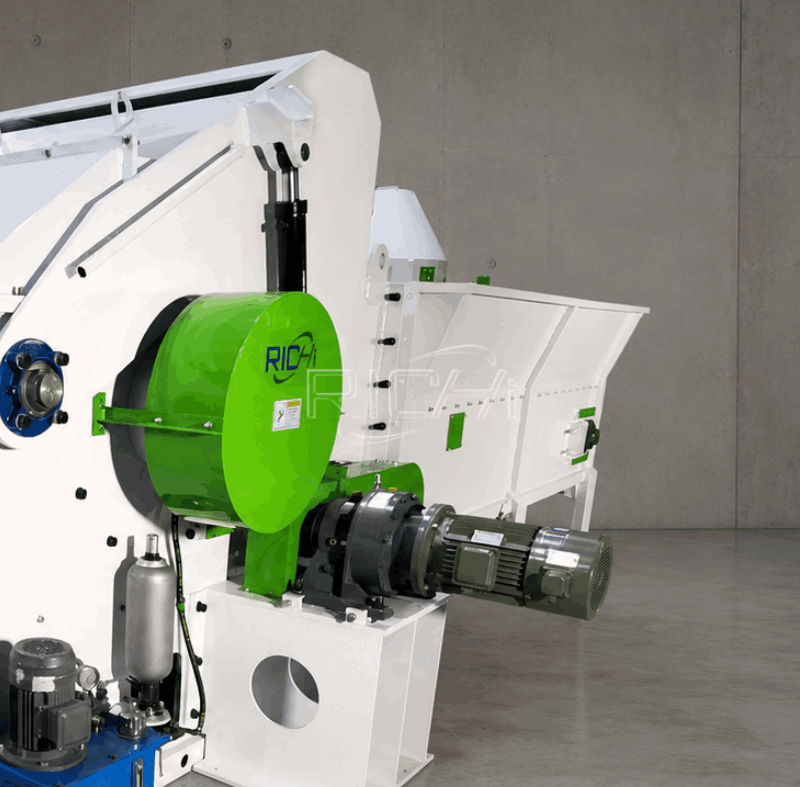

Hydraulic System
This gives the whole pallet crushing machine steady, controllable power—and makes it work well with materials of different thicknesses. Got a thicker piece? Use the hydraulic rods to adjust the gap between the feed roller and the chain plate. That stops clogging and helps feeding and crushing go nice and smooth.
Pallet Crushing Machine Details & Specs
RICHI has various models of pallet crusher for sale. To help you match one to your exact needs, we’ve put together a detailed spec sheet. All parameters are actual factory configurations—so compare with confidence.
| Model | RIBPC 1000*300 | RIBPC 1000*350 | RIBPC 1250*400 | RIBPC 1250*450 | RIBPC 1250*500a | RIBPC 1250*500b | RIBPC 1500*450 |
| Feed Opening Size（mm） | 1000*300 | 1000*350 | 1250*400 | 1250*450 | 1250*500 | 1250*500 | 1500*450 |
| Main Motor Power（kw） | 75 | 90 | 110 | 132 | 160 | 220 | 220 |
| Feeding Power（kw） | 4*2 | 5.5*2 | 7.5*2 | 11+7.5 | 11+7.5 | 11+7.5 | 11+7.5 |
| Hydraulic Pump Power（kw） | 1.1 | 1.1 | 1.1 | 2.2 | 2.2 | 2.2 | 2.2 |
| Discharge Conveyor Power（kw） | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Number of Hammerheads | 20 | 24 | 24 | 24 | 28 | 32 | 32 |
Still not sure which one fits you best? Just reach out. We’ll recommend the most cost-effective and suitable option based on your needs.

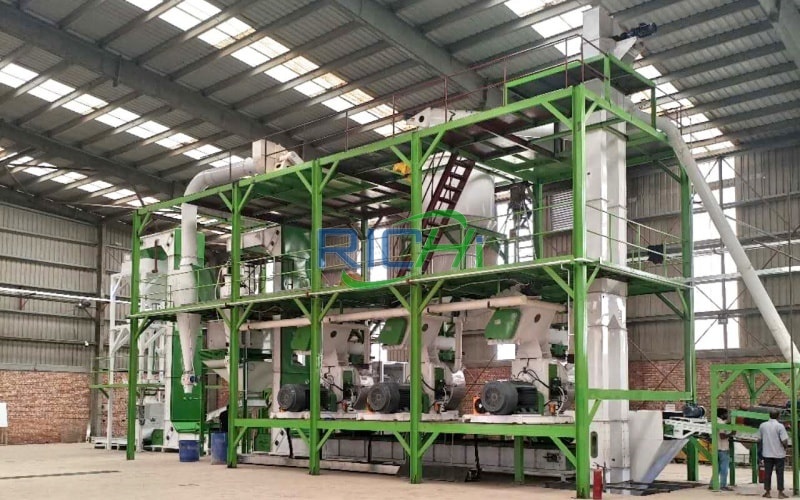

Pallet Crushing Machine Customer Cases
RICHI pallet crushing machines are known for their efficient crushing and basic impurity removal. They’re now widely used in many countries and regions. These machines are built to handle waste wood with embedded metal, and they fit seamlessly into biomass pellet production lines.
Advantages of Pallet Crushing Machine
You probably care most about what real benefits you’ll get after buying it. We’ve taken market research and customer feedback to keep improving this auxiliary equipment—and it’ll help you out in a bunch of ways.
The hammerheads are quenched, so they’re super hard and wear-resistant. That means less wear when you’re processing nail-embedded wood. Plus, the pallet crushing machine has a heavy-duty, thickened housing that’s been annealed—so it won’t warp easily even after years of use. Way more durable than regular models. You won’t need to replace it anytime soon.
Tough and Wear-Resistant – Lasts Way Longer
The sealed bearing design keeps dust and moisture out—so no wear or rust from those troublemakers. Add in the stable heavy-duty housing, and you get low failure rates and long-term reliable operation. Day-to-day, just basic lubrication and cleaning. That’s it.
Stable Operation, Low Maintenance
A lot of traditional crushers have narrow feed openings. So when you’ve got wide wood, you have to cut it down first—a real time-waster. RICHI’s pallet crushing machine? Wider opening. You can feed big flat pieces directly—no pre-cutting, no splitting. Just load and go. Compared to traditional machines, you save a ton of labor and processing time.
Saves Labor and Time
Lots of machines can’t handle wood with nails. Pulling them by hand? Expensive and slow. This wood pallet crusher? The hammerheads just smash through nail-embedded material—and the nails get discharged right along with the wood, no damage to the core components. So you don’t need extra nail-removal gear or labor. Your wood processing speed basically doubles.
Better Processing Efficiency
The conveyor at the feed inlet is a widened chain-plate type. It handles heavier loads and has more grip—so you can feed large amounts at once, keeping things steady from the start. In the same amount of time, its crushing output is way higher than equipment with regular belt conveyors.
Higher Throughput
Project Experience
30+
Years
Countries and Regions Served
140+
Projects Delivered
2000+
Factory Area
100,000+
㎡
About Us
Henan RICHI Machinery Equipment Co., Ltd., established in 1995, primarily focuses on the research and development and manufacturing of feed machinery, biomass pelleting equipment, organic fertilizer pelleting equipment, and complete pelleting production lines. After more than 30 years of development, RICHI has become a professional pelleting machinery manufacturer. Our products are exported to over 140 countries and regions worldwide, earning the trust of customers both domestically and internationally.
Qualification Advantages
RICHI boasts numerous international authoritative certifications and patents, including ISO9001, CE, SGS, and TÜV. This means that the equipment you purchase can smoothly pass through customs and quality standards in various countries, with no customs clearance risks and compliant delivery. Choosing RICHI means choosing a guarantee of smooth global access and worry-free production.
FAQ
Here are some common questions about pallet crushing machines. We’ve put them together hoping they’ll help.
What’s the difference between a pallet crusher and a drum wood chipper?
→
They work in a similar way, but the main difference is in some key design details.
Feed inlet:
A pallet crusher’s inlet is flatter and wider—better for flat, wide stuff like furniture timber or broad planks. It uses a chain-plate conveyor that can handle heavy loads and won’t slip, so it’s great for batch feeding. A drum chipper’s inlet is narrower—better for logs and branches. It uses a belt conveyor with limited load capacity.
Cutting system:
The pallet crushing machine has internal hammerheads that can break down big wood—especially wood with nails. Those metal bits don’t hurt the machine. A drum chipper uses cutting blades; it doesn’t have hammerheads, so it can’t handle wood with nails or other metal objects.
What if nails wear down the hammerheads when crushing nail-embedded wood?
→
Don’t worry—that’s normal wear. Our hammerheads are made of high-strength alloy steel and quenched, so they’re much more wear-resistant. They can take the impact from nails and last a lot longer than standard hammerheads. If they do eventually wear out, just contact us to replace them. The maintenance cost isn’t bad.
Can I get wood chips outside the 2–4 cm range?
→
Yes. The pallet crushing machine has a customizable screen inside. Swap in a screen with a different mesh size—based on what you need—and you can adjust the chip size. 2–4 cm is just our standard. We can tailor the size for other downstream uses like biomass pellets, wood recycling, incineration, etc.
Besides replacing hammerheads and lubricating bearings, what else does routine maintenance involve?
→
You’ll need to regularly clean out leftover wood and debris from the housing—so buildup doesn’t block the discharge. Also check the chain plates at the feed inlet for wear. If they’re badly worn, replace them in time.
How do shipping, transport, and installation work after I buy the equipment?
→
Our process is clear and standard. Once the contract is signed, we start production as agreed, then arrange logistics to ship the machine to your specified location. After it arrives, we can provide installation guidance and commissioning services to make sure everything runs as it should.
What after-sales services do you offer?
→
We support a full-process service system. That means initial consulting on model selection, mid-stage testing at our factory with your own raw materials, and then later-stage installation, commissioning, technical support, and spare parts supply. Need replacement parts? Just give us a shout, and we’ll arrange shipment as quickly as we can.
