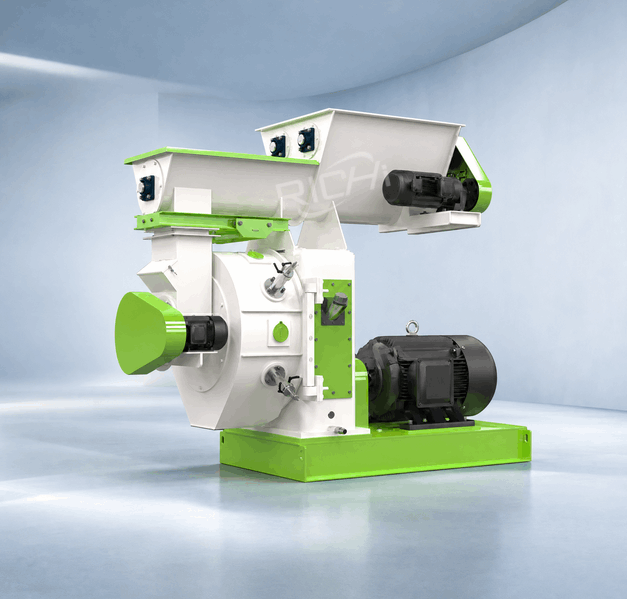

Organic Fertilizer Granulator Machine
What is an Organic Fertilizer Granulator Machine
If you want to produce organic fertilizer pellets, this organic fertilizer granulator machine is essential. It processes treated organic materials—like livestock manure, straw, and mushroom residue—into uniform cylindrical pellets. These pellets flow well and create little dust. They are also easier to transport and store.
Here is how the organic fertilizer granulator machine works. The material is squeezed and compacted by the ring die and the press roller. Then it is extruded through the ring die holes. Finally, a cutter trims it into pellets of uniform length.
4-12mm
Adjustable Pellet Diameter
1-26T/H
Customizable Production Capacity
Common Raw Materials
Chicken Manure
Cow Manure
Pig Manure
Sugarcane Bagasse
Fallen Leaves
Straw
Mushroom Residue
Food Waste
Sludge
Main Application Scenarios
Farmland Planting
Greenhouse Fertilization
Soil Remediation
Urban Greening
Sales Quantity
accumulated
1400+
units
Countries of Sale
- Southeast Asia
- Europe
- Africa
- South America
- South Asia
Organic Fertilizer Granulator Machines Classification
After 30 years of exploration and development, RICHI has created a full range of organic granulator fertilizer machines. These machines are designed based on customer needs and common raw material types.
Designed for fermenting chicken manure, it is suitable for chicken farms to carry out resource-based treatment of manure and sewage. It is equipped with a forced feeding system, which ensures smooth feeding and neat finished products.
This organic fertilizer granulator machine handles fermented cow manure, which has high fiber content. It compresses the material into stable pellets with a moderate density. It is a good fit for cattle farms and organic fertilizer plants.
This is a universal model. It can process chicken manure, duck manure, goose manure, and more. It is ideal for farms that raise different types of poultry.
Horse Manure Pellet Maker
Fermented horse manure has long fibers and a fluffy texture. This organic fertilizer granulator machine has a special mold design. It lowers the risk of blockage and helps turn horse farm waste into valuable products.
Straw Pellet Machine
This model is specially made for decomposed straw and other high-carbon agricultural waste. It includes a bridging feeder. This design solves the problem of light, fluffy straw getting stuck in the feed inlet.

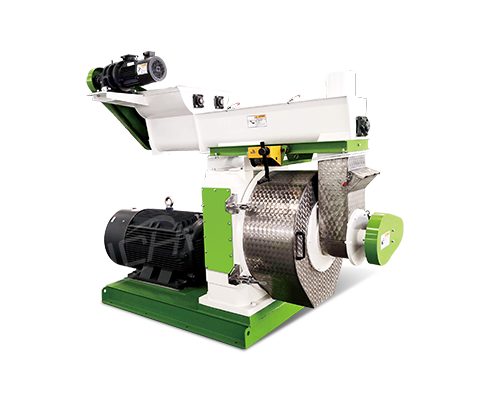

Food Waste Pellet Machine
This organic fertilizer granule making machine is made mostly of 304 stainless steel. It resists corrosion well. It can process pre-treated and fermented kitchen food waste with ease.
Sludge Pellet Machine
This model is designed for treated municipal sludge that meets required standards. Sludge is sticky and tends to clump. We have optimized the feeding and die parts to handle these challenges.
Fruit Pomace Pellet Machine
Suitable for processing fermented grape pomace, sugarcane bagasse, citrus pomace and other fruit and vegetable processing by-products, it adopts a forced feeding and anti-clogging mold hole design, and the produced pellets can be stably shaped.
Organic Fertilizer Granulator Machine Structure
Faced with a complex and diverse range of organic fertilizer raw materials, several core components of this organic fertilizer pellet mill played an important role, each performing its own function in its respective “position”.
Feeding Port
Equipped with a variable frequency arch-breaking feeder, materials can smoothly enter the pellet mill from here.
Pressure Roller
The biomass-specific pressure roller, with its special gear and groove design, allows the material to be compactly compressed into the ring die hole.
Ring Die
The area where the material is squeezed out by the pressure rollers has many round holes of the same diameter on its surface.
Forced Feeder
This device forces material into the granulation chamber. It is one of the key components that helps prevent blockages.
Safety Pin
If the machine becomes blocked or overloaded, the safety pin breaks automatically. This cuts off power transmission and protects the equipment.
Motor
This is the power source for the whole organic fertilizer granulator machine. It provides enough energy to keep the machine running steadily.
Organic Fertilizer Granulator Machine Parameters
RICHI Machinery is good at understanding customer needs through communication. Based on these insights, we have developed several models of new type organic fertilizer granulators. We aim to meet the needs of different customers. You can contact us with details about your raw materials and target output. Our engineers will then recommend the most suitable model for you.
| Model | FZLH250 | FZLH320 | FZLH350 | FZLH420 | FZLH520 | FZLH678 | FZLH768 |
| Main Motor Power (kW) | 22 | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch-Breaking Feeder Power (kW) | 2.2 | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kW) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter (mm) | 250 | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4-12 | ||||||
| Output (T/H) | 1-1.5 | 2-3 | 3-5 | 6-8 | 9-12 | 18-22 | 22-26 |
Explanation: The production figures mentioned above represent the rated output under a complete production line. The actual production volume, along with the handling of raw materials and moisture content, has a direct impact on the output.
Organic Fertilizer Granulator Machine Cases
Looking at data alone may not give you a clear picture of how the organic fertilizer granulator machine works in real situations. The following cases might help. Whether you need a single organic fertilizer pellet making machine or a complete organic fertilizer production line, we can provide the right solution. You can also contact us for more pellet plant project.
5 T/H Organic Fertilizer Granulator Machine for Sale in Vietnam
Model: FZLH420
Pellet Size: 6 mm diameter
Raw Material: fresh durian shells
Case Context: The client is an organic fertilizer processing plant located in an area surrounded by durian plantations, providing abundant raw material in the form of durian shells. Having already acquired other auxiliary equipment, the client ultimately purchased an organic fertilizer pelletizer to process fresh durian shells into organic fertilizer pellets for sale.
3-4 T/H Organic Fertilizer Granules Making Machine in Greece
Model: FZLH350
Pellet Size: 6 mm
Raw Materials: olive pomace
Case Context:The client has composting facilities, but the finished product is in powder form, making transportation inconvenient and resulting in a low selling price. The client wants to increase their income by processing the powder into granular organic fertilizer. Considering the high oil content of olive pomace, we modified the organic fertilizer granulator to prevent sticking, reducing the likelihood of clogging.
4 T/H Organic Fertilizer Granulator Machine in the Philippines
Model: FZLH320
Pellet Size: 4.5mm
Raw Materials: fermented cow manure, fermented chicken manure
Case Context:The client is located near many poultry farms, facing significant manure disposal challenges. They wanted to purchase an organic fertilizer pelletizer capable of processing both chicken and cow manure simultaneously. To meet the local hot and humid climate and the client’s production capacity requirements, we recommended an organic fertilizer pelletizer equipped with a forced feeding device.
6 T/H Organic Fertilizer Granules Manufacturing Machine in Mexico
Model: FZLH420
Pellet Sizes: 8 mm
Raw Materials: fermented cow manure, corn stalk powder
Case Context:The client is a large agricultural waste treatment company. They previously used a disc pellet mill, but the pellets produced lacked strength and frequently broke during transportation, making it difficult to sell the finished product. Therefore, they decided to replace it with a RICHI ring die pellet mill. Currently, the organic fertilizer pellet mill purchased by the client has been running stably for 8 months.
How to Make High-quality Organic Fertilizer Pellets
How do you turn poultry manure, fruit pomace, and agricultural waste into organic fertilizer pellets? Granulation alone is not enough. There are many other steps before and after. Each step affects the final quality. If you don’t want to handle all the details yourself, you can also order a complete organic fertilizer production line.
01.
Preprocessing
Organic raw materials come from many sources. They may contain stones, metal scraps, wood chips, or feathers. This step removes these impurities. Cleaner materials help protect downstream equipment—like the turner, crusher, and organic fertilizer granulator machine—from damage.
02.
Fermentation
This is a key step that determines pellet quality. It also separates high-quality fertilizer from low-quality products. During production, you can adjust the carbon-to-nitrogen ratio and moisture level based on your raw materials. You can also add fermentation agents to speed up decomposition. A turner aerates the pile regularly. This supplies oxygen and creates good conditions for fermentation.
03.
Crushing
After fermentation, the material may look loose. But there are still lumps of different sizes inside. If the material is not uniform, it is not ready for granulation. Crushing breaks up these lumps into a fine, even powder. This helps with later mixing and improves the pellet formation rate.
04.
Mixing
The crushed powder goes into a mixer. This step determines how evenly nutrients are distributed in the final product. Imagine you have added trace elements and biological agents. If mixing is not thorough, some pellets may lack these ingredients. That would affect the fertilizer’s effectiveness.
05.
Pelletizing
No matter what raw material you use, granulation is the most important step. In this process, the uniform powder is squeezed between the ring die and press rollers. It is compressed and pushed out through the die holes. A cutter then slices it into pellets of even length.
06.
Cooling
Granulation generates heat from squeezing and friction. The fresh pellets come out hot. If you pack them immediately, the heat cannot escape. This can lead to mold and spoilage. Cooling removes the remaining heat and helps the pellets set quickly.
07.
Screening
This step may seem minor, but it affects the final appearance. If you use the fertilizer yourself, you might not care much about how it looks. But if you plan to sell it, appearance directly affects the price. Screening removes dust and broken pieces. Only the perfect pellets pass through.
08.
Packaging
You can transport fertilizer pellets in bulk or in bags. Bagging helps protect the pellets from damage. Weighing and packing are important steps. At this stage, you fill bags according to the set weight, seal them, and then store or ship them. This completes the full production process.
Core Equipment for Making Organic Fertilizer Pellets
Besides the organic fertilizer granulator machine, a full production line needs other auxiliary equipment. If you are thinking of building an organic fertilizer pellet production line, you may want to learn about these machines.

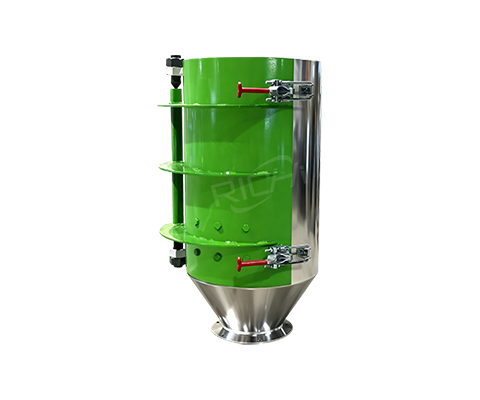

Raw Material Cleaning Machine
It is specially designed to clean ferromagnetic metal impurities from organic fertilizer raw materials. It can attract metal impurities such as iron filings, screws, and iron blocks by relying on the magnetic attraction of the raw materials, thus protecting other equipment.

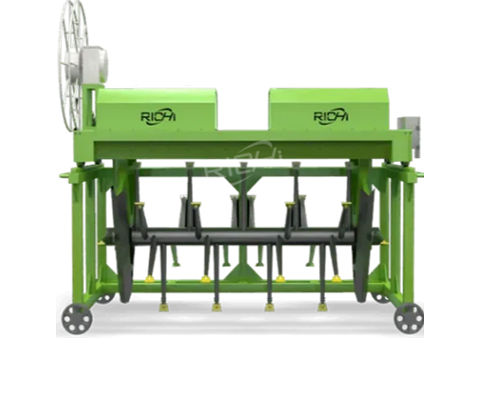

Fertilizer Compost Compost Turner
The key equipment for the fermentation and maturation of organic fertilizer can turn over and toss the material piles, serving to provide nutrients, dissipate heat, and mix the materials. This process accelerates the high-temperature maturation of the raw materials and kills insect eggs and pathogens.

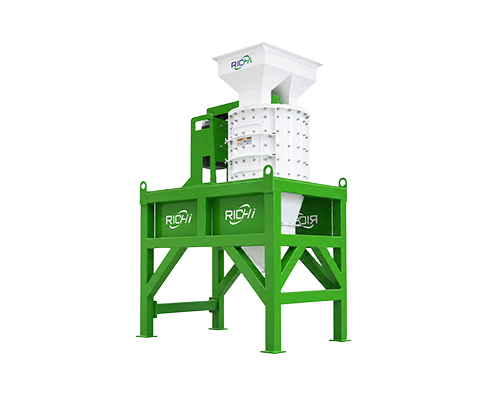

Organic Fertilizer Crushing Machine
It is used to break down and crush well-rotted organic fertilizer raw materials, whether it is high-moisture, coarse fiber manure, straw, fruit pomace, etc., and can be processed to output fine powder with a pellet size of less than 3mm.
Organic Fertilizer Mixer Machine
Its function is to uniformly stir and mix organic powders and trace elements. Most of them adopt a twin-shaft paddle structure, with two shafts rotating in opposite directions, resulting in a short mixing cycle and high uniformity.
Organic Fertilizer Cooler Machine
By utilizing the principle of countercurrent cooling, cold air is allowed to penetrate the organic fertilizer pellets from bottom to top, lowering their temperature and removing some moisture. This reduces the discharge temperature to room temperature and also increases the hardness of the pellets.
Organic Fertilizer Screening Machine
This is a commonly used piece of equipment in the production of organic fertilizer pellets. It usually adopts a multi-layer vibrating screen structure and uses high-frequency vibration to accurately separate qualified finished products that are plump and uniform in size, with a separation accuracy of up to 99.5%.
Organic Fertilizer Granulator Machine Advantages
RICHI organic fertilizer granulator machines have been delivered to over 140 countries and regions. They are widely used for processing different types of organic waste. Customers have given us good feedback. This is due to several key advantages.
Many organic materials are corrosive and abrasive. This puts high demands on the materials used in the organic fertilizer granulator machine. Our machine uses a ring die made of 42CrMo alloy steel. The surface is carburized and hardened. The hardness reaches HRC 58-62. This is more wear-resistant than ordinary stainless steel. It extends the machine’s service life.
Long Service Life
Our organic granular fertilizer making machine can handle many materials. These include fibrous materials like straw and sawdust, as well as wet, sticky materials like fruit pomace and coconut coir. You can adjust the parameters to get the ideal result. Simply change the ring die hole size and adjust the compression ratio from 1:10 to 1:18. This allows you to produce pellets from 4 to 12 mm in diameter. You can also control how dense the pellets are.
High Granulation Flexibility
Many customers care about reliable operation. Our machine frame is thickened for stable and low-vibration operation. If blockage or overload occurs, the safety pin breaks automatically. The limit switch triggers a shutdown. This protects the ring die, press rollers, and gearbox from damage. It also reduces repair costs.
Peace of Mind During Use
FAQ
After reading all the above, do you have other questions? We have gathered some common questions. They may be helpful to you. You can also contact us directly for more specific and personalized advice.
Why do the pellets produced by the organic fertilizer pellet machine easily turn into powder?
→
This is usually linked to a few factors:
① The material moisture is not suitable. Being too dry or too wet both affect pellet quality.
② The grinding fineness is insufficient. If the raw material is not ground fine enough, the larger pellets will not bind well.
③ The press roller or ring die is worn. Worn key components reduce extrusion force.
What is the organic fertilizer granulator machine price?
→
The price of a RICHI organic granulator fertilizer machine ranges from USD 7,000 to USD 100,000. We cannot give an exact price directly. We have many models, and the final price depends on several factors. We suggest you contact us. Tell us about your target capacity and your raw materials. We will recommend the right model and give you the latest price.
Also, the organic fertilizer granulator machine is just one type of fertilizer granulator. If you want to know about granulators that handle more material types, we can also make recommendations. We will provide the latest fertilizer granulator machine price as well.
When starting a fertilizer manufacturing plant, should I choose a single organic fertilizer pellet making machine or a full production line?
→
That depends on your scale.
For small-scale trials or small-batch processing, you can start with a single organic fertilizer granulator machine and add some simple auxiliary units. For a large plant that aims to produce high-quality fertilizer for sale over the long term, we recommend a complete production line. An automated setup can also save on labor costs.
What are the advantages of organic fertilizer pellets compared to powdered organic fertilizer?
→
Pellets offer several benefits over powder:
They do not create dust during transport, loading, or application. This reduces material loss.
They spread more evenly. This avoids uneven fertilizer distribution in the field.
They are dense and resist moisture. They do not clump, so they have a longer shelf life.
They look better and are more recognized in the market. They also command a higher price and are more competitive than powdered fertilizer.
What should I do if the machine breaks down during use?
→
First, RICHI performs strict quality checks before each organic fertilizer granulator machine leaves the factory. We do not sell defective products.
Every customer who buys our organic granulator fertilizer machine gets a 12-month warranty. During this period, if a malfunction occurs that is not caused by human error, you can contact us. We will check the problem and repair it free of charge.
If you want to learn more about organic fertilizer granulator machines, you can watch videos on YouTube.
